Pepperl Fuchs BF 12
Mounting flange
- MPN
- BF 12
- Category
- Accessories
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

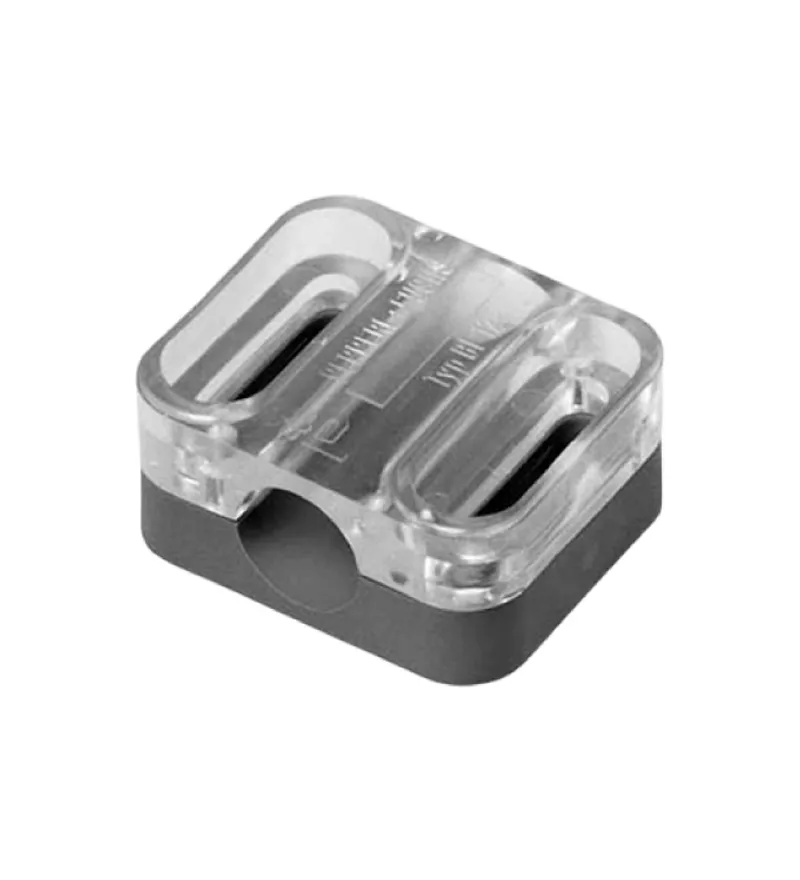

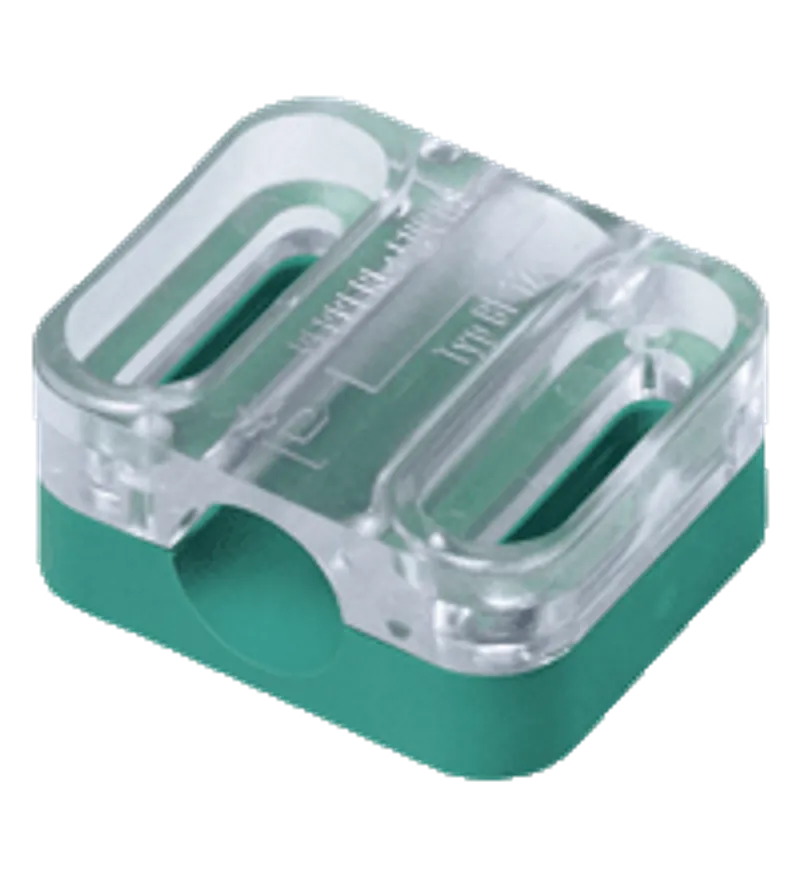

What is the Pepperl Fuchs BF 12?
Retainer for all cylindrical sensors with M12 thread
Simple installation and exact setting
Large sensing range (max. 11 mm)
Mounting flange, 12 mm, Retainer for all cylindrical sensors with M12 thread, Simple installation and exact setting, Large sensing range (max. 11 mm)
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 000049 |
| Inside diameter | 12 mm |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Ambient conditions
| Ambient temperature | -25 ... 85 °C (-13 ... 185 °F) |
Mechanical specifications
| Material | Base: Crastin/PBT (green)Upper section: PA (transparent) |
| Tightening torque, fastening screws | max. 1 Nm |

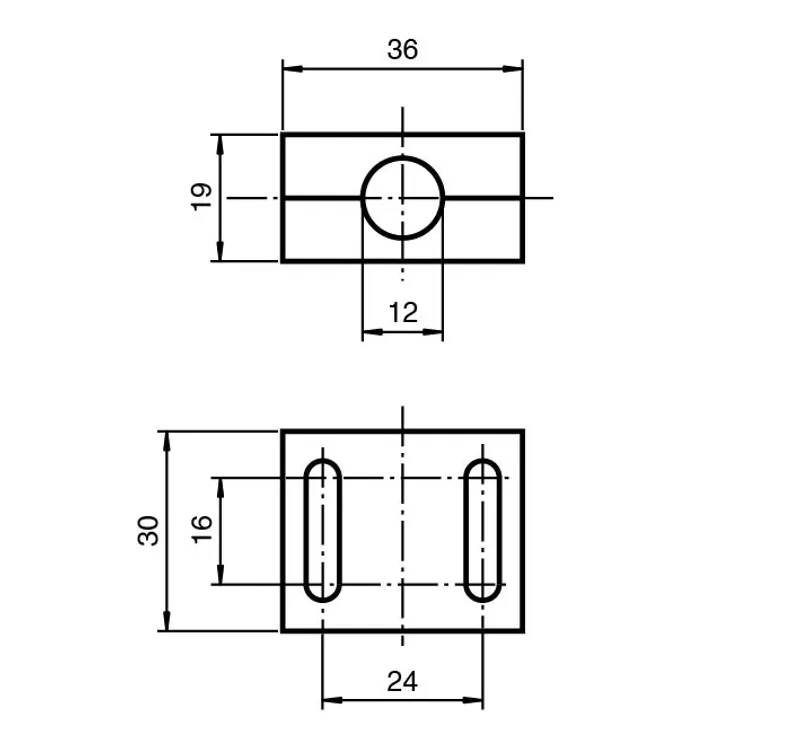

| Dimensions: Height | 19 mm |
| Dimensions: Width | 36 mm |
| Dimensions: Length | 30 mm |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
BF 12: frequently asked questions
When can BF 12 be shipped?
BF 12 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BF 12 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BF 12 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BF 12, subject to availability and destination.
