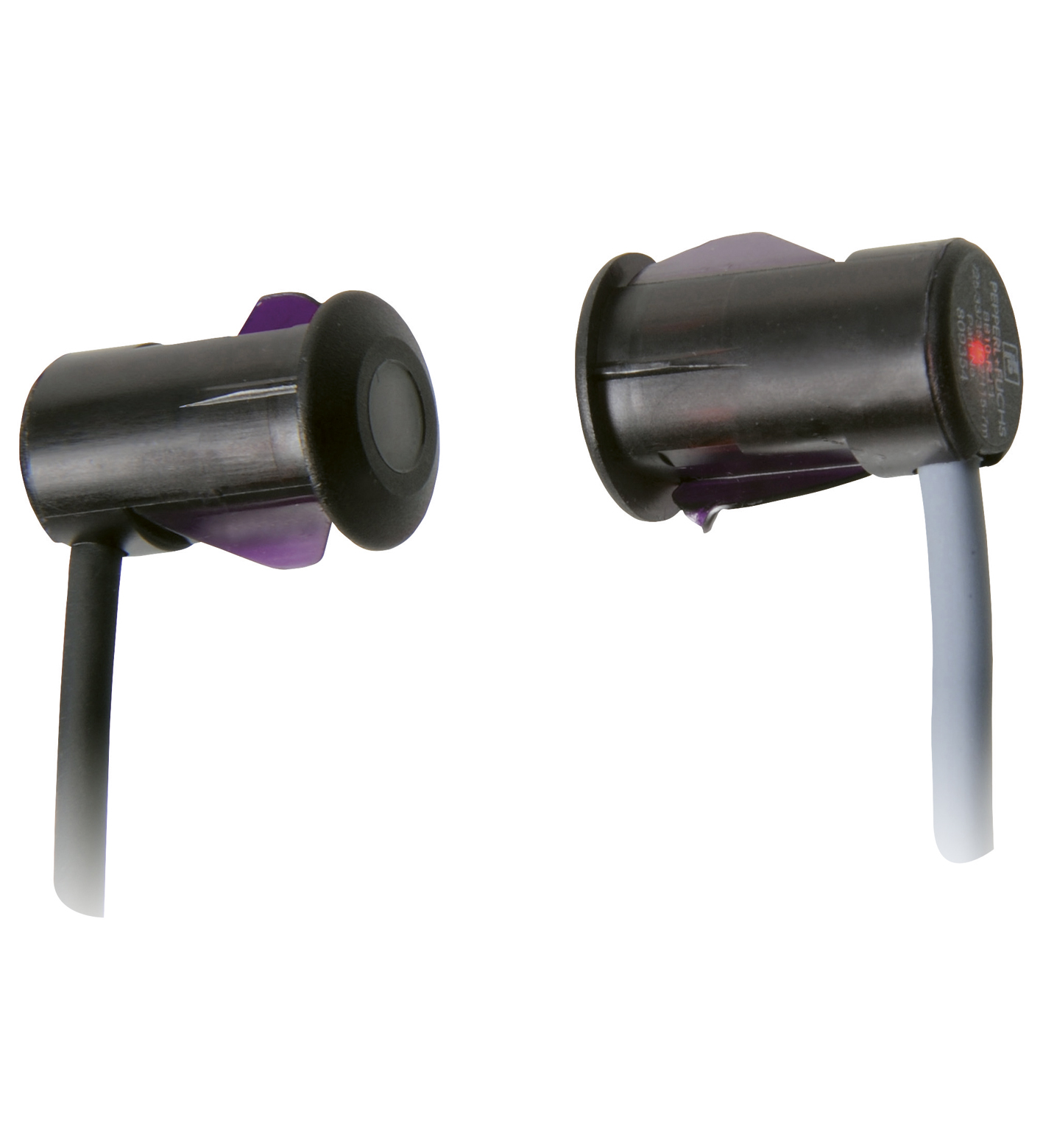

Pepperl Fuchs BB10-P/25/33/76b/102/115e – Thru-beam sensor
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Inductive Sensors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can BB10-P/25/33/76b/102/115e be shipped?
BB10-P/25/33/76b/102/115e is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BB10-P/25/33/76b/102/115e in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BB10-P/25/33/76b/102/115e and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BB10-P/25/33/76b/102/115e, subject to availability and destination.
• Single-beam miniature photoelectric sensor, ideal for installing in frames or contours
• Integrated circuit
• Plug-in style housing for 13 mm hole
• Narrow opening angle, suitable for mounting in pairs
• Light on version
• Version with test input
Single-beam miniature photoelectric sensor, ideal for installing in frames or contours, Integrated circuit, Plug-in style housing for 13 mm hole, Narrow opening angle, suitable for mounting in pairs, Light on version, Construction type(S2): Cylindrical type, flat, Test input, Light source: IRED, Light type: modulated infrared light , 880 nm, Operating voltage: 10 ... 30 V DC, Test input: emitter deactivation at 0 V, Switching type: light-on
Specifications
System components
| Order code (Pepperl+Fuchs part number) | 811259 |
| Emitter | BB10-T/33/76b/115e |
| Receiver | BB10-R/25/33/102/115e |
| Lifecycle | Active (current Pepperl+Fuchs product) |
General specifications
| Effective detection range | 0 ... 6 m |
| Threshold detection range | 8 m |
| Light source | IRED |
| Light type | modulated infrared light , 880 nm |
| Diameter of the light spot | approx. 1300 mm at a distance of 6 m |
| Opening angle | Emitter: +/- 8 ° Receiver: +/- 10 ° |
| Optical face | frontal |
| Ambient light limit | halogen light 100000 Lux ; according to EN 60947-5-2:2007 |
| Accessories provided | 7 m PVC cable with 3-pin JST connector |
Functional safety related parameters
| MTTFd | 795 a |
| Mission Time (TM) | 20 a |
| Diagnostic Coverage (DC) | 0 % |
Indicators/operating means
| Function indicator | LED red: lights up when receiving the light beam ; flashes when falling short of the operating reserve; OFF when light beam is interrupted |
Electrical specifications
| Operating voltage | 10 ... 30 V DC UB |
| No-load supply current | Emitter: ≤ 20 mA Receiver: ≤ 10 mA I0 |
Input
| Test input | emitter deactivation at 0 V |
Output
| Switching type | light-on |
| Signal output | 1 NPN output, short-circuit protected, reverse polarity protected, open collector |
| Switching voltage | max. 30 V DC |
| Switching current | max. 100 mA |
| Voltage drop | ≤ 1.5 V DC Ud |
| Switching frequency | 62.5 Hz f |
| Response time | 8 ms |
Conformity
| Product standard | EN 60947-5-2 |
Approvals and certificates
| CCC approval | CCC approval / marking not required for products rated ≤36 V |
| UN/ECE Regulation No. 10 (E1) | Type-approval number: 036938 |
Ambient conditions
| Ambient temperature | -40 ... 60 °C (-40 ... 140 °F) , fixed installation -20 ... 60 °C (-4 ... 140 °F) , movable |
| Storage temperature | -40 ... 70 °C (-40 ... 158 °F) |
| Relative humidity | 90 % , non-condensing |
Mechanical specifications
| Degree of protection | IP67 |
| Connection | 0.15 m cable with 3-pin JST connector Receiver: grey ; Emitter: black |
| Material: Housing | PC , black |
| Material: Optical face | Plastic pane |
| Mass | approx. 100 g per device |
| Dimensions: Length | 22 mm |
| Dimensions: Diameter | 12.5 mm |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet BB10-P/25/33/76b/102/115e | |
| Instruction Manual | PDF · 150 kB |
| Commissioning Instructions | PDF · 459 kB |

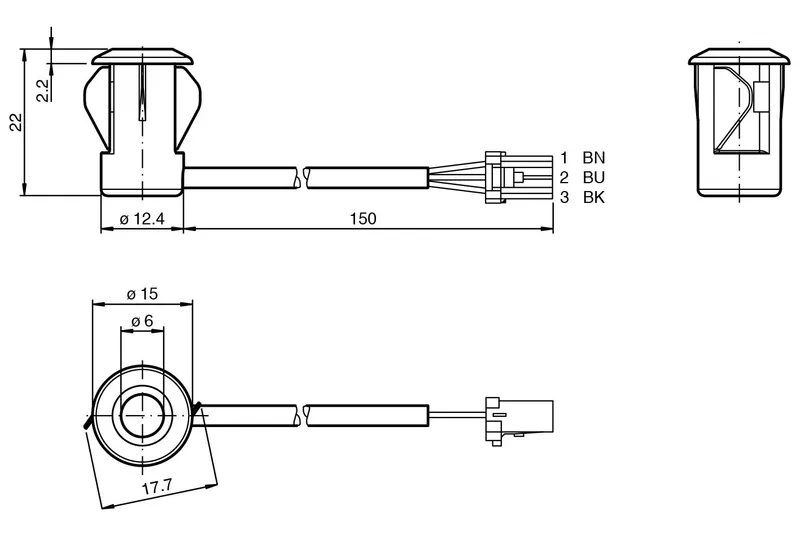

CAD & dimension drawings
| 3-D model (STEP) BB10-P-F1/35/59/103/115a | STP · 786 kB |
Certificates (3)
| UNECE KBA E1 (E1 10R - 036938) | PDF · 154 kB |
| UK Declaration of Conformity (Pepperl+Fuchs) | PDF · 233 kB |
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 310 kB |
