Pepperl Fuchs AD.*.*.*.*.*
Adapter
- MPN
- AD.*.*.*.*.*
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Pepperl Fuchs AD.*.*.*.*.*?

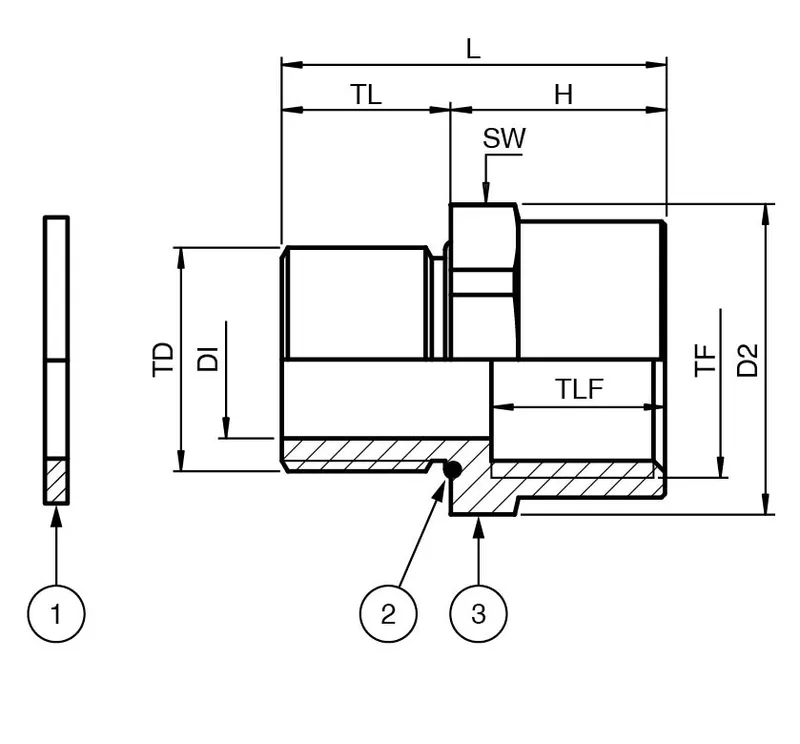

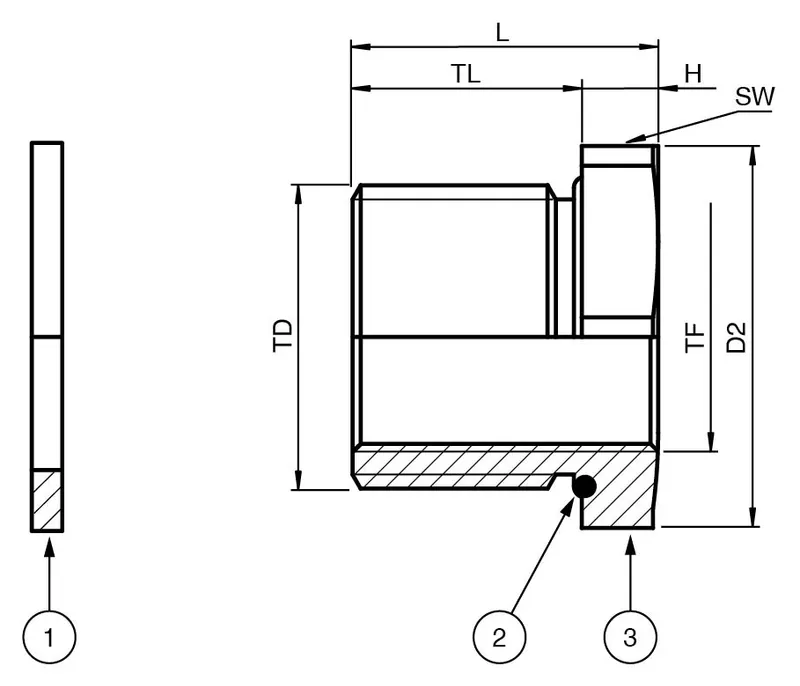

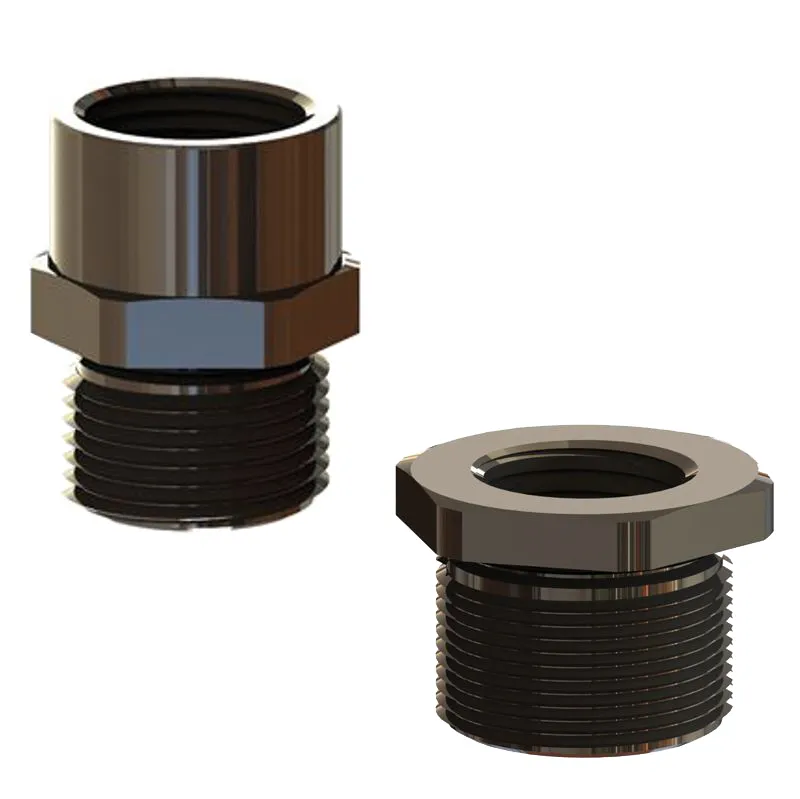

Adapter male thread metric to female thread metric
Adapter male thread metric to female thread NPT
Metric and NPT versions available
Brass nickel-plated or stainless steel
Ex db, Ex eb and Ex tb certified
Suitable for operation in Zone 1, Zone 2, Zone 21 and Zone 22
Adapter male thread metric to female thread metric, Adapter male thread metric to female thread NPT, Metric and NPT versions available, Brass nickel-plated or stainless steel, Ex db, Ex eb and Ex tb certified, Suitable for operation in Zone 1, Zone 2, Zone 21 and Zone 22
Specifications
Mechanical specifications
| Order code (Pepperl+Fuchs part number) | T180359 |
| Thread type | metric ISO pitch 1.5 mm or NPT ANSI ASME B1.20.1 |
| Thread size (TD) | see data table |
| Thread type female | metric ISO pitch 1.5 mm or NPT ANSI ASME B1.20.1 |
| Thread size female (TF) | see data table |
| Degree of protection | IP66 / IP68 |
| Material: Finish | inherent color silver |
| Material: Washer gasket | aramid fibers bonded with NBR |
| Material: Adapter | brass nickel-plated or AISI 316 (1.4401) stainless steel |
| Material: O-Ring | chloroprene / neoprene or silicone |
| Mass | see data table |
| Dimensions | see data table |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Ambient conditions
| Ambient temperature | chloroprene O-ring: -40 ... 100 °C (-40 ... 212 °F) silicone O-ring: -60 ... 130 °C (-76 ... 266 °F) washer gasket: -40 ... 80 °C (-40 ... 176 °F) Service temperature might be limited by the use of O-rings or washer gaskets. |
Data for application in connection with hazardous areas
| EU-type examination certificate | CESI 15 ATEX 029X |
| Marking | II 2 GD Ex db IIC Gb Ex eb IIC Gb Ex tb IIIC Db |
International approvals
| IECEx approval | IECEx CES 15.0006X |
| UKCA approval | CML 22 UKEX 1267X |
| CCoE approval | PESO A/P/HQ/KA/104/5579 (P420366) |
| CCC approval | 2021312313000345 |
Conformity
| Degree of protection | EN 60529 |
| CE marking | 0102 |
General information
| Scope of delivery | K01 - metric variants, individual component: Adapter , washer gasket , locknut , Brief instructions K01 - NPT variants, individual component: Adapter , washer gasket , locknut , Brief instructions Knn - packing unit with multiple components: Adapter , Brief instructions (1 copy) |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
