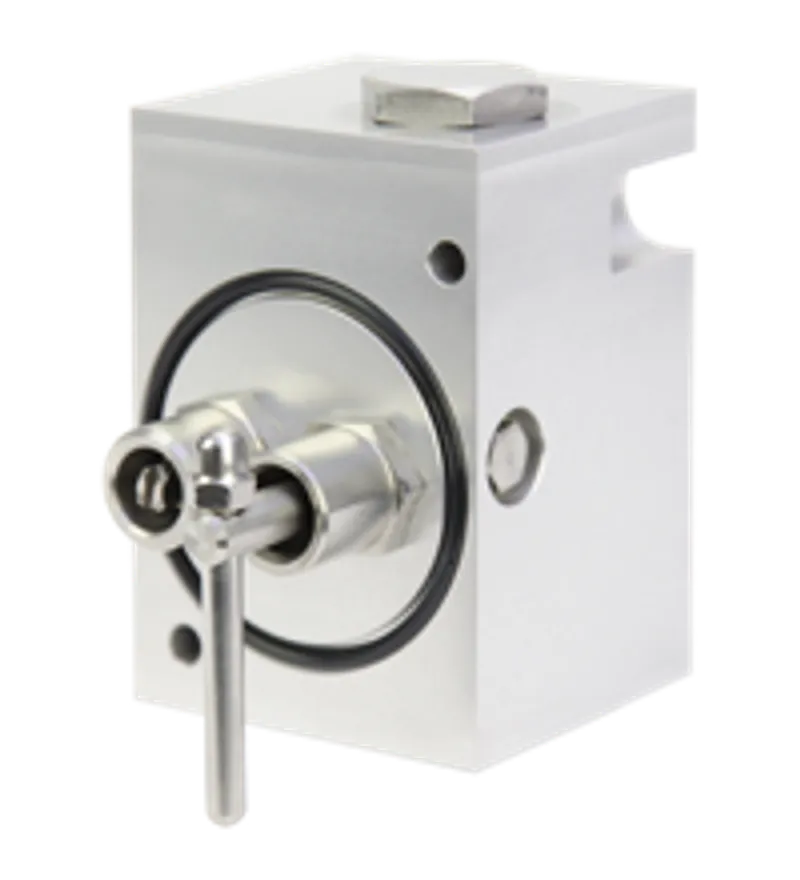

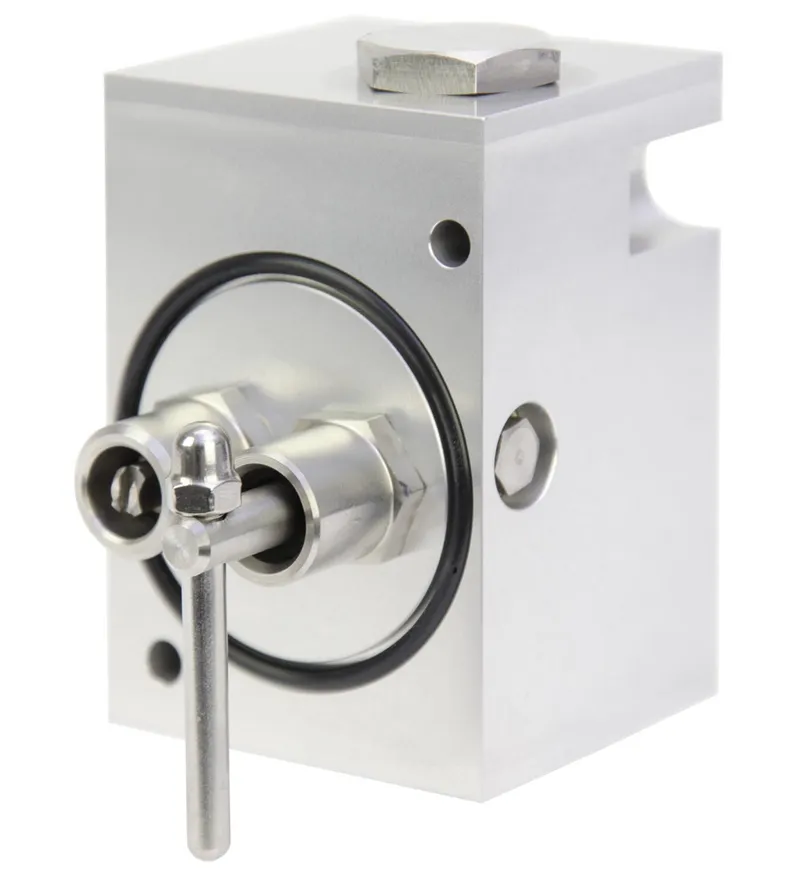

Pepperl Fuchs 7500-MAN-MV-01 – 7500 series manifold
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Purge and Pressurization System (Type Z) |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 7500-MAN-MV-01 be shipped?
7500-MAN-MV-01 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 7500-MAN-MV-01 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 7500-MAN-MV-01 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 7500-MAN-MV-01, subject to availability and destination.
• Low cost, compact design, easy to use
• Manual valve, no electrical power requirement
• Rugged, corrosion-resistant housing
• Purge and pressurization valving in one device
7500 series purge and pressurization system manual manifold
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 516106 |
| Equipment architecture | max. enclosure size 450 ft3 (12.7 m3) |
| Series | 7500 |
| System | Type Z Purge ; Ex pzc Purge |
| Hazardous environment | gas or dust |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Pneumatic parameters
| Protective gas supply | compressed air or inert gas, 5 µm filter, free from oil |
| Pressure requirement | 10 ... 120 psig (0.7 ... 8.2 bar) |
| Purge flow rate | pressurization valve : Cv (flow coefficient) = 0.4 purging valve : Cv (flow coefficient) = 1.4 |
| Connections | inlet/outlet : 1/2 inch NPTF |
Ambient conditions
| Ambient temperature | -40 ... 70 °C (-40 ... 158 °F) |
| Storage temperature | -40 ... 80 °C (-40 ... 176 °F) |
Mechanical specifications
| Degree of protection | Type 4X / IP66 |
| Material | Gasket material : Bisco® HT-800 medium cellular silicone |
| Mass | < 1.8 kg (4 lb) |

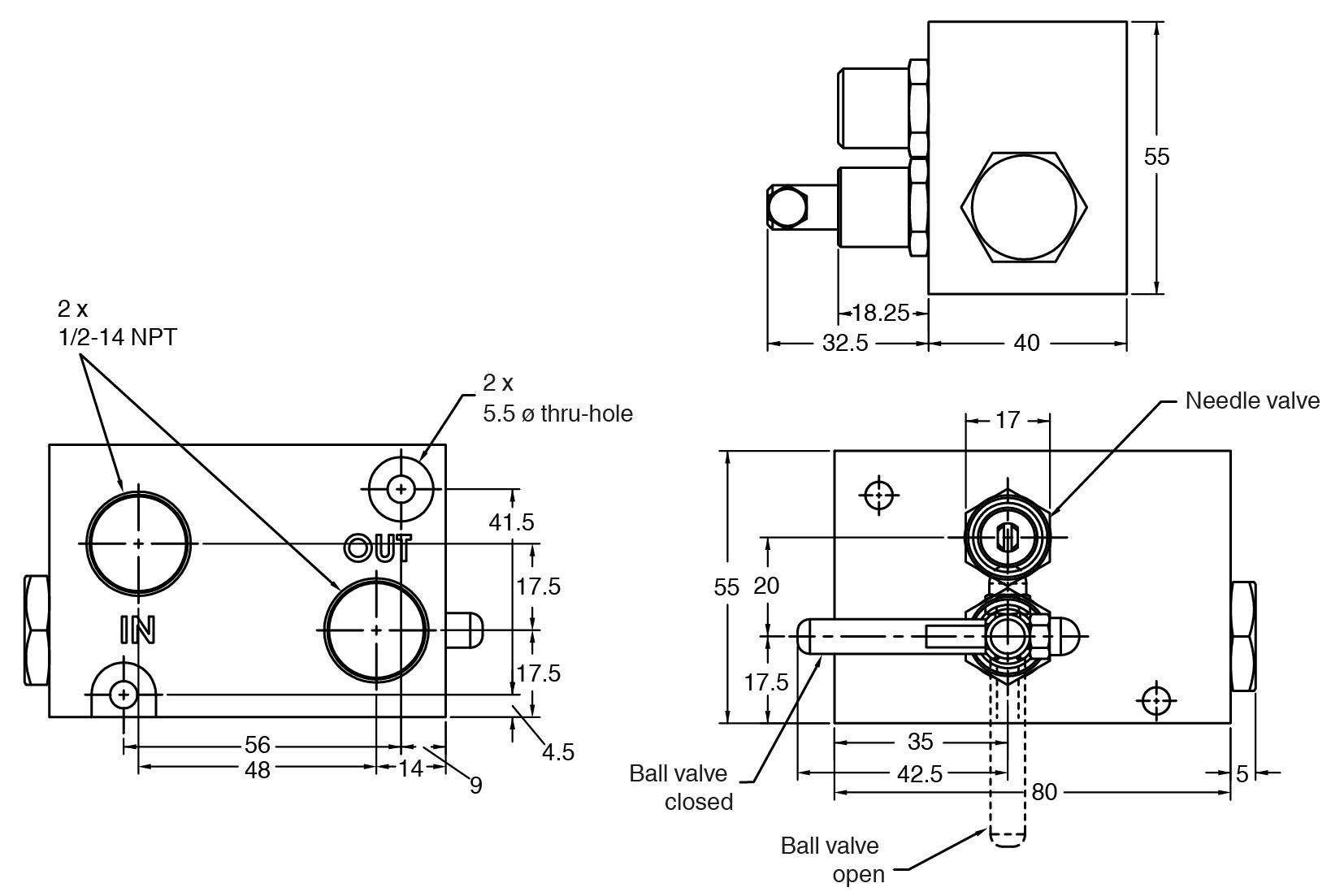

| Dimensions | see dimensions |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet 7500-MAN-MV-01 |
More Pepperl Fuchs parts

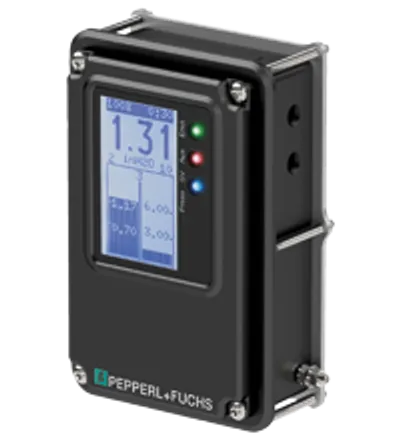

Available on request7500 Series Control Unit, Type Z and Ex pzc 7500-01-AA-STD-UNV-PNO

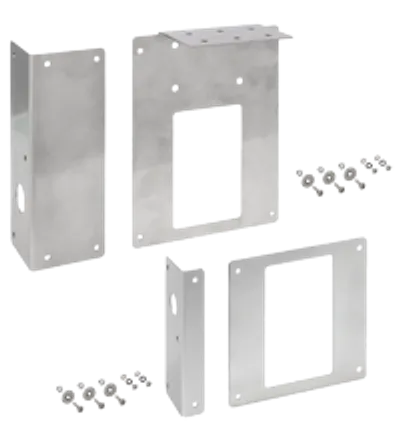

Available on request7500 Series Control Unit mounting brackets 7500-ACC-BKT-*

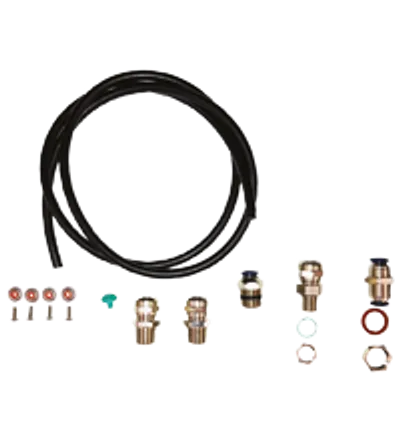

Available on request7500 Series hardware fittings kit 7500-ACC-KIT-01

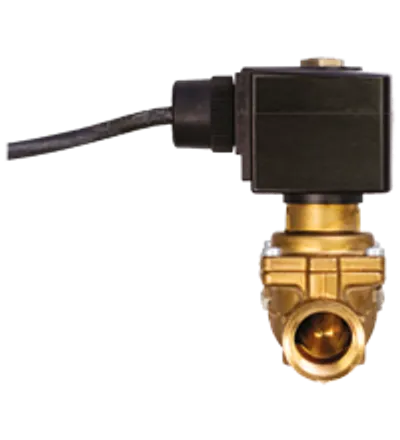

Available on request7500 Series manifold 7500-MAN-BK-**-*
