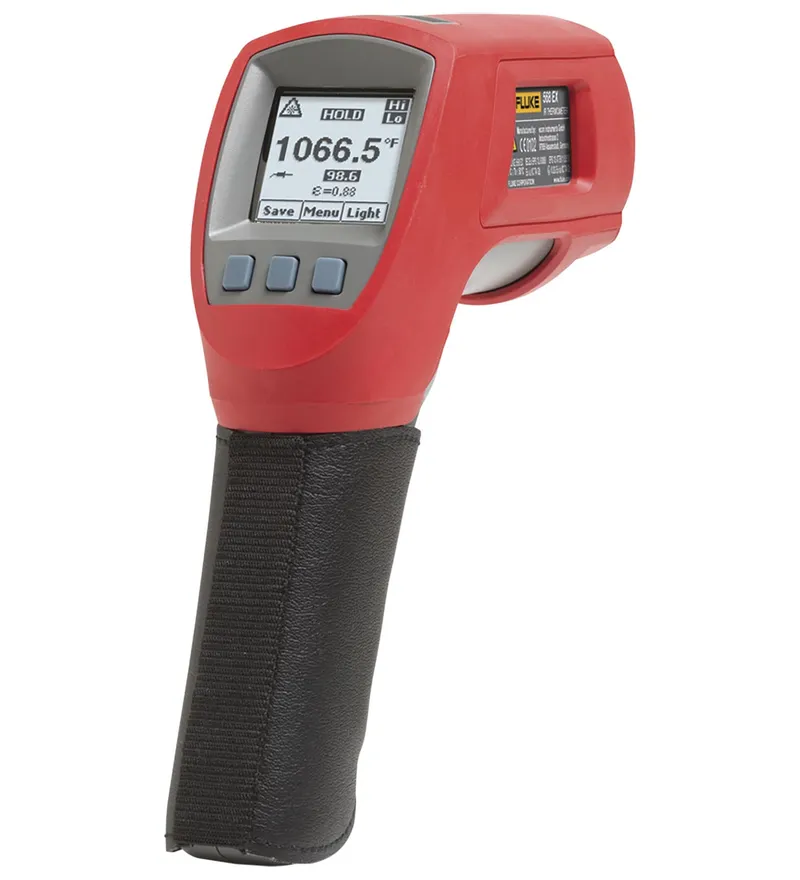

Intrinsically safe infrared thermometer 568 EX ATEX / IEx — photo 2 of 2

Available on request

Pepperl Fuchs 568 EX ATEX / IEx – Intrinsically safe infrared thermometer

MPN: 568 EX ATEX / IEx · Brand: Pepperl Fuchs

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Digital Multimeters
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 568 EX ATEX / IEx be shipped?

568 EX ATEX / IEx is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 568 EX ATEX / IEx in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 568 EX ATEX / IEx and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 568 EX ATEX / IEx, subject to availability and destination.

• Precise measurements with accuracy

• Easily measure hard-to-reach objects

• Measurements from Zone 1 into Zone 0

• Measurements of moving materials

• Easy emissivity adjustment

• Data logging up to 99 points

• 6 languages available

Fluke 568 EX, ATEX / IEx

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	70143714
Function	Min/Max/Average/Difference value
Measuring range: Temperature	-40 ... 800 °C (-104 ... 1,472 °F)
Lifecycle	Active (current Pepperl+Fuchs product)

Hardware

Internal data memory

Up to 99 points with time and date

Indicators/operating means

Display: Resolution

0.1 °C / 0.1 °F

Electrical specifications

Battery type	2x AAA, type approved
Operating duration	4 h (continuous operation)

Function and system design

Measuring principle	Infrared
Distance to measuring spot size	50:1 (D:S)
Measuring spot marking	Single-point laser
Infrared range	8 ... 14 µm
Emissivity adjustment	0.10 to 1.00 (step size 0.01)

Measurement accuracy

Accuracy	> 0 °C ±1 °C or 1% whichever is greater
Response time	< 500 ms

Ambient conditions

Ambient temperature

0 ... 50 °C (32 ... 122 °F)

Mechanical specifications

Mass	approx. 365 g
Dimensions	175 mm x 166 mm x 55 mm

Data for application in connection with hazardous areas

ATEX approval: ATEX certificate	EPS 13 ATEX 1 525 X
ATEX approval: ATEX marking	II 2G Ex ia op is IIC T4 Gb

International approvals

INMETRO approval: INMETRO certificate	TÜV 24.1259 X
INMETRO approval: INMETRO marking	Ex ia op is IIC T4 Gb 0 °C ... Tamb ... +50 °C

General information

Scope of delivery

Fluke 568 EX Batteries Leather grip Carrying case Thermocouple probe type K Documentation

Downloads & documentation

Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.

Data sheets & manuals

Datasheet 568 EX ATEX / IEx

PDF

Certificates (4)

TUV Rheinland Brazil (TÜV 24.1259 X)	PDF · 433 kB
EU Declaration of Conformity (Pepperl+Fuchs)	PDF · 226 kB
UK Declaration of Conformity (Pepperl+Fuchs)	PDF · 205 kB
Bureau Veritas ATEX (EPS 13 ATEX 1 525 X)	PDF · 1.2 MB
