Pepperl Fuchs 42308A – Female connector, field-attachable
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Field-Attachable Connectors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 42308A be shipped?
42308A is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 42308A in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 42308A and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 42308A, subject to availability and destination.
• Field-attachable, shieldable
• Metal housing
• Solder connection

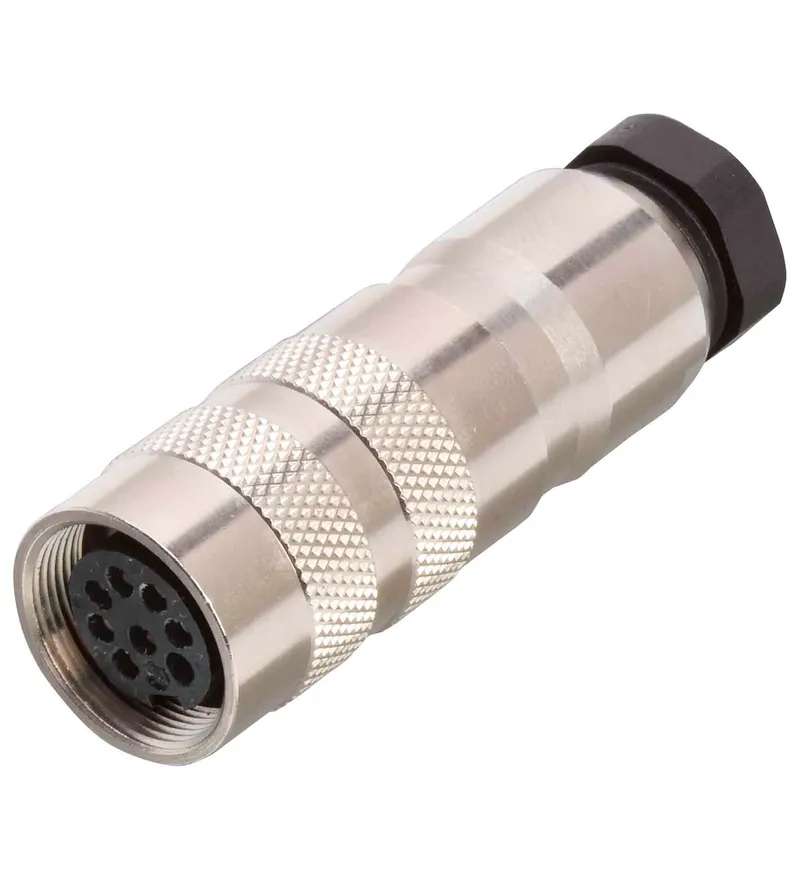

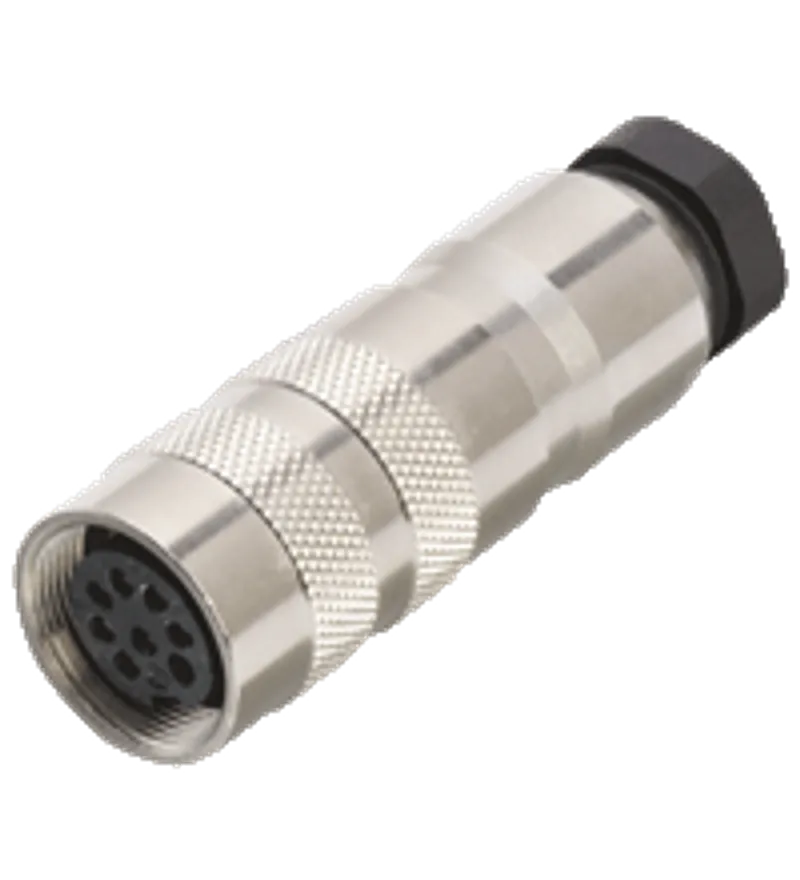

Female connector M16 straight 8-pin, for cable diameter 6 - 8 mm, shielded, field-attachable, solder connection
Specifications
General specifications
| Order code (Pepperl+Fuchs part number) | 044998 |
| Connector 1: Connection | socket |
| Connector 1: Construction type | M16 |
| Connector 1: Style | straight |
| Connector 1: Locking | screw connection |
| Connector 1: Number of pins | 8 |
| Lifecycle | Active (current Pepperl+Fuchs product) |
Electrical specifications
| Operating voltage | max. 30 V DC UB |
| Operating current | max. 2 A IB |
| Overvoltage category | I |
| Insulation material group | III |
| Insulation resistance | min. 10000 MΩ |
Conformity
| Degree of protection | EN 60529 |
| Plug connection | connector M16 x 0.75 : IEC 61076-2-106 |
| Flammability | UL 94 |
Ambient conditions
| Ambient temperature | -30 ... 95 °C (-22 ... 203 °F) |
| Pollution degree | 1 |
Mechanical specifications
| Plug connector: Tightening torque | 0.6 Nm |
| Plug connector: Tool installation | cross-hatched knurling |
| Plug connector: Mating cycles | min. 500 |
| Plug connector: Shielding | shielding ring |
| Degree of protection | IP67 / IP68 |
| Connection | Solder connection for max. 0.75 mm2 / AWG 18 |
| Cable: Sheath diameter | 6 ... 8 mm |
| Cable: Core cross section | 0.75 mm2 / 18 AWG max. |
| Mass | 51 g |
Material
| Plug connector: Screw connection | CuZn, nickel-plated |
| Plug connector: Body | CuZn, nickel-plated |
| Plug connector: Contact surface | silver-plated (Ag) |
| Plug connector: Flammability | V-0 |
Downloads & documentation
Official documents from Pepperl Fuchs, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet 42308A |

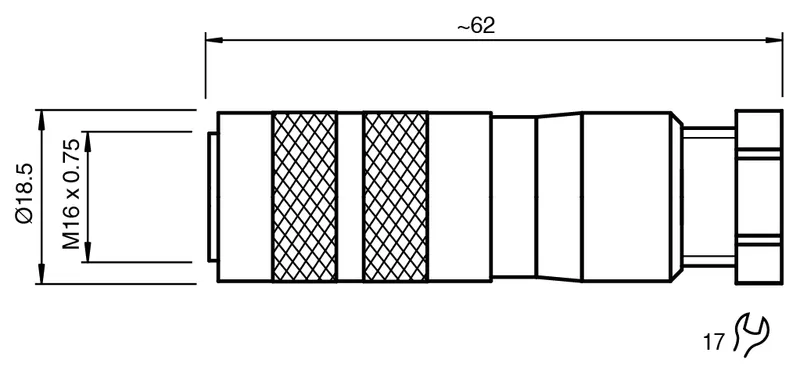

CAD & dimension drawings
| 3-D model (STEP) 42308A | STP · 166 kB |
Certificates (1)
| EU Declaration of Conformity (Pepperl+Fuchs) | PDF · 262 kB |
More Pepperl Fuchs parts

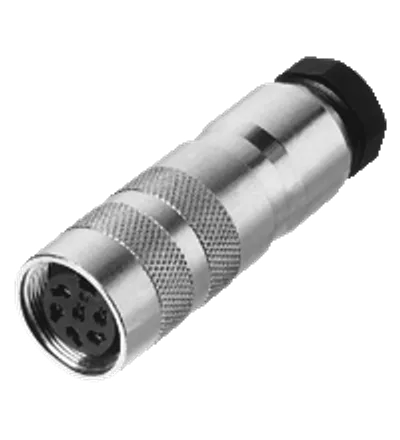

Available on requestFemale connector, field-attachable 42306A

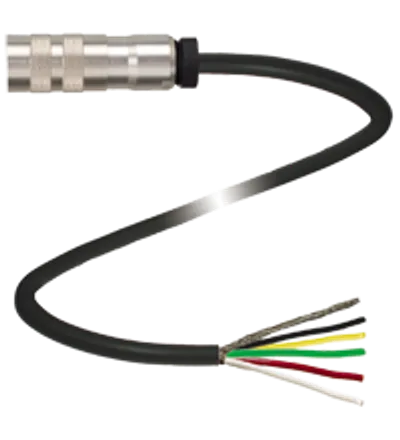

Available on requestFemale cordset 42306A-05M-05P-RVI50/78Available on requestFemale cordset 42306A-15M-05P-RVI50/78

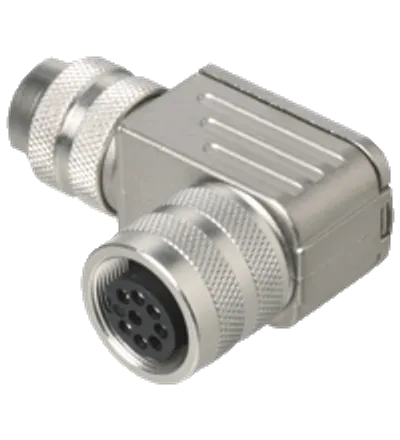

Available on requestFemale connector, field-attachable 42308B

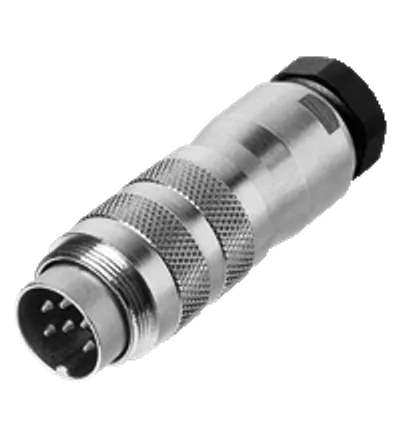

Available on requestCable connector 42308C
