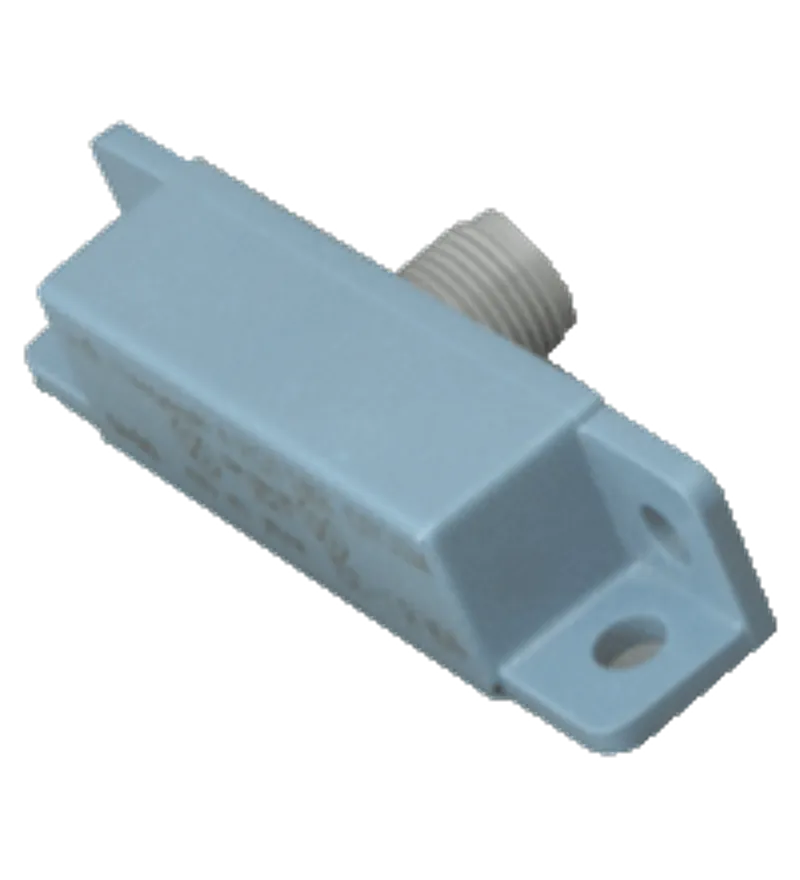

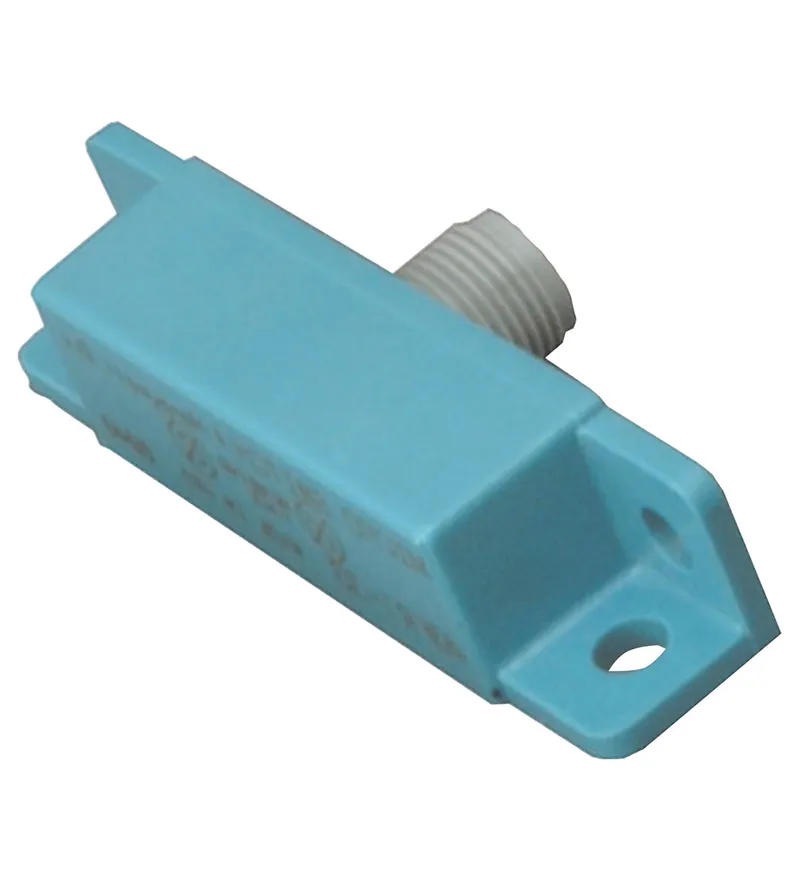

Pepperl Fuchs 40FR1-33
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Magnetic Field Sensors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 40FR1-33 be shipped?
40FR1-33 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 40FR1-33 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 40FR1-33 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 40FR1-33, subject to availability and destination.
Magnetic field sensor. Switching function: Normally open (NO), Output type: Reed Contact, Installation: non-flush, Output polarity: AC/DC, Output type: 2-wire AC/DC, Construction type: Rectangular, Series: Rectangular -Magnetic Prox. Switches, Threading: without, Operating voltage: 100 V DC, 250 mA 115 V AC, 250 mA, Connection type: Connector plug, Housing material: Polycarbonate, Degree of protection: IP68. Switching function: Normally open (NO). Output type: Reed Contact. Rated operating distance: 19.8 mm. Installation: non-flush. Output polarity: AC/DC. Output type: 2-wire AC/DC. Mechanical life: 3 x 107 operations. Operating voltage: 100 V DC, 250 mA 115 V AC, 250 mA. Hysteresis: typ. 12 % ( 2.54 mm ). Contact resistance: 0.15 Ω. Insulation resistance: min. 100 MΩ at 200 V. Dielectric strength: 200 V AC, 60 Hz. Release point: ≤ max. 43 mm. Electrical rating: AC supply: 10 VA, 132 V AC, 750 mA DC supply: 10 W, 100 V DC, 300 mA. Ambient temperature: -40 ... 125 °C (-40 ... 257 °F). Connection type: Connector plug. Housing material: Polycarbonate. Sensing face: Polycarbonate. Degree of protection: IP68. Connector: . ThreadingM12 x 1Number of pins4: . Threading: M12 x 1. Number of pins: 4. Dimensions: . Width16 mmDepth16 mmLength74.2 mm: . Width: 16 mm. Depth: 16 mm. Length: 74.2 mm
Specifications
General specifications
| Switching function | Normally open (NO) |
| Output type | Reed Contact |
| Rated operating distance | 19.8 mm sn |
| Installation | non-flush |
| Output polarity | AC/DC |
| Output type | 2-wire AC/DC |
| Mechanical life | 3 x 107 operations |
Nominal ratings
| Operating voltage | 100 V DC, 250 mA 115 V AC, 250 mA UB |
| Hysteresis | typ. 12 % ( 2.54 mm ) H |
| Contact resistance | 0.15 Ω |
| Insulation resistance | min. 100 MΩ at 200 V |
| Dielectric strength | 200 V AC, 60 Hz |
| Release point | ≤ max. 43 mm |
Electrical specifications
| Electrical rating | AC supply: 10 VA, 132 V AC, 750 mA DC supply: 10 W, 100 V DC, 300 mA |
Ambient conditions
| Ambient temperature | -40 ... 125 °C (-40 ... 257 °F) |
Mechanical specifications
| Connection type | Connector plug |
| Housing material | Polycarbonate |
| Sensing face | Polycarbonate |
| Degree of protection | IP68 |

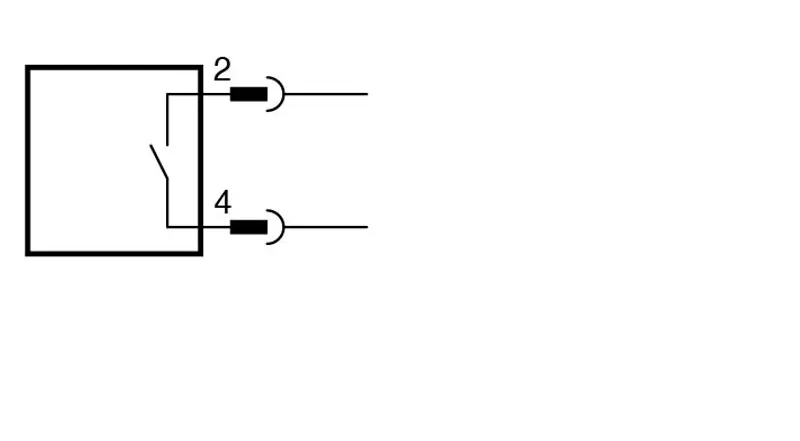

| Connector | |
| ThreadingM12 x 1Number of pins4 | Threading |
| Threading | M12 x 1 |
| Number of pins | 4 |

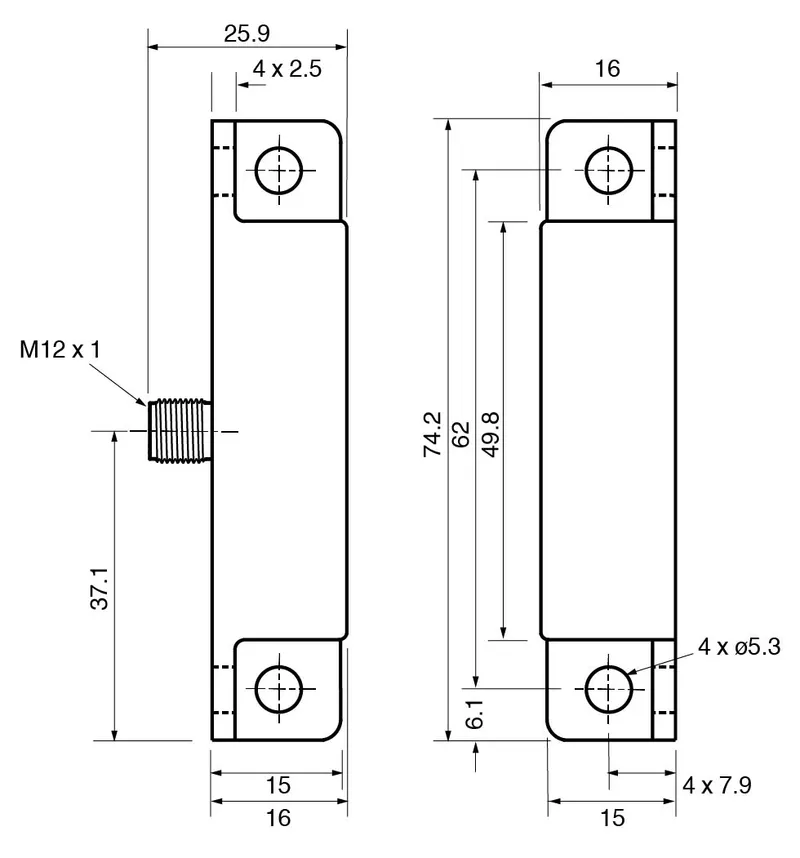

| Dimensions | |
| Width16 mmDepth16 mmLength74.2 mm | Width |
| Width | 16 mm |
| Depth | 16 mm |
| Length | 74.2 mm |
