Pepperl Fuchs 20FR1-6B
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Magnetic Field Sensors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 20FR1-6B be shipped?
20FR1-6B is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 20FR1-6B in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 20FR1-6B and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 20FR1-6B, subject to availability and destination.

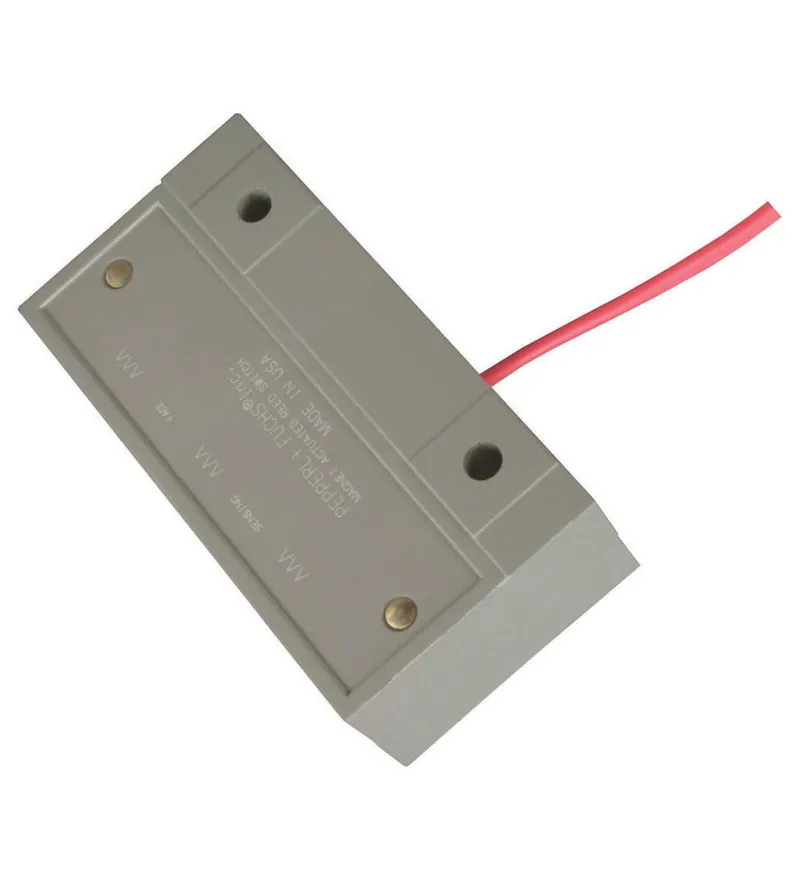

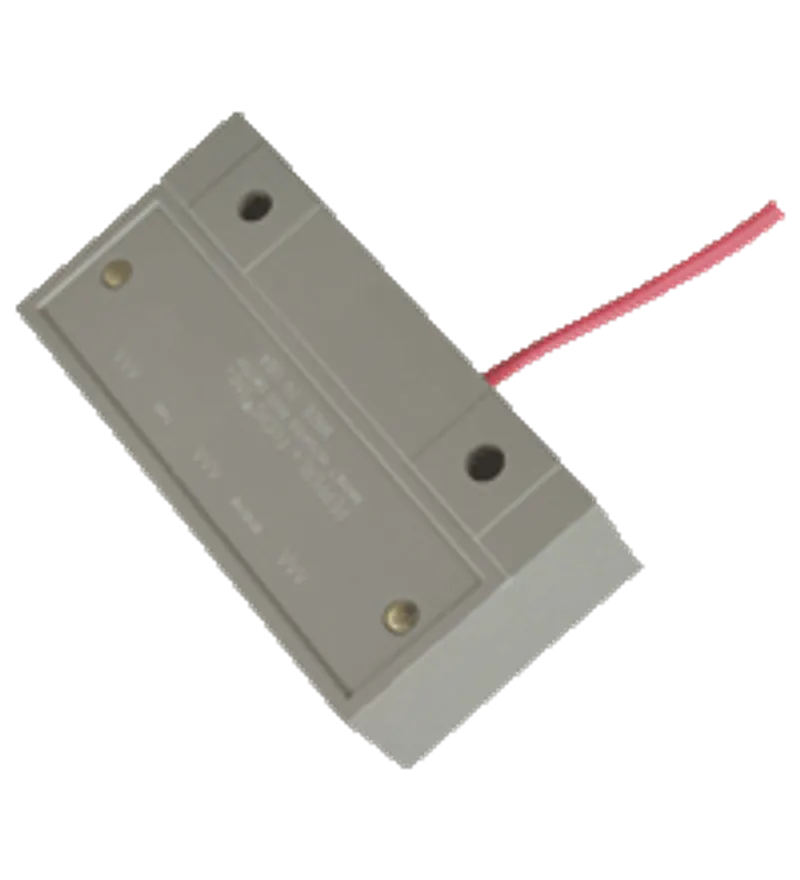

Magnetic field sensor. Switching function: Normally open (NO), Output type: Reed Contact, Installation: non-flush, Output type: Reed Contact Normally Open, Construction type: Rectangular, Series: Rectangular type, Threading: without, Operating voltage: 250 V DC, 1.0 A max, 15 W, Connection type: cable, Housing material: Aluminum, Degree of protection: IP68. Switching function: Normally open (NO). Output type: Reed Contact. Rated operating distance: 61 mm. Installation: non-flush. Output type: Reed Contact Normally Open. Mechanical life: 1 x 107 switching cycles. Operating voltage: 250 V DC, 1.0 A max, 15 W. Hysteresis: typ. 25 % ( 15.2 mm ). Release point: ≤ max. 76 mm. Ambient temperature: -25 ... 85 °C (-13 ... 185 °F). Connection type: cable. Core cross section: 16 AWG. Housing material: Aluminum. Sensing face: Aluminum. Degree of protection: IP68. Material: . Activation target21FR1-B: . Activation target: 21FR1-B. Cable: . MaterialPVCLengthL1.83 m: . Material: PVC. Length: 1.83 m. Dimensions: . Width107.9 mmLength55.6 mm: . Width: 107.9 mm. Length: 55.6 mm
Specifications
General specifications
| Switching function | Normally open (NO) |
| Output type | Reed Contact |
| Rated operating distance | 61 mm sn |
| Installation | non-flush |
| Output type | Reed Contact Normally Open |
| Mechanical life | 1 x 107 switching cycles |
Nominal ratings
| Operating voltage | 250 V DC, 1.0 A max, 15 W UB |
| Hysteresis | typ. 25 % ( 15.2 mm ) H |
| Release point | ≤ max. 76 mm |
Ambient conditions
| Ambient temperature | -25 ... 85 °C (-13 ... 185 °F) |
Mechanical specifications
| Connection type | cable |
| Core cross section | 16 AWG |
| Housing material | Aluminum |
| Sensing face | Aluminum |
| Degree of protection | IP68 |
| Material | |
| Activation target21FR1-B | Activation target |

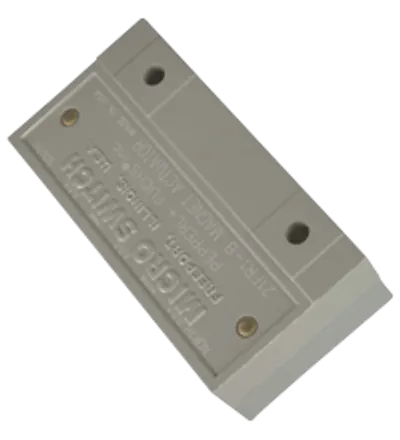

| Activation target | 21FR1-B |
| Cable | |
| MaterialPVCLengthL1.83 m | Material |
| Material | PVC |
| Length | 1.83 m L |

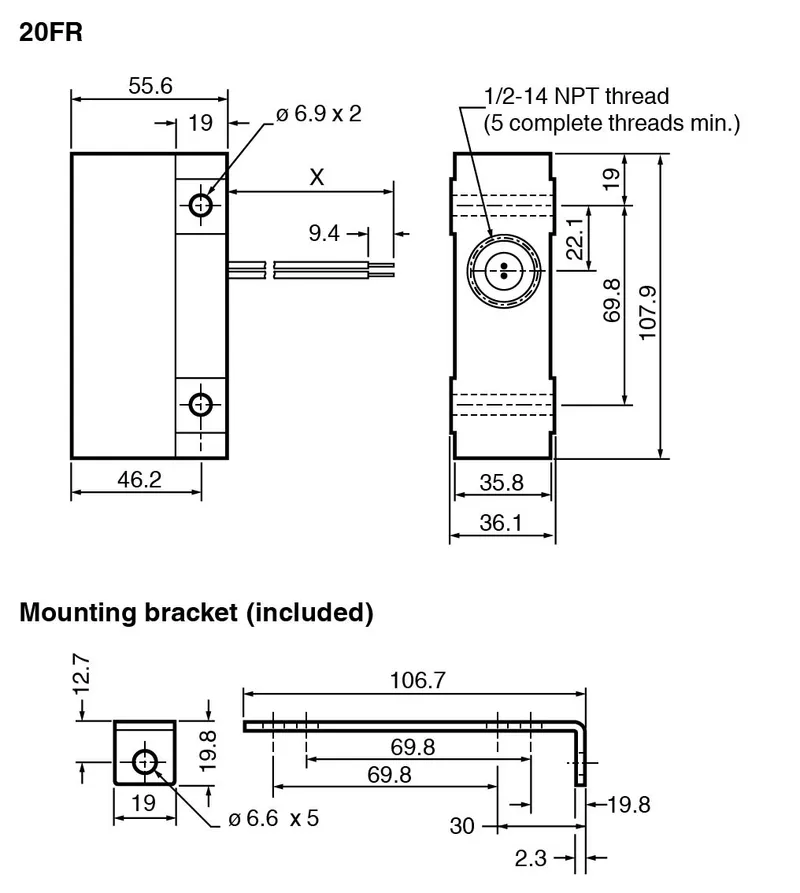

| Dimensions | |
| Width107.9 mmLength55.6 mm | Width |
| Width | 107.9 mm |
| Length | 55.6 mm |
