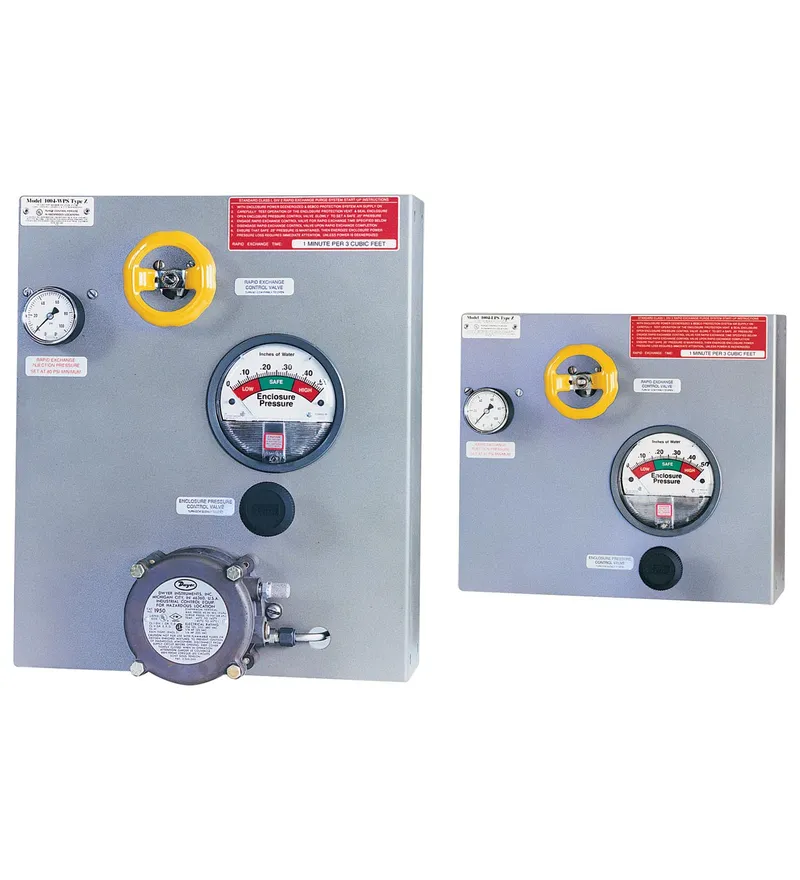

1004 Series control unit, Type Y and Z 1004 — photo 2 of 2

Available on request

Pepperl Fuchs 1004 – 1004 Series control unit, Type Y and Z

MPN: 1004 · Brand: Pepperl Fuchs

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Purge and Pressurization System (Type Z)
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 1004 be shipped?

1004 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1004 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1004 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1004, subject to availability and destination.

• NFPA 70, NFPA 496, ISA 12.4 standards

• Optional alarm output indicates air lock failure

• Type Y system certified for Class I, Division 1 to Division 2

• Type Z system certified for Class I, Division 2 to nonhazardous

• Enclosure volume up to 200 ft3

Type Y & Z pressurization system for Class I areas

Specifications

General specifications

Order code (Pepperl+Fuchs part number)	T156423
Series	1004
System	Type Y Purge , Type Z Purge
Hazardous environment	gas
Lifecycle	Active (current Pepperl+Fuchs product)

Electrical specifications

Connection

Terminal blocks

Output

Output I	-WPS-
Output type	Switch contacts
Contact loading	120 VAC @ 15 A
Output II	-WPSA-
Output type	Switch contacts
Contact loading	120/220 VAC; 24 VDC @ 10 A; 125 VDC @ 50 mA power requirements: 24 / 120 / 240 VDC @ 3 / 4 / 11 watts

Pneumatic parameters

Protective gas supply	instrument grade air or inert gas
Pressure requirement	80 - 120 psi
Safe pressure	Setpoint: 0.25" (6.35 mm) Flow rate: 0.1 - 3.5 SCFH (2.8 - 99 l /hr)

Operating conditions

Process conditions: Capacity and filtration	8.5 oz @ 40 µ
Process conditions: Exchange pressure	3" - 5"
Process conditions: Exchange flow rate	30 SCFM / 1800 SCFH (With regulator set to 80 psi min during exchange)
Process conditions: Exchange time	1 min / 7.5 ft3

Ambient conditions

Ambient temperature

-29 ... 49 °C (-20.2 ... 120.2 °F)

Mechanical specifications

Connection type	System supply port: 1/2" FPT Enclosure supply fitting: 1/2" tube fitting Enclosure reference fitting: 1/4" tube Switch conduit port size: 1/2" FPT
Material	Filter regulator body: zinc w/enamel finish Regulator handle & bowl: polycarbonate Enclosure pressure gauge: alum. w/enamel finish Rapid Exchange® gauge: poly case and brass tube Tube fittings & valves: 316 ss forged body Tubing: 316 ss 1/4" & 1/2" .035 welded System nameplate: silk screened Lexan® & ss Fastener hardware: alum. & stainless steel Mounting plate: 316 14 ga #3 brush ss EXP pressure switch body: anodized cast aluminum Enclosure warning nameplate: silk screened stainless steel
Mass	1004-LPS-* 6.8 kg (15 lb) 1004-WPS* 10.4 kg (23 lb)

International approvals

FM approval	Type Y LPS: Class I, Division 1, Groups A, B, C, D WPS: Class I, Division 1, Groups C, D WPSA: Class I, Division 1, Groups A, B, C, D Type Z LPS: Class I, Division 2, Groups A, B, C, D WPS: Class I, Division 2, Groups C, DWPSA: Class I, Division 2, Groups A, B, C, D
UL approval: cULus	Type Y LPS: Class I, Division 1, Groups A, B, C, D WPS: Class I, Division 1, Groups C, D WPSA: Class I, Division 1, Groups A, B, C, D Type Z LPS: Class I, Division 2, Groups A, B, C, D WPS: Class I, Division 2, Groups C, DWPSA: Class I, Division 2, Groups A, B, C, D
