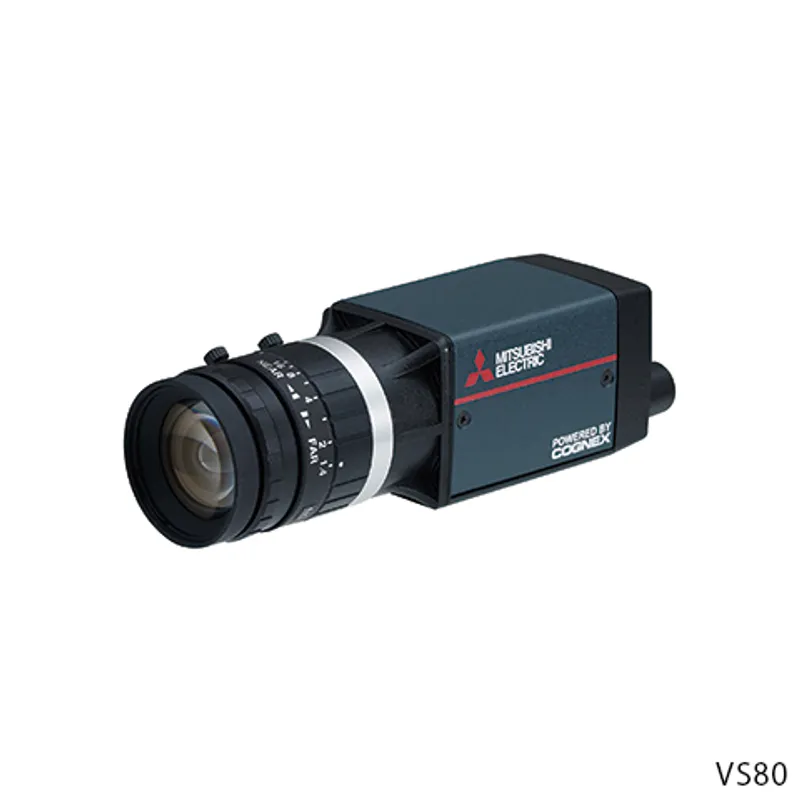

VS80C-402-R Mitsubishi MELSENSOR vision VS80
Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original VS80C-402-R (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Mitsubishi MELSENSOR vision – Vision Sensor |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
Can I still buy the VS80C-402-R now that it is discontinued?
Yes. Mitsubishi Electric (Factory Automation) has discontinued the VS80C-402-R, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can VS80C-402-R be shipped?
VS80C-402-R is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VS80C-402-R in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VS80C-402-R and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VS80C-402-R, subject to availability and destination.
The Mitsubishi Electric VS80C-402-R is a VS80 in the MELSENSOR vision. ●. Mitsubishi Electric has discontinued it (2025/09 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | MELSENSOR vision |
| Category | VS80 |
| Type | Color |
| Subtype | 33 full frames per second |
| Sales status | 2025/09 Discontinued (Mitsubishi Electric) |
| Outline | ● |
Specifications
| Series | VS80 |
| Model name | VS80C-402-R |
| Processor performance | 2 times |
| Memory | 512 MB flash memory Unlimited storage when storing in the remote network device Image processing: 512 MB SDRAM |
| Imager type | 1/1.8 inch CMOS, global shutter 9 mm diagonal, 4.5 x 4.5 μm square pixels |
| Imagery | Color |
| Lens | C-mount |
| Image resolution (pixels) | 1600 x 1200 |
| Bit depth | 24-bit color |
| Electronic shutter speed | 20 μs...940 ms |
| Maximum image acquisition speed *1 | 33 full frames per second |
| PatMax RedLine® | ● |
| Spreadsheet | ● |
| Power consumption | Max. 6.49 (supplied with PoE (class 2)) |
| Trigger | Opto-isolated image acquisition trigger input x 1, remote software commands via Ethernet |
| Discrete inputs | N/A Option: General-purpose input x 8 (available when connecting a CIO-MICRO I/O module) |
| Discrete outputs | Opto-isolated NPN/PNP high-speed output x 2 Option: General-purpose output x 8 (available when connecting a CIO-MICRO I/O module) |
| Network communication | CC-Link IE Field Network Basic, SLMP scanners, SLMP, EtherNet/IP™, MODBUS®/TCP, TCP/IP, UDP, FTP, Telnet (native mode), DHCP (default at shipment from the factory), fixed and link local IP address setting |
| Material | Zinc die-cast housing |
| Installation | M3 screw hole x 4 |
| Dimensions | 31.0 mm x 31.2 mm x 75.1 mm |
| Weight | 132.2 g |
Specifications
| Ambient operating temperature | 0...35°C (Case temperature: less than 50°C) |
| Ambient storage temperature | –20...80°C |
| Maximum humidity | Less than 80% RH, non-condensing |
| Vibration resistance | IEC 60068-2-6: A vibration of 10 G (10 to 500 Hz at 100 m/s 2 with 15 mm width) was applied to each X, Y, and Z direction for 2 hours |
| Shock resistance | IEC 60068-2-27: 18 half sinusoidal shocks (3 shocks for each X, Y, and Z direction) with 80 G (800 m/s 2 at 11 ms) were applied. |
| Operating atmosphere | There is no danger of corrosive gases, flammable gases, and strong alkaline substances to adhere. |
| Protective structure | IP40 (with cables connected and appropriate lens attached) |
