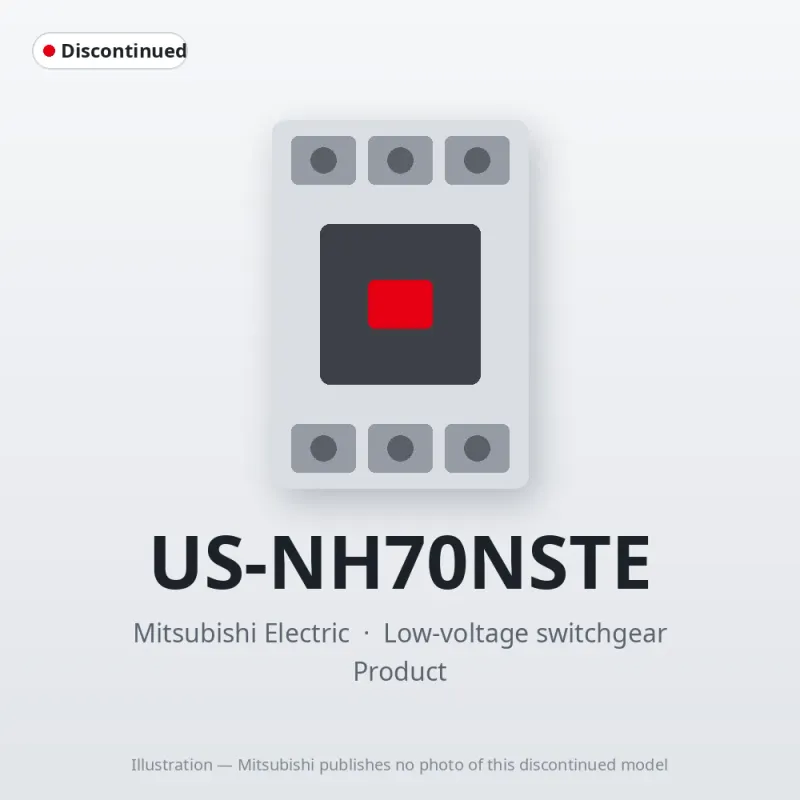

US-NH70NSTE Mitsubishi Low-voltage switchgear Solid State Contactor
Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original US-NH70NSTE (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Mitsubishi Low-voltage switchgear – Solid State Contactors |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
Can I still buy the US-NH70NSTE now that it is discontinued?
Yes. Mitsubishi Electric (Factory Automation) has discontinued the US-NH70NSTE, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can US-NH70NSTE be shipped?
US-NH70NSTE is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up US-NH70NSTE in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for US-NH70NSTE and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for US-NH70NSTE, subject to availability and destination.
The Mitsubishi Electric US-NH70NSTE is a solid State Contactor in the Low-voltage switchgear. Rated Operational Current 70A(Category AC-1) 3 Pole 3-Element Batch Control DC Operated Terminal Covers. Mitsubishi Electric has discontinued it (2022/12 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | Low-voltage switchgear |
| Sales status | 2022/12 Discontinued (Mitsubishi Electric) |
| Outline | Rated Operational Current 70A(Category AC-1) 3 Pole 3-Element Batch Control DC Operated Terminal Covers |
Specifications
| Product Specification | For Motor/Heater Loads |
| Rating: Rated Operating Current [A]: JEM（Category AC-1） | 70 |
| Rating: Rated Operating Current [A]: IEC（Category AC-51） | 65 |
| Rating: Applicable Heater Capacity [kW]: 1φ 200V | 14 |
| Rating: Applicable Heater Capacity [kW]: 3φ 200V | 24.2 |
| Rating: Applicable Heater Capacity [kW]: 1φ 400V | 28 |
| Rating: Applicable Heater Capacity [kW]: 3φ 400V | 48.5 |
| Rating: Maximum Applicable Motor Capacity [kW]/Maximum Operating Current [A]: 3φ 200V | 11/48 |
| Rating: Maximum Applicable Motor Capacity [kW]/Maximum Operating Current [A]: 3φ 400V | 22/48 |
| Rating: Minimum Load Current [mA] | 300 |
| Main Circuit Specifications: No.of Poles/Elements | 3-Pole 2-Element Type |
| Main Circuit Specifications: Control Method | Batch Control Type |
| Main Circuit Specifications: Operating Voltage [V] | AC200 to 480 |
| Main Circuit Specifications: Rated Insulation Voltage [V] | AC500 |
| Main Circuit Specifications: Making Voltage Drop | 1.5V/Phase |
| Main Circuit Specifications: Open Circuit Leakage Current | 30mA or Less(AC480V 60Hz) |
| Main Circuit Specifications: Surge ON Current (60 Hz, 1 Half-Wave Cycle Peak Value) [A] | 1800 |
| Main Circuit Specifications: Tolerance I2t(A 2s) | 13500 |
| Main Circuit Specifications: Trigger System | Zero Voltage Trigger System |
| Main Circuit Specifications: Making and Breaking Current Capacities [A] | 480 |
| Control Circuit Specifications: Rated Operational Voltage [V] | DC12 to 24V |
| Control Circuit Specifications: Control Circuit Input Current | 20mA(DC12 to 24V) |
| Control Circuit Specifications: Input Impedance | 0.6 to 1.2kΩ |
| Control Circuit Specifications: Closing Voltage | DC9V or Less |
| Control Circuit Specifications: Opening Voltage | DC3V or More |
| Control Circuit Specifications: Response Time | Max. 1ms+1/2 Cycle |
| Control Circuit Specifications: Operation Indicator | LED Indicator(Lights When Operating Voltage Applied) |
| Control Circuit Specifications: Cooling Fan Rated Operational Voltage | AC200 to 240V |
| Control Circuit Specifications: Fan Fault Detection Output: Contact Arrangement | Break Contact |
| Control Circuit Specifications: Fan Fault Detection Output: Contact Capacity | DC5 to 24V/AC100 to 240V 0.1A |
| Functions: Terminal Covers | Yes |
| Functions: Wiring Streamlining Terminal | No |
| Mounting Method | Screw Mounting |
| Terminal Screw Size: Main Circuit | M6 |
| Terminal Screw Size: Control Circuit | M3.5 |
