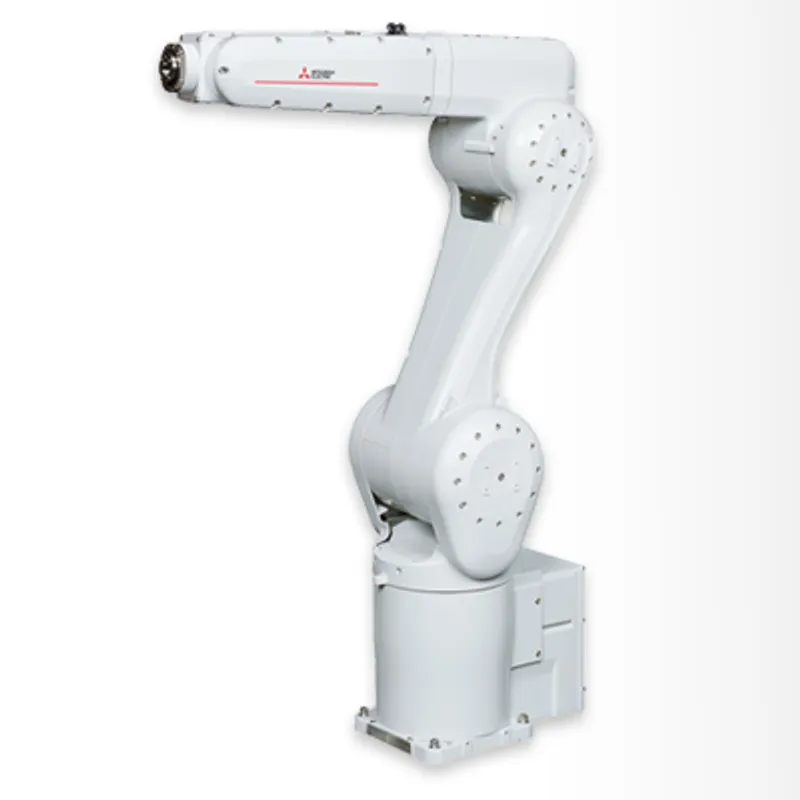

Mitsubishi Electric RV-8CRL-D

Mitsubishi MELFA robot RV-CR series

MPN
RV-8CRL-D
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric RV-8CRL-D?

The Mitsubishi Electric RV-8CRL-D is a RV-CR series in the MELFA robot. Standalone. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELFA robot
CategoryRV-CR series
OutlineStandalone

Specifications

CategoryRobot arm
SeriesRV-CR series
StructureVertical articulated
TypeRV-8CRL-D
Environmental specificationsOil mist
Protection degreeIP65 (*1)
InstallationOn floor, hanging, (against wall) (*2)
Degrees of freedom6
Drive systemAC servo motor (All axes have the brake)
Position detection methodAbsolute encoder
Load capacity: Maximum: kg8 (*3)
Load capacity: Rated: kg7
Arm length: Upper arm: mm450
Arm length: Fore arm: mm470
Maximum reach radius: mm931
Operating range: J1: degー170 to +170
Operating range: J2: degー110 to +110
Operating range: J3: deg+0 to +165.0
Operating range: J4: deg-200 to +200
Operating range: J5: deg-120 to +120
Operating range: J6: deg-360 to +360
Maximum speed: J1: deg/sec288
Maximum speed: J2: deg/sec321
Maximum speed: J3: deg/sec360
Maximum speed: J4: deg/sec337
Maximum speed: J5: deg/sec450
Maximum speed: J6: deg/sec720
Position repeatability: mm±0.02
Ambient temperature: ℃0 to 40
Mass: kg41
Tolerable moment: J4: Nm16.2
Tolerable moment: J5: Nm16.2
Tolerable moment: J6: Nm6.86
Tolerable amount of inertia: J4: kgm 20.45
Tolerable amount of inertia: J5: kgm 20.45
Tolerable amount of inertia: J6: kgm 20.10
Tool wiring15-pin D-sub
Tool pneumatic pipesø6 × 2
Machine cable5
Connected controller TypeCR800-CVD
Control TypeStandalone

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

RV-8CRL-D: frequently asked questions

When can RV-8CRL-D be shipped?

RV-8CRL-D is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up RV-8CRL-D in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for RV-8CRL-D and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RV-8CRL-D, subject to availability and destination.

More Mitsubishi Electric (Factory Automation) parts

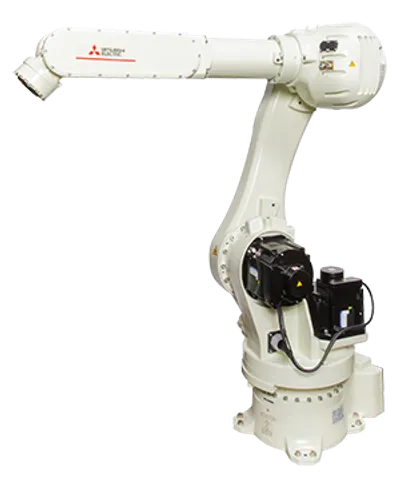

Mitsubishi Electric RV-80FR-R – Mitsubishi MELFA robot RV-FR series
Mitsubishi Electric
RV-80FR-R

Mitsubishi MELFA robot RV-FR series

Mitsubishi Electric RV-80FRM-D – Mitsubishi MELFA robot RV-FR series
Mitsubishi Electric
RV-80FRM-D

Mitsubishi MELFA robot RV-FR series

Mitsubishi Electric RV-80FRM-Q – Mitsubishi MELFA robot RV-FR series
Mitsubishi Electric
RV-80FRM-Q

Mitsubishi MELFA robot RV-FR series

Mitsubishi Electric RV-80FRM-R – Mitsubishi MELFA robot RV-FR series
Mitsubishi Electric
RV-80FRM-R

Mitsubishi MELFA robot RV-FR series

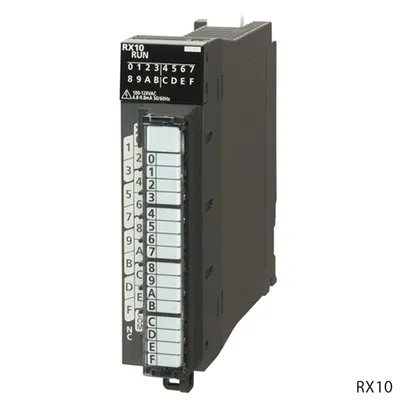

Mitsubishi Electric RX10 – Mitsubishi MELSEC iQ-R Series Input
Mitsubishi Electric
RX10

Mitsubishi MELSEC iQ-R Series Input

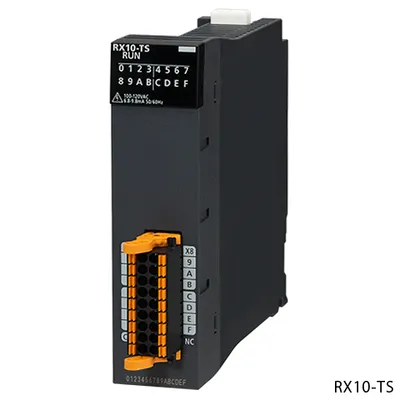

Mitsubishi Electric RX10-TS – Mitsubishi MELSEC iQ-R Series Input
Mitsubishi Electric
RX10-TS

Mitsubishi MELSEC iQ-R Series Input

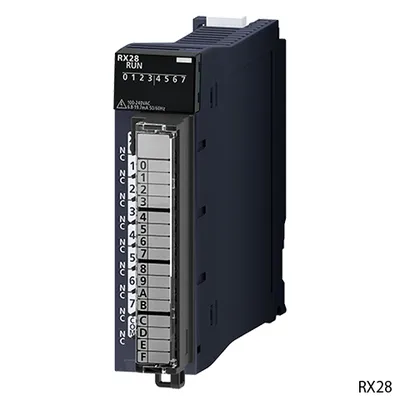

Mitsubishi Electric RX28 – Mitsubishi MELSEC iQ-R Series Input
Mitsubishi Electric
RX28

Mitsubishi MELSEC iQ-R Series Input

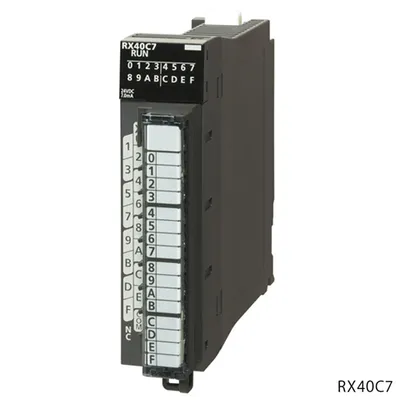

Mitsubishi Electric RX40C7 – Mitsubishi MELSEC iQ-R Series Input
