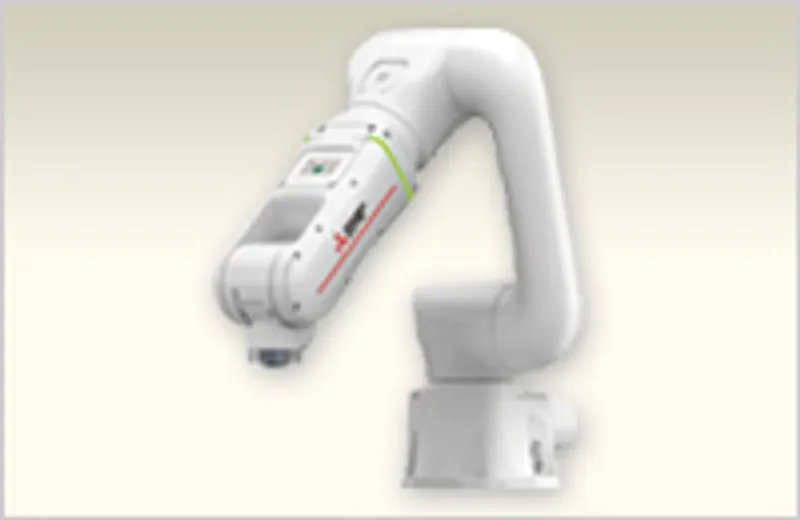

Mitsubishi Electric RV-5AS-D

Mitsubishi MELFA robot ASSISTA

MPN
RV-5AS-D
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric RV-5AS-D?

The Mitsubishi Electric RV-5AS-D is a ASSISTA in the MELFA robot. Standalone. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELFA robot
CategoryASSISTA
OutlineStandalone

Specifications

CategoryRobot arm
SeriesASSISTA
StructureVertical articulated
TypeRV-5AS-D
Environmental specificationsOil mist
Protection degreeIP54
InstallationFloor mounted, ceiling mounted
Degrees of freedom6
Drive systemAC servo motor (All axes have the brake)
Position detection methodAbsolute encoder
Load capacity: Maximum: kg5.5 (*1)
Load capacity: Rated: kg5
Maximum reach radius: mm910
Operating range: J1: deg-240 to +240
Operating range: J2: deg-148 to +148
Operating range: J3: deg-150 to +150
Operating range: J4: deg-200 to +200
Operating range: J5: deg-120 to +120
Operating range: J6: deg-200 to +200
Maximum speed: J1: deg/sec124 (59.6) (*2)
Maximum speed: J2: deg/sec124 (34.0) (*2)
Maximum speed: J3: deg/sec124 (34.0) (*2)
Maximum speed: J4: deg/sec297 (142) (*2)
Maximum speed: J5: deg/sec356 (215) (*2)
Maximum speed: J6: deg/sec360
Maximum composite speed: High-speed operation mode: mm/sec1000 (*3)
Maximum composite speed: Collaborative operation mode (Standard operation): mm/sec250 (*3)
Maximum composite speed: Collaborative operation mode (Low-speed operation): mm/sec50 (*3)
Position repeatability: mm±0.03
Ambient temperature: ℃0 to 40 (*4)
Mass: kg32
Tolerable moment: J4: Nm12.8
Tolerable moment: J5: Nm12.8
Tolerable moment: J6: Nm4.9
Tolerable amount of inertia: J4: kgm 20.34
Tolerable amount of inertia: J5: kgm 20.34
Tolerable amount of inertia: J6: kgm 20.10
Tool wiringMechanical interface: 2 inputs/4 outputs Forearm: 6 inputs/0 outputs Base: 0 inputs/4 outputs
Tool pneumatic pipesPrimary hoses: Φ6 × 2 Secondary hoses: Φ4 × 4 From the base of the robot to the elbow.
Force sensor cable/Spare cable5-conductor (24V/0.7A) One of the conductors should be used for the frame ground (FG).
LAN cableCat-5e supported
Supply pressure: Mpa0.54
Machine cable: m5m (connector on both ends)
Connected controller TypeCR800-05VD
Control TypeStandalone

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

RV-5AS-D: frequently asked questions

When can RV-5AS-D be shipped?

RV-5AS-D is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up RV-5AS-D in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for RV-5AS-D and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for RV-5AS-D, subject to availability and destination.

More Mitsubishi Electric (Factory Automation) parts

Mitsubishi Electric RV-50FR-R – Mitsubishi MELFA robot RV-FR series
Mitsubishi Electric
RV-50FR-R

Mitsubishi MELFA robot RV-FR series

Mitsubishi Electric RV-50FRM-D – Mitsubishi MELFA robot RV-FR series
Mitsubishi Electric
RV-50FRM-D

Mitsubishi MELFA robot RV-FR series

Mitsubishi Electric RV-50FRM-Q – Mitsubishi MELFA robot RV-FR series
Mitsubishi Electric
RV-50FRM-Q

Mitsubishi MELFA robot RV-FR series

Mitsubishi Electric RV-50FRM-R – Mitsubishi MELFA robot RV-FR series
Mitsubishi Electric
RV-50FRM-R

Mitsubishi MELFA robot RV-FR series

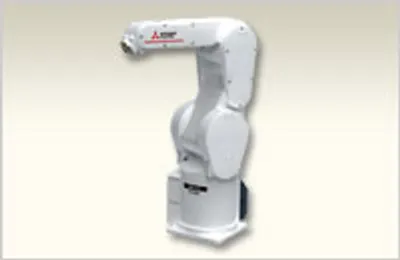

Mitsubishi Electric RV-7FR-D – Mitsubishi MELFA robot RV-FR series
