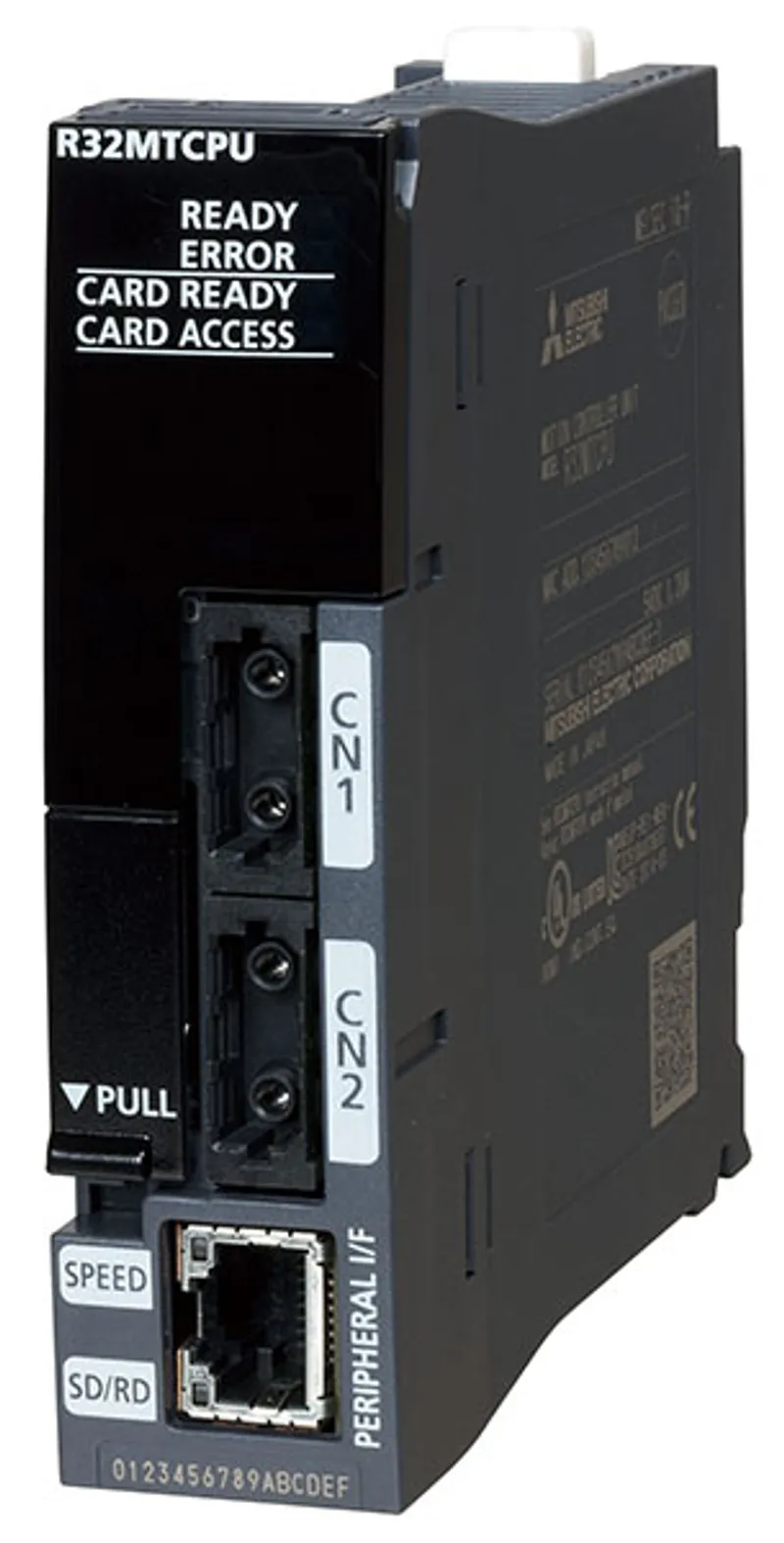

Mitsubishi Electric R32MTCPU

Mitsubishi MELSEC iQ-R Series Motion CPU

MPN
R32MTCPU
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric R32MTCPU?

The Mitsubishi Electric R32MTCPU is a motion CPU in the MELSEC iQ-R Series. Maximum number of control axes: 32 axes (up to 16 axes/line × 2), SSCNET III/H connection, Positioning control, synchronous control, speed-torque control, continuous operation to torque control, pressure control, G-code control, machine control. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-R Series
CategoryMotion CPU
OutlineMaximum number of control axes: 32 axes (up to 16 axes/line × 2), SSCNET III/H connection, Positioning control, synchronous control, speed-torque control, continuous operation to torque control, pressure control, G-code control, machine control

Control specifications

Number of control axesUp to 32 axes (1 line, up to 16 axes × 2 )
Operation cycle (operation cycle settings) *10.222 ms, 0.444 ms, 0.888 ms, 1.777 ms, 3.555 ms, 7.111 ms
Interpolation functionLinear interpolation (up to 4 axes), 2-axis circular interpolation, helical interpolation (3 axes)
Control methodPositioning control, speed control, speed-torque control, speed-position switching control, fixed-pitch feed, advanced synchronous control, cam control, continuous path control, position follow-up control, speed control with fixed position stop, high-speed oscillation control, machine control, G-code control
Acceleration/deceleration processingTrapezoidal acceleration/deceleration, S-curve acceleration/deceleration, advanced S-curve acceleration/deceleration
Compensation functionBacklash compensation, electronic gear, phase compensation
Synchronous controlSynchronous encoder input, cam, phase compensation, cam auto-generation
Control unitmm, inch, degree, pulse
Programming languageMotion SFC, dedicated instruction
Servo program capacity64k steps
Number of positioning points6400 points (positioning data can be designated indirectly)
Home position returnProximity dog method (2 types), count method (3 types), data set method (3 types), dog cradle method, stopper method (2 types), limit switch combined method, scale home position signal detection method, dogless home position signal reference method (home position return re-try function provided, home position shift function provided)
Positioning controlLinear interpolation control (up to 4 axes), fixed-pitch feed control (up to 3 axes), 2-axis circular interpolation (auxiliary point-specified, radius-specified, central point-specified), speed control (1-axis), speed-position switching control (INC mode), current value change
Manual controlJOG operation, manual pulse generator operation (possible to connect 3 modules (high-speed counter module use))
Speed-torque controlSpeed control not including position loop, torque control, continuous operation to torque control
Synchronous encoder operation functionPossible to use 12 modules (via module (high-speed counter module use) + via servo amplifier *3 + via device + multiple CPU advanced synchronous control + via sensing module)
Speed limitSpeed limit value, JOG speed limit value
Torque limit functionTorque limit value (positive/negative direction)
M-code output functionProvided
Speed changeProvided
Acceleration/deceleration processing changeAcceleration/deceleration time
Limit switch output functionNumber of output points: 64 points × 2 sections Watch data: motion control data, word device
ROM operation functionProvided (batteryless operation)
External input signalExternal input signals (FLS, RLS, DOG) of servo amplifier, bit device
Mark detection functionContinuous detection mode, specified number of detections mode, ring buffer mode
Mark detection function: Mark detection signalHigh-speed input request signal (bit device, input signal of servo amplifier (DI1 to DI3))
Mark detection function: Mark detection setting64 settings
Torque limit value changeProvided
Target position change functionTarget position change, movement distance change
Servo parameter change functionProvided
Servo amplifier control mode switching functionGain switching function, PI-PID control, control loop changing (fully closed loop control, semi closed loop control)
Optional data monitor functionUp to 14 data/axis (communication data: up to 6 points/axis)
Forced stopMotion controller forced stop (system setting), forced stop terminal of servo amplifier
Software stroke limit functionMovable range check with current feed value
Hardware stroke limit functionProvided
Number of I/O points4096 points
Clock functionProvided
Security functionFile password, password for every Motion SFC program, security key function
All clear functionDelete all user data in Motion CPU
Remote operationRemote RUN/STOP, remote latch clear
Digital oscilloscope functionMotion buffering method (real-time waveform can be displayed) Sampling data: word 16CH, bit 16CH Offline sampling
Driver communication functionProvided
Event history functionProvided
Amplifier-less operation functionProvided
Servo system recorder functionProvided
Absolute position systemProvided (Made compatible by setting battery to servo amplifier.)
Number of SSCNET III/H lines *22 lines

Module specifications

Servo amplifier connection methodSSCNET III/H (2 lines)
Maximum overall cable distance [m]SSCNET III/H: 1600
Maximum distance between stations [m]SSCNET III/H: 100
Number of sensing module connection stationsUp to 8 stations (up to 4 stations/line)
Number of SSCNET III/H head module connection stationsUp to 8 stations (up to 4 stations/line)
PERIPHERAL I/FMotion CPU: PERIPHERAL I/F Via a PLC CPU: USB, Ethernet
Manual pulse generator interfacePossible to connect 3 modules of manual pulse generator (high-speed counter module use)
Extended memorySD/SDHC memory card
Memory capacity: Built-in memory12 M bytes (standard ROM)
Memory capacity: SD memory cardUp to 32 G bytes
Number of stages of extension baseUp to 7 stages
5 V DC internal current consumption [A]1.20
Mass [kg]0.28
Exterior dimensions [mm]106.0 (H) × 27.8 (W) × 110.0 (D)
