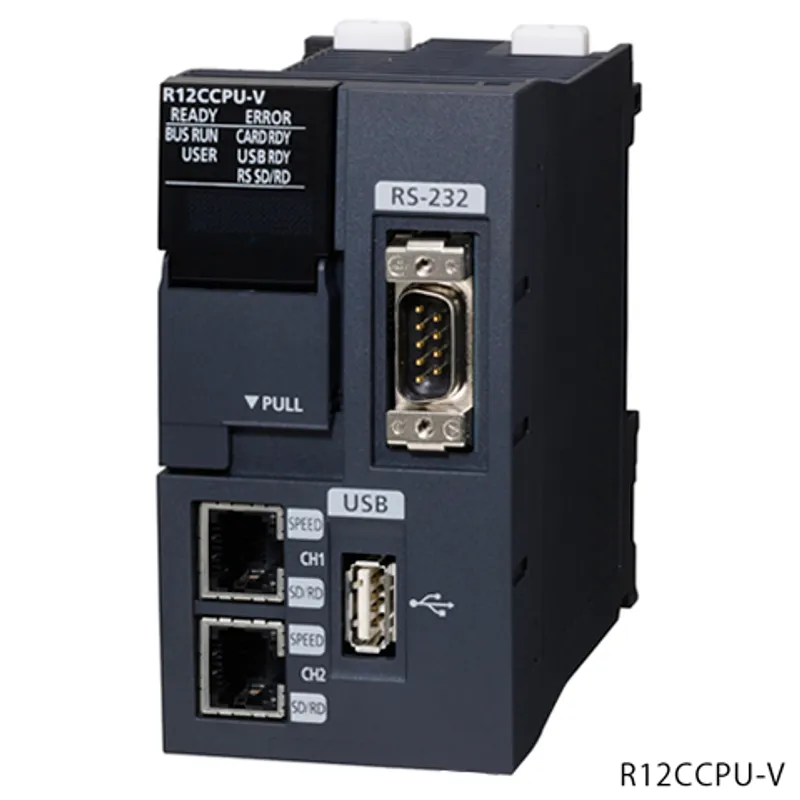

R12CCPU-V Mitsubishi MELSEC iQ-R Series C Controller CPU

MPN: R12CCPU-V · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC iQ-R Series – CPU
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R12CCPU-V be shipped?

R12CCPU-V is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R12CCPU-V in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R12CCPU-V and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R12CCPU-V, subject to availability and destination.

The Mitsubishi Electric R12CCPU-V is a C Controller CPU in the MELSEC iQ-R Series. Number of I/O points: 4096, endian format: little endian, SD card: available, OS: VxWorks Version 6.9. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC iQ-R Series
Category	C Controller CPU
Outline	Number of I/O points: 4096, endian format: little endian, SD card: available, OS: VxWorks Version 6.9

Software specifications

Operating system	VxWorks Version 6.9
Programming language	C language (C/C++)

Hardware specifications

MPU	ARM ® Cortex-A9 Dual Core
Endian format	Little endian
Memory capacity: Work RAM	256M bytes
Memory capacity: ROM	16M bytes (program memory: 8M bytes, data memory: 8M bytes)
Memory capacity: Backup RAM	4096K bytes (File storage area for device/label memory: 358K bytes, for system: 512K bytes)
SD memory card specifications: Interface	SD/SDHC memory card (up to 16G bytes)
SD memory card specifications: Power supply	+3.3 V DC, up to 200 mA
Ethernet port: Number of channels	2
Ethernet port: Interface	10BASE-T/100BASE-TX/1000BASE-T
Ethernet port: Data transmission speed	10 Mbps (10BASE-T), 100 Mbps (100BASE-TX), 1000 Mbps (1000BASE-T)
Ethernet port: Number of cascaded connections	Maximum 4 stages (10BASE-T)/Maximum 2 stages (100BASE-TX)
Ethernet port: Maximum segment length	100 m
Ethernet port: Communication method	Full-duplex/half-duplex
Ethernet port: Transmission method	Base band
Ethernet port: Connector applicable to external wiring	RJ45
Ethernet port: Supported function	Auto-negotiation function (automatic recognition of communication speed/communication method) Auto-MDI/MDI-X (automatic recognition of straight/crossing cable)
Ethernet port: IP version	IPv4
RS-232 connector: Number of channels	1
RS-232 connector: Interface	RS-232-compliant
RS-232 connector: Communication method	Full-duplex/half-duplex
RS-232 connector: Synchronization method	Start-stop synchronization method
RS-232 connector: Transmission speed	9600, 14400, 19200, 28800, 38400, 57600, 115200 bps
RS-232 connector: Transmission distance	Up to 15 m
RS-232 connector: Data format: Start bit	1
RS-232 connector: Data format: Data bit	7/8
RS-232 connector: Data format: Parity bits	1/None
RS-232 connector: Data format: Stop bit	1/2
RS-232 connector: Parity check	Yes (even/odd)/None
RS-232 connector: Sum check code	Yes/None
RS-232 connector: Transmission control	Flow control (RS/CS control)
USB connector: Interface	USB 2.0 compatible
USB connector: Connector	Type A
USB connector: Transmission speed	480 Mbps (High Speed)
USB connector: Power supply	Bus power +5 V DC, up to 500 mA
USB connector: Supported standard	USB mass storage class (up to 2T bytes)
Number of occupied I/O points	4096 points
Clock function: Displayed information	Year, month, date, hour, minute, second, and day of week (automatic leap year detection)
Clock function: Accuracy	Daily error: -5.86...+3.35 s (0...55 ˚C) Daily error: -1.71...+3.35 s (25 ˚C)
Allowable momentary power failure time	The time differs depending on the power supply module used.
Internal current consumption (5 V DC)	1.26 A
External dimensions: Height	106 mm
External dimensions: Width	56 mm
External dimensions: Depth	110 mm
Weight	0.35 kg

Specifications

Operating ambient temperature	0...55 ˚C (When an extended temperature range base unit is not used) 0...60 ˚C (When an extended temperature range base unit is used)
Storage ambient temperature	-25...75 ˚C
Operating ambient humidity	5...95 %RH, non-condensing
Storage ambient humidity	5...95 %RH, non-condensing
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under intermittent vibration	Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, and Z directions
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under continuous vibration	Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance: IEC 61131-2: 2007/JIS B 3502: 2011	Three shocks in each direction per axis, on 3 mutually perpendicular axes (total of 18 shocks)
Operating atmosphere	No corrosive gases, flammable gases, less conductive dust
Operating altitude	0...2000 m
Installation location	Inside a control panel
Overvoltage category	II or less
Pollution degree	2 or less

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

MELSEC iQ-R C Controller Module User's Manual (SH-082558ENG-F)	PDF · 12.81MB
MELSEC iQ-R Module Configuration Manual (SH-081262ENG-AU)	PDF · 44.18MB
MELSEC iQ-R C Controller Module Programming Manual (SH-081371ENG-O)	PDF · 2.67MB
MELSEC iQ-R Inter-Module Synchronization Function Reference Manual (SH-081401ENG-U)	PDF · 8.47MB
MELSEC iQ-R C Controller Module/C Intelligent Function Module Programming Manual (Data Analysis) (SH-081756ENG-E)	PDF · 0.50MB
CC-Link IE Field Network Basic Reference Manual (SH-081684ENG-J)	PDF · 4.67MB
Before Using the Product (BCN-P5999-0214)	PDF · 0.13MB
Safety Guidelines (IB-0800525E-AC)	PDF · 11.79MB
