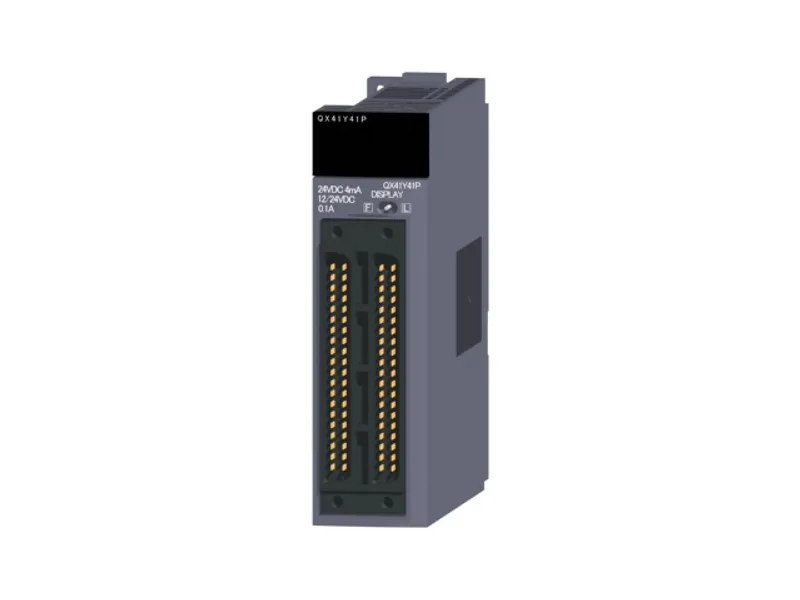

The Mitsubishi Electric QX41Y41P is a I/O in the MELSEC-Q Series. DC input: 32 points, 24 V DC, 4 mA, response time: 1/5/10/20/70 ms, 32 points/common, positive common type, transistor output: 32 points, 12...24 V DC, 0.1 A/point, 2 A/common, response time: 1 ms, 32 points/common, sink type, 40-pin connector x 2, number of occupied I/O points: 64 points. Mitsubishi Electric has announced its discontinuation (2029/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC-Q Series
Category	I/O
Type	DC input (positive common)/transistor output (sink)
Sales status	2029/09 To be end of order (Mitsubishi Electric)
Outline	DC input: 32 points, 24 V DC, 4 mA, response time: 1/5/10/20/70 ms, 32 points/common, positive common type, transistor output: 32 points, 12...24 V DC, 0.1 A/point, 2 A/common, response time: 1 ms, 32 points/common, sink type, 40-pin connector x 2, number of occupied I/O points: 64 points

Input specifications

Input type	DC input (positive common type)
Number of input points	32 points
Rated input voltage	24 V DC (+20/-15 %, ripple ratio within 5 %)
Rated input current	Approx. 4 mA
ON voltage/ON current	19 V or more/3 mA or more
OFF voltage/OFF current	11 V or less/1.7 mA or less
Input resistance	Approx. 5.6 kΩ
Input response time: OFF to ON	1 ms, 5 ms, 10 ms, 20 ms, 70 ms or less
Input response time: ON to OFF	1 ms, 5 ms, 10 ms, 20 ms, 70 ms or less
Input common terminal arrangement	32 points/common

Output specifications

Output type	Transistor output (sink type)
Number of output points	32 points
Rated load voltage	12...24 V DC (+20/-15 %)
Maximum load current	0.1 A/point, 2 A/common
Maximum inrush current	0.7 A, 10 ms or less
Leakage current at OFF	0.1 mA or less
Maximum voltage drop at ON	0.1 V DC (TYP.) 0.1 A, 0.2 V DC (MAX.) 0.1 A
Output response time: OFF to ON	1 ms or less
Output response time: ON to OFF	1 ms or less (rated load, resistive load)
Surge suppressor	Zener diode
Fuse	None
Protection function: Overheat protection function	Available
Protection function: Overload protection function	Available
External power supply: Voltage	12...24 V DC (+20/-15 %) (ripple ratio within 5 %)
External power supply: Current	Maximum 15 mA/common (at 24 V DC and all points ON)
Output common terminal arrangement	32 points/common

Common specifications

Isolation method	Photocoupler
Dielectric withstand voltage	560 V AC rms/3 cycles (altitude 2000 m)
Insulation resistance	10 MΩ or higher by insulation resistance tester
Protection degree	IP2X
Operation indication	ON indication (LED), 32 point switch-over using switch
External interface	40-pin connector × 2
External interface: Applicable connector	A6CON1, A6CON2, A6CON3, A6CON4 (sold separately)
Number of occupied I/O points	64 points (I/O assignment: I/O combined 64 points)
Internal current consumption (5 V DC)	130 mA (TYP. all points ON)
External dimensions: Height	98 mm
External dimensions: Width	27.4 mm
External dimensions: Depth	90 mm
Weight	0.20 kg
