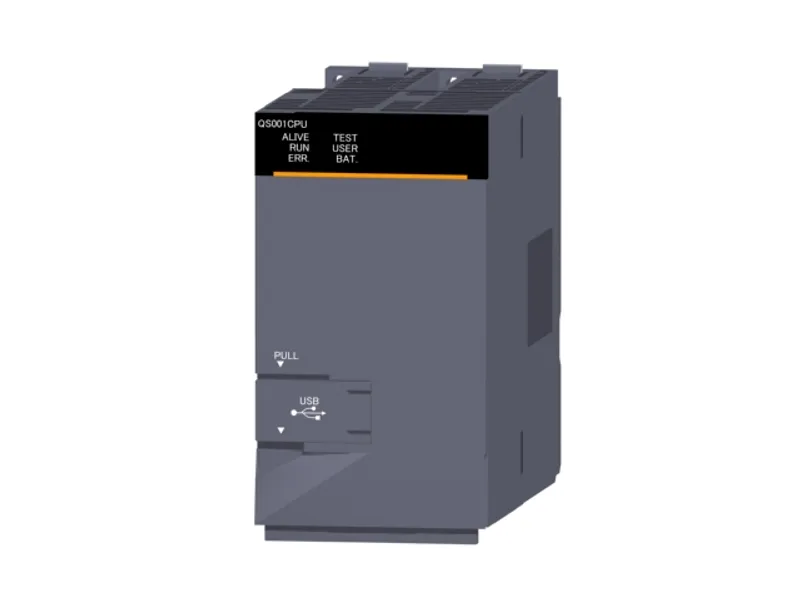

Mitsubishi Electric QS001CPU

Mitsubishi MELSEC-QS/WS Safety CPU

MPN
QS001CPU
Price and lead time confirmed within 1 business day

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original QS001CPU (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric QS001CPU?

The Mitsubishi Electric QS001CPU is a CPU in the MELSEC-QS/WS Safety. Number of I/O points: 1024, number of I/O device points: 6144, program size: 14K steps, processing speed (LD X0): 100 ns, program size: 56K bytes, peripheral connection ports: USB. Mitsubishi Electric has discontinued it (2023/09 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-QS/WS Safety
CategoryCPU
Sales status2023/09 Discontinued (Mitsubishi Electric)
OutlineNumber of I/O points: 1024, number of I/O device points: 6144, program size: 14K steps, processing speed (LD X0): 100 ns, program size: 56K bytes, peripheral connection ports: USB

Specifications

Control methodStored program cyclic operation
I/O control modeRefresh mode
Programming language: Sequence control languageRelay symbol language, function block
Processing speed: Sequence instruction: LD X00.10 µs
Processing speed: Sequence instruction: MOV D0 D10.35 µs
Constant scan1...2000 ms (setting is available in increments of 1 ms by parameter)
Program capacity14K steps (56K bytes)
Memory capacity: Program memory (drive 0)128K bytes
Memory capacity: Standard ROM (drive 4)128K bytes
Maximum number of storable files: Program memory3
Maximum number of storable files: Standard ROM3
No. of data writing times into the standard ROMMaximum 100,000 times
Number of I/O device points6144 points (X/Y0...17FF)
Number of I/O points1024 points (X/Y0...3FF)
No. of device points: Internal relay (M)6144 points (M0...6143) by default (changeable)
No. of device points: Link relay (B)2048 points (B0...7FF) by default (changeable)
No. of device points: Timer (T)512 points (T0...511) by default (changeable) (Low-speed and high-speed timers available) Low-speed or high-speed is specified by an instruction. The measurement unit is set by parameter. (Low-speed timer: 1...1000 ms (in increments of 1 ms), default: 100 ms) (High-speed timer: 0.1...100.0 ms (in increments of 0.1 ms), default: 10.0 ms)
No. of device points: Retentive timer (ST)0 points by default (changeable) (Low-speed and high-speed retentive timers available) Low-speed or high-speed is specified by an instruction. The measurement unit is set by parameter. (Low-speed retentive timer: 1...1000 ms (in increments of 1 ms), default: 100 ms) (High-speed retentive timer: 0.1...100.0 ms (in increments of 0.1 ms), default: 10.0 ms)
No. of device points: Counter (C)Normal counter: 512 points (C0...511) by default (changeable)
No. of device points: Data register (D)6144 points (D0...6143) by default (changeable)
No. of device points: Link register (W)2048 points (W0...7FF) by default (changeable)
No. of device points: Annunciator (F)1024 points (F0...1023) by default (changeable)
No. of device points: Edge relay (V)1024 points (V0...1023) by default (changeable)
No. of device points: Link special relay (SB)1536 points (SB0...5FF) (The number of device points is fixed.)
No. of device points: Link special register (SW)1536 points (SW0...5FF) (The number of device points is fixed.)
No. of device points: Special relay (SM)5120 points (SM0...5119) (The number of device points is fixed.)
No. of device points: Special register (SD)5120 points (SD0...5119) (The number of device points is fixed.)
RUN/PAUSE contactOne contact can be set up in X0 to X17FF for each of RUN. No PAUSE contact.
Clock functionYear, month, date, hour, minute, second, and day of week (automatic leap year detection) Accuracy: -3.18...+5.25 s (TYP. +2.14 s)/d at 0 ˚C Accuracy: -3.18...+2.59 s (TYP. +2.07 s)/d at 25 ˚C Accuracy: -12.97...+3.63 s (TYP. -3.16 s)/d at 55 ˚C
Allowable momentary power failure timeThe time differs depending on the power supply module used.
Internal current consumption (5 V DC)0.58 A
External dimensions: Height98 mm
External dimensions: Width55.2 mm
External dimensions: Depth114 mm
Weight0.29 kg
Protection degreeIP2X

Specifications

Operating ambient temperature0...55 ˚C
Storage ambient temperature-40...75 ˚C
Operating ambient humidity5...95 %RH, non-condensing
Storage ambient humidity5...95 %RH, non-condensing
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibrationFrequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibrationFrequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistanceCompliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 , duration of action 11 ms, 3 times in X, Y, Z directions respectively by sine half-wave pulse)
Operating atmosphereNo corrosive gases
Operating altitude0...2000 m
Installation locationInside a control panel
Overvoltage categoryII or less
Pollution degree2 or less
Equipment classClass I

QS001CPU: frequently asked questions

Can I still buy the QS001CPU now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the QS001CPU, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can QS001CPU be shipped?

QS001CPU is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up QS001CPU in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for QS001CPU and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for QS001CPU, subject to availability and destination.

More Mitsubishi Electric (Factory Automation) parts

Mitsubishi Electric QJ72LP25GE – Mitsubishi MELSEC-Q Series MELSECNET/H
Mitsubishi Electric
QJ72LP25GE

Mitsubishi MELSEC-Q Series MELSECNET/H

Mitsubishi Electric QLP21 – Mitsubishi MELSEC-A Module
Mitsubishi Electric
QLP21

Mitsubishi MELSEC-A Module

Mitsubishi Electric QLP21S – Mitsubishi MELSEC-A Module
Mitsubishi Electric
QLP21S

Mitsubishi MELSEC-A Module

Mitsubishi Electric QLR21 – Mitsubishi MELSEC-A Module
Mitsubishi Electric
QLR21

Mitsubishi MELSEC-A Module

Mitsubishi Electric QS001CPU-K – Mitsubishi MELSEC-QS/WS Safety CPU
Mitsubishi Electric
QS001CPU-K

Mitsubishi MELSEC-QS/WS Safety CPU

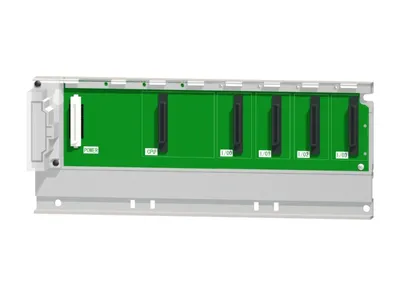

Mitsubishi Electric QS034B – Mitsubishi MELSEC-QS/WS Safety Base
Mitsubishi Electric
QS034B

Mitsubishi MELSEC-QS/WS Safety Base

Mitsubishi Electric QS034B-E – Mitsubishi MELSEC-QS/WS Safety Base
Mitsubishi Electric
QS034B-E

Mitsubishi MELSEC-QS/WS Safety Base

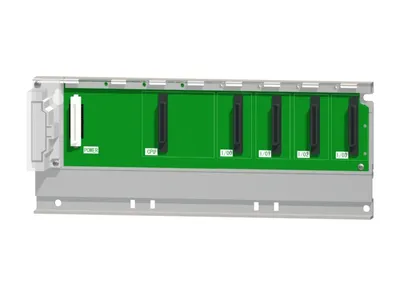

Mitsubishi Electric QS034B-K – Mitsubishi MELSEC-QS/WS Safety Base
