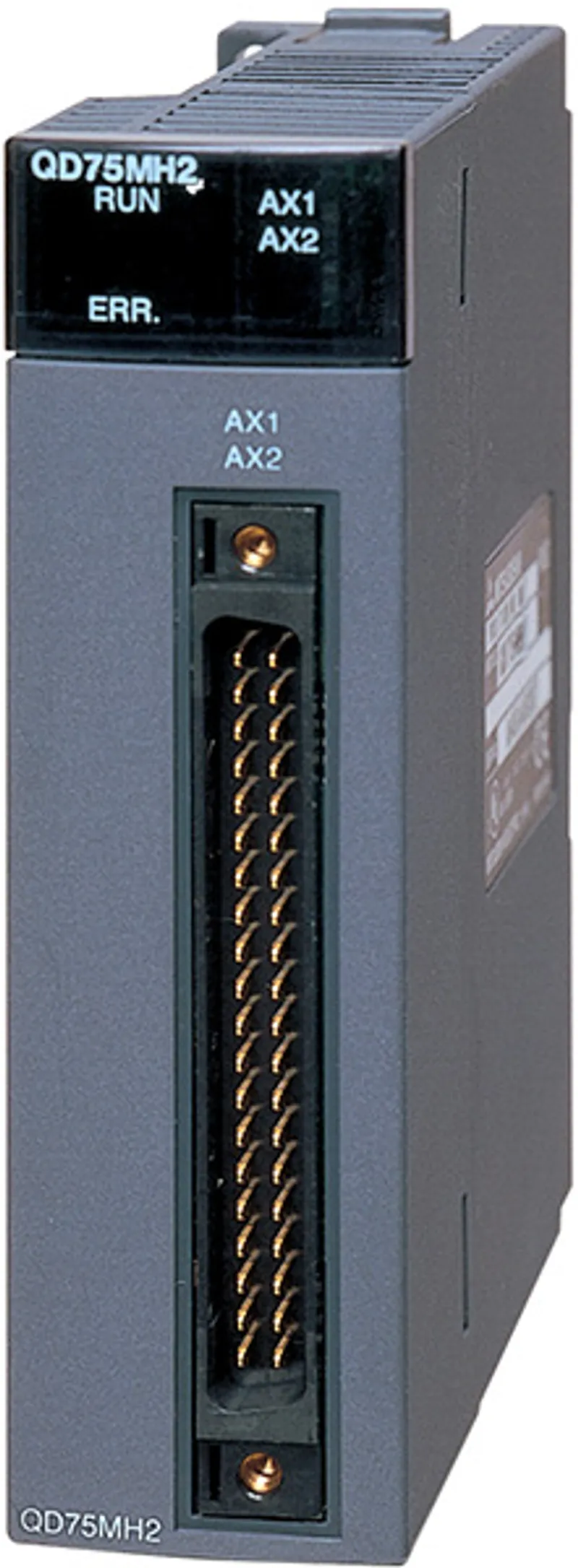

QD75MH2 Mitsubishi MELSEC-Q Series Positioning
Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original QD75MH2 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Mitsubishi MELSEC-Q Series – Simple motion/positioning |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
Can I still buy the QD75MH2 now that it is discontinued?
Yes. Mitsubishi Electric (Factory Automation) has discontinued the QD75MH2, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can QD75MH2 be shipped?
QD75MH2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up QD75MH2 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for QD75MH2 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for QD75MH2, subject to availability and destination.
The Mitsubishi Electric QD75MH2 is a positioning in the MELSEC-Q Series. 2 axes, Number of positioning data: 600 data/axis. SSCNET III connection. Mitsubishi Electric has discontinued it (2018/09 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | MELSEC-Q Series |
| Category | Positioning |
| Type | Specialized functionality type |
| Subtype | SSCNETⅢ |
| Sales status | 2018/09 Discontinued (Mitsubishi Electric) |
| Outline | 2 axes, Number of positioning data: 600 data/axis. SSCNET III connection |
Control specifications
| Number of control axes | Up to 2 axes |
| Number of positioning data | 600 data/axis |
| Operation cycle | 1.77 ms |
| Servo amplifier connection method | High-speed serial communication system (SSCNET Ⅲ) |
| Connectable servo amplifier | Mitsubishi general-purpose servo amplifier (MR-J3-_B) |
| Forced stop input | 24 V DC level, 1 point/module |
| External signal interface | ･ Upper stroke limit ･ Lower stroke limit ･ Proximity dog ･ Stop ･ Speed/position switching signal, 24 V DC level, 5 points/axis |
| Manual pulse generator interface | A-phase/B-phase, 5 V DC level, 1 point/module |
Downloads & documentation
Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.
Data sheets & manuals
| QD75MH Positioning Module User's Manual (Details) (IB-0300117-B) | PDF · 8.37MB |
| QD75MH1/QD75MH2/QD75MH4 Before Using the Product (BCN-B62008-270E-B) | PDF · 0.15MB |
More Mitsubishi Electric (Factory Automation) parts
Available on requestQD75M1 Mitsubishi MELSEC-Q Series Positioning
Available on requestQD75M2 Mitsubishi MELSEC-Q Series Positioning
Available on requestQD75M4 Mitsubishi MELSEC-Q Series Positioning
Available on requestQD75MH1 Mitsubishi MELSEC-Q Series Positioning
Available on requestQD75MH4 Mitsubishi MELSEC-Q Series Positioning
Available on requestQD75P1 Mitsubishi MELSEC-Q Series Positioning
Available on requestQD75P1N Mitsubishi MELSEC-Q Series Positioning

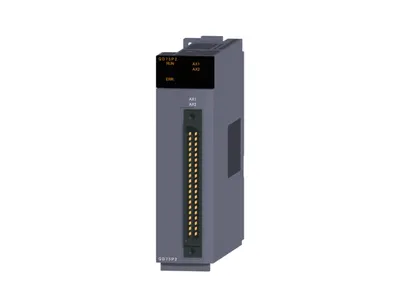

Available on requestQD75P2 Mitsubishi MELSEC-Q Series Positioning
