Mitsubishi Electric Q172HCPU-T

Mitsubishi MELSEC-Q Series Motion CPU

MPN
Q172HCPU-T
Price and lead time confirmed within 1 business day

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original Q172HCPU-T (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric Q172HCPU-T?

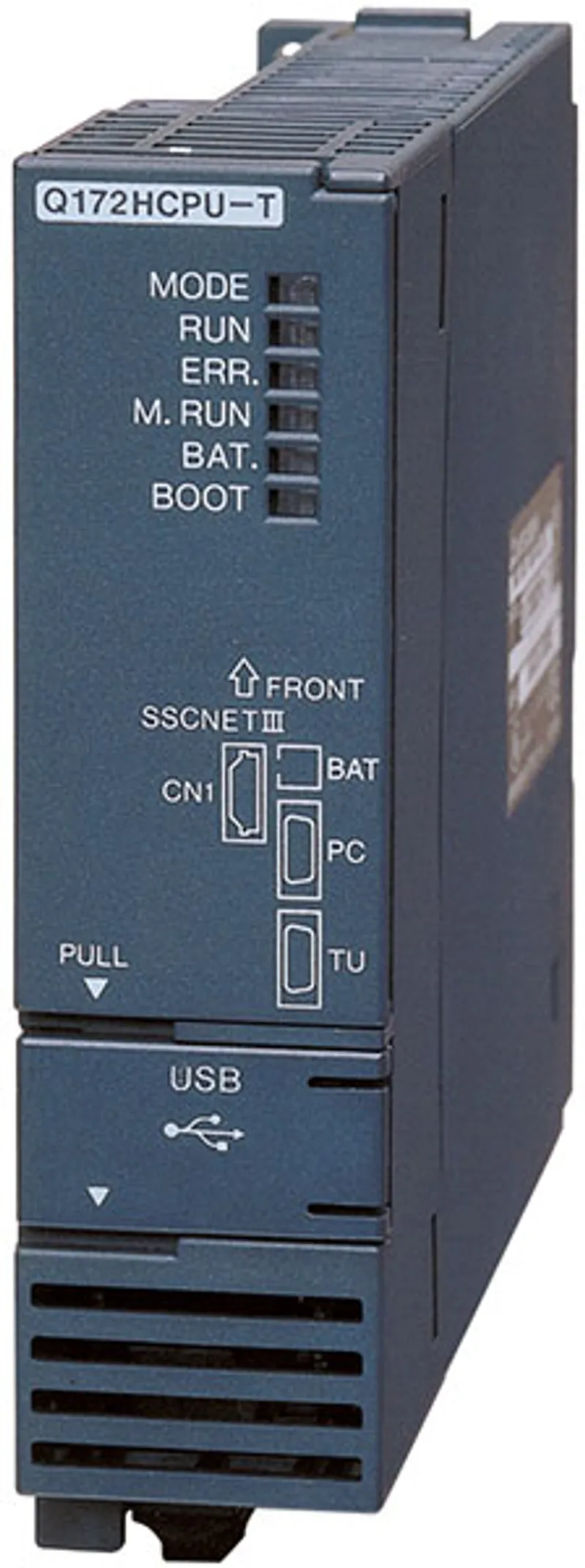

The Mitsubishi Electric Q172HCPU-T is a motion CPU in the MELSEC-Q Series. Maximum number of control axes: 8 axes , SSCNET III connection, Supporting a teaching unit. Mitsubishi Electric has discontinued it (2018/09 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-Q Series
CategoryMotion CPU
TypeMotion controller
SubtypeSSCNETⅢ
Sales status2018/09 Discontinued (Mitsubishi Electric)
OutlineMaximum number of control axes: 8 axes , SSCNET III connection, Supporting a teaching unit

Control specifications

Number of control axes: SV13/SV22/SV438 axes
Operation cycle (default): SV130.44 ms/1 to 3 axes 0.88 ms/4 to 8 axes
Operation cycle (default): SV22/SV430.88 ms/1 to 5 axes 1.77 ms/6 to 8 axes
Interpolation function: SV13/SV22/SV43Linear interpolation (up to 4 axes), 2-axis circular interpolation, helical interpolation (3 axes)
Control method: SV13/SV22Positioning control, speed control, speed-position switching control, fixed-pitch feed, constant speed control, position follow-up control, speed control with fixed position stop, speed switching control, high-speed oscillation control, synchronous control (SV22)
Control method: SV43Positioning control, constant speed positioning, high-speed oscillation control
Acceleration/deceleration processingAutomatic trapezoidal acceleration/deceleration, S-curve acceleration/deceleration
Compensation functionBacklash compensation, electronic gear, phase compensation (SV22)
Programming language: SV13/SV22Motion SFC, dedicated instruction, Mechanical support language (SV22)
Programming language: SV43EIA language (G-code)
Servo program (dedicated instruction) capacity: SV13/SV2214 k steps
Servo program (dedicated instruction) capacity: SV43248 k bytes
Number of positioning points: SV13/SV223200 points (positioning data can be set indirectly)
Number of positioning points: SV43Approx. 10600 points (positioning data can be designated indirectly)
Programming toolIBM PC/AT
PERIPHERAL I/FUSB/SSCNET
Teaching operation functionProvided (SV13 use)
Home position return functionProximity dog method (2 types), count method (3 types), data set method (2 types), dog cradle method, stopper method (2 types), limit switch combined method
JOG operation functionProvided
Manual pulse generator operation functionPossible to connect 3 modules
Synchronous encoder operation functionPossible to connect 8 modules (SV22 use)
M-code functionM-code output function provided, M-code completion wait function provided (SV13/SV22)
Limit switch output functionNumber of output points 32 points Watch data: Motion control data/word device
ROM operation functionProvided
Absolute position systemMade compatible by setting battery to servo amplifier. (Possible to select the absolute data method or incremental method for each axis)
Number of SSCNET III lines1 line
Number of Motion related modulesQ172LX: 1 module usable Q172EX-S2: 4 modules usable *1 Q173PX: 3 modules usable *2

Module specifications

Number of control axes: SV13/SV22/SV43Up to 8 axes
Operation cycle (default): SV130.44 ms/1 to 3 axes 0.88 ms/4 to 8 axes
Operation cycle (default): SV22/SV430.88 ms/1 to 5 axes 1.77 ms/6 to 8 axes
Servo amplifier connection methodSSCNET III connection (1 line)
PERIPHERAL I/FUSB/SSCNET
Teaching operation functionProvided (SV13 use)
Manual pulse generator operation functionPossible to connect 3 modules of manual pulse generator
Synchronous encoder operation functionPossible to connect 8 modules *4 (SV22 use)
Controllable modules: Q172LXUp to 1 module per CPU
Controllable modules: Q172EX-S2Up to 4 modules per CPU (SV22 use)
Controllable modules: Q173PXUp to 3 modules per CPU (incremental synchronous encoder use in SV22) Up to 1 module per CPU (only manual pulse generator use)
Controllable modules: QX_/QY_/QH_/QX_Y_Total: up to 256 points per CPU
Controllable modules: Q64AD/Q68ADV/Q68ADI/Q62DA/Q64DA/Q68DAV/Q68DAITotal: up to 256 points per CPU
Controllable modules: QI60Up to 1 module per CPU (SV13, SV22 use)
Number of stages of extension baseUp to 7 stages
5 V DC internal current consumption [A]1.45 *5
Mass [kg]0.23
Exterior dimensions [mm]104.6 (H) × 27.4 (W) × 114.3 (D)

Q172HCPU-T: frequently asked questions

Can I still buy the Q172HCPU-T now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the Q172HCPU-T, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can Q172HCPU-T be shipped?

Q172HCPU-T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up Q172HCPU-T in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for Q172HCPU-T and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for Q172HCPU-T, subject to availability and destination.
