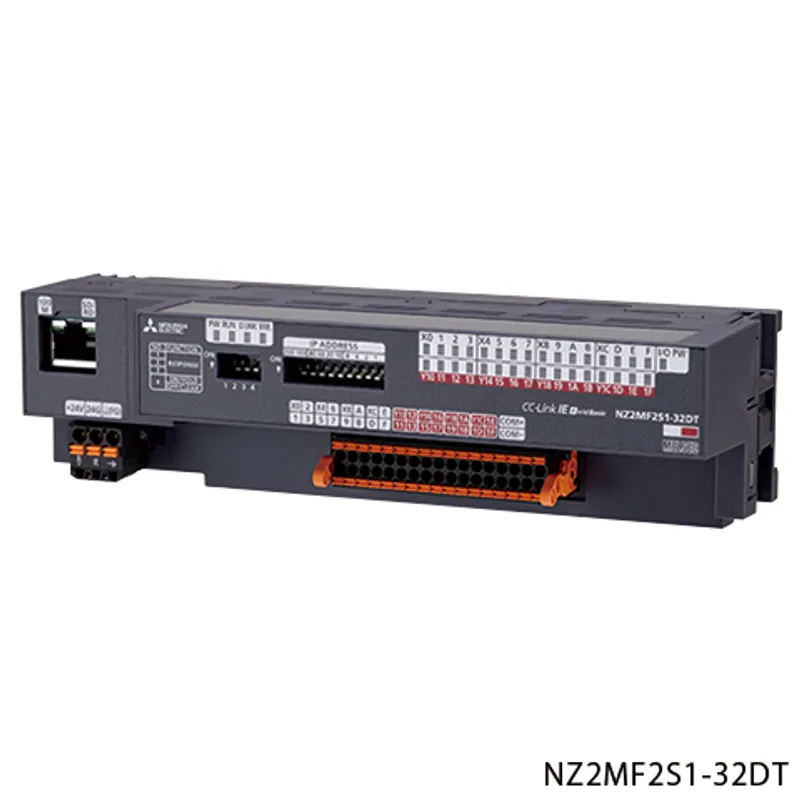

NZ2MF2S1-32DT Mitsubishi MELSEC network modules Remote I/O

MPN: NZ2MF2S1-32DT · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC network modules – CC-Link IE Field Basic
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can NZ2MF2S1-32DT be shipped?

NZ2MF2S1-32DT is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NZ2MF2S1-32DT in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NZ2MF2S1-32DT and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NZ2MF2S1-32DT, subject to availability and destination.

The Mitsubishi Electric NZ2MF2S1-32DT is a remote I/O in the MELSEC network modules. DC input: 16 points, 24 V DC, 6 mA, response time: 0/0.2/1/1.5/5/10/20/70 ms, 16 points/common, positive common, transistor output: 16 points, 24 V DC, 0.5 A/point, 4 A/common, response time: 1.5 ms, 16 points/common, sink type, 1-wire spring-clamp terminal block type. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC network modules
Category	Remote I/O
Type	I/O
Subtype	I/O
Outline	DC input: 16 points, 24 V DC, 6 mA, response time: 0/0.2/1/1.5/5/10/20/70 ms, 16 points/common, positive common, transistor output: 16 points, 24 V DC, 0.5 A/point, 4 A/common, response time: 1.5 ms, 16 points/common, sink type, 1-wire spring-clamp terminal block type

Input specifications

Input type	DC input (positive common type)
Number of input points	16 points
Rated input voltage	24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC)
Rated input current	6.0 mA TYP. (24 V DC)
Maximum number of simultaneous input points	100 %
ON voltage/ON current	15 V DC or more/4 mA or more
OFF voltage/OFF current	5 V DC or less/1.7 mA or less
Input resistance	3.8 kΩ
Input response time: OFF to ON	0 ms, 0.2 ms, 1 ms, 1.5 ms, 5 ms, 10 ms, 20 ms, 70 ms
Input response time: ON to OFF	0 ms, 0.2 ms, 1 ms, 1.5 ms, 5 ms, 10 ms, 20 ms, 70 ms
Input common terminal arrangement	16 points/common (1-wire, spring clamp terminal block type)
Input isolation method	Photocoupler

Output specifications

Output type	Transistor output (sink type)
Number of output points	16 points
Rated load voltage	24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC)
Maximum load current	0.5 A/point, 4 A/common
Maximum inrush current	Current is limited by the overload protection function.
Leakage current at OFF	0.1 mA or less
Maximum voltage drop at ON	0.3 V DC (TYP.) 0.5 A, 0.6 V DC (MAX.) 0.5 A
Output response time: OFF to ON	0.5 ms or less
Output response time: ON to OFF	1.5 ms or less (resistive load)
Surge suppressor	Zener diode
Protection function: Overheat protection function	Activated in increments of 1 point.
Protection function: Overload protection function	Limit current with overload protection at overcurrent detection: 1 A or more/point Activated in increments of 1 point.
External power supply for output part: Voltage	24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC)
External power supply for output part: Current	15 mA or less (TYP. 24 V DC/common), excluding external load current
Output common terminal arrangement	16 points/common (1-wire, spring clamp terminal block type)
Output isolation method	Photocoupler

Common specifications

Dielectric withstand voltage	Between all DC external terminals and ground: 510 V AC rms for 1 minute
Insulation resistance	Between all DC external terminals and ground: 10 MΩ or higher by 500 V DC insulation resistance tester
Protection degree	IP2X
Station type	Remote station
Number of occupied stations	1 station
Reference response time	1 ms
Module power supply: Voltage	24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC)
Module power supply: Current	79 mA or less (at 24 V DC, all points ON)
External interface	Communication part: RJ45 connector Module power supply part: Terminal block for module power supply and FG (two-piece spring clamp terminal block) I/O part: 34-point two-piece spring clamp terminal block
Communication cable	An Ethernet cable that meets the 100BASE-TX standard
External dimensions: Height	50 mm
External dimensions: Width	200 mm
External dimensions: Depth	68 mm
Weight	0.25 kg

Specifications

Operating ambient temperature	0...55 ˚C
Storage ambient temperature	-25...75 ˚C
Operating ambient humidity	5...95 %RH, non-condensing
Storage ambient humidity	5...95 %RH, non-condensing
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under intermittent vibration	Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, and Z directions
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under continuous vibration	Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance: IEC 61131-2: 2007/JIS B 3502: 2011	Three shocks in each direction per axis, on 3 mutually perpendicular axes (total of 18 shocks)
Operating atmosphere	No corrosive gases, flammable gases, less conductive dust
Operating altitude	0...2000 m
Installation location	Inside a control panel
Overvoltage category	II or less
Pollution degree	2 or less
Equipment class	Class I
