NZ2GNCE3-32D Mitsubishi MELSEC network modules Remote I/O

MPN: NZ2GNCE3-32D · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC network modules – CC-Link IE TSN
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can NZ2GNCE3-32D be shipped?

NZ2GNCE3-32D is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NZ2GNCE3-32D in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NZ2GNCE3-32D and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NZ2GNCE3-32D, subject to availability and destination.

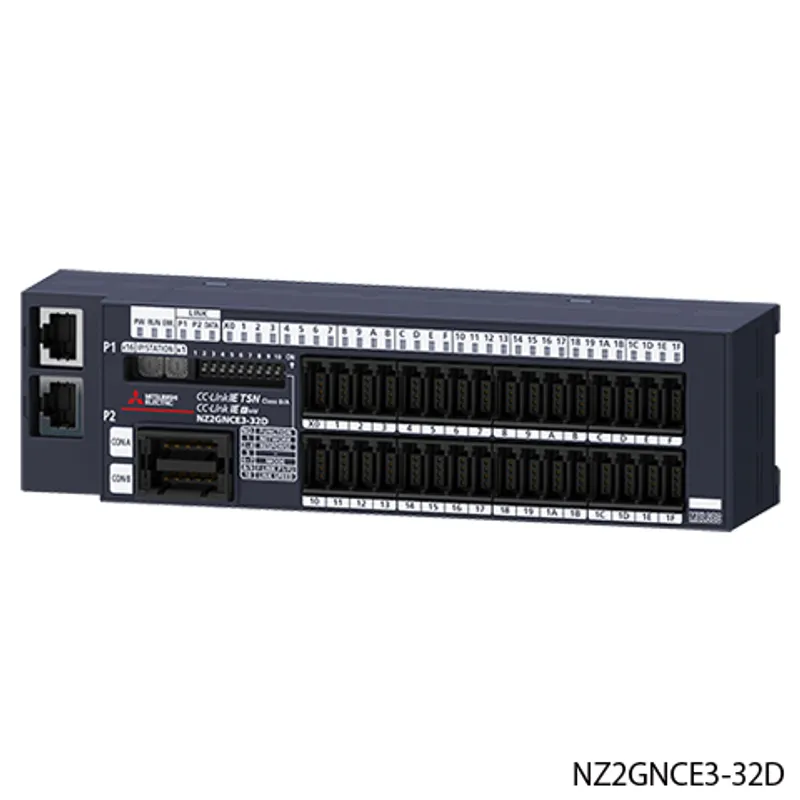

The Mitsubishi Electric NZ2GNCE3-32D is a remote I/O in the MELSEC network modules. DC input: 32 points, 24 V DC 6.6 mA, response time: 0/0.2/1/1.5/5/10/20/70 ms, 32 points/common, positive common type, sensor connector (e-CON) type. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC network modules
Category	Remote I/O
Type	I/O
Subtype	Input
Outline	DC input: 32 points, 24 V DC 6.6 mA, response time: 0/0.2/1/1.5/5/10/20/70 ms, 32 points/common, positive common type, sensor connector (e-CON) type

Input specifications

Input type	DC input (positive common type)
Number of input points	32 points
Rated input voltage	24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC)
Rated input current	6.6 mA TYP. (24 V DC)
Maximum number of simultaneous input points	100 %
ON voltage/ON current	11 V DC or more/4 mA or more
OFF voltage/OFF current	5 V DC or less/1.5 mA or less
Input resistance	3.3 kΩ
Input response time: OFF to ON	0 ms, 0.2 ms, 1 ms, 1.5 ms, 5 ms, 10 ms, 20 ms, 70 ms
Input response time: ON to OFF	0 ms, 0.2 ms, 1 ms, 1.5 ms, 5 ms, 10 ms, 20 ms, 70 ms
Input common terminal arrangement	32 points/common (3-wire, sensor connector (e-CON) type)

Common specifications

Dielectric withstand voltage	Between all DC external terminals and ground: 510 V AC for 1 minute
Insulation resistance	Between all DC external terminals and ground: 10 MΩ or higher by 500 V DC insulation resistance tester
Protection degree	IP2X
Station type	CC-Link IE TSN Communication Mode: Remote station CC-Link IE Field Network Communication Mode: Intelligent device station
CC-Link IE TSN Class	CC-Link IE TSN Class B CC-Link IE TSN Class A
CC-Link IE TSN protocol version: CC-Link IE TSN Class B	Protocol version 2.0/1.0
CC-Link IE TSN protocol version: CC-Link IE TSN Class A	Protocol version 2.0
Maximum response time for time-managed polling: CC-Link IE TSN Class A	512 µs
Network topology	Line topology, star topology (Coexistence of line topology and star topology is possible.), and ring topology
Multicast filter	Available
Cyclic transmission: RX/RY points	32 points
Cyclic transmission: RWr/RWw points	4 points
Module power supply: Voltage	24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC)
Module power supply: Current	110 mA or less (at 24 V DC, all points ON)
External interface	Communication part: RJ45 connector Module power supply part: One-touch connector plug for power supply and FG I/O part: Sensor connector (e-CON)
External dimensions: Height	54.5 mm
External dimensions: Width	200 mm
External dimensions: Depth	46 mm
Weight	0.25 kg

Ethernet specifications

Transmission specifications: Data transmission speed	1 Gbps/100 Mbps
Transmission specifications: Communication mode	1000BASE-T: Full-duplex 100BASE-TX: Full-duplex
Transmission specifications: Interface	RJ45 (AUTO MDI/MDI-X)
Transmission specifications: Maximum frame size	1518 bytes
Transmission specifications: Maximum segment length	100 m
Transmission specifications: Number of cascaded connections	Consult the manufacturer of the switching hub used.
Transmission specifications: IP version	IPv4

Specifications

Operating ambient temperature	0...55 ˚C
Storage ambient temperature	-25...75 ˚C
Operating ambient humidity	5...95 %RH, non-condensing
Storage ambient humidity	5...95 %RH, non-condensing
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under intermittent vibration	Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, and Z directions
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under continuous vibration	Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance: IEC 61131-2: 2007/JIS B 3502: 2011	Three shocks in each direction per axis, on 3 mutually perpendicular axes (total of 18 shocks)
Operating atmosphere	No corrosive gases, flammable gases, less conductive dust
Operating altitude	0...2000 m
Installation location	Inside a control panel
Overvoltage category	II or less
Pollution degree	2 or less
Equipment class	Class I

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

CC-Link IE TSN Remote I/O Module User's Manual (CC-Link IE TSN Communication Mode) (SH-082135ENG-L)	PDF · 14.85MB
CC-Link IE TSN Remote I/O Module User's Manual (CC-Link IE Field Network Communication Mode) (SH-082240ENG-K)	PDF · 18.57MB
Before Using the Product (BCN-P5999-1275E-B)	PDF · 0.23MB

12-month warrantyon all new stock

3-month warrantyon used & refurbished parts

30-day returnsno restocking fee on unused parts

Global shippingFast, tracked delivery worldwide
