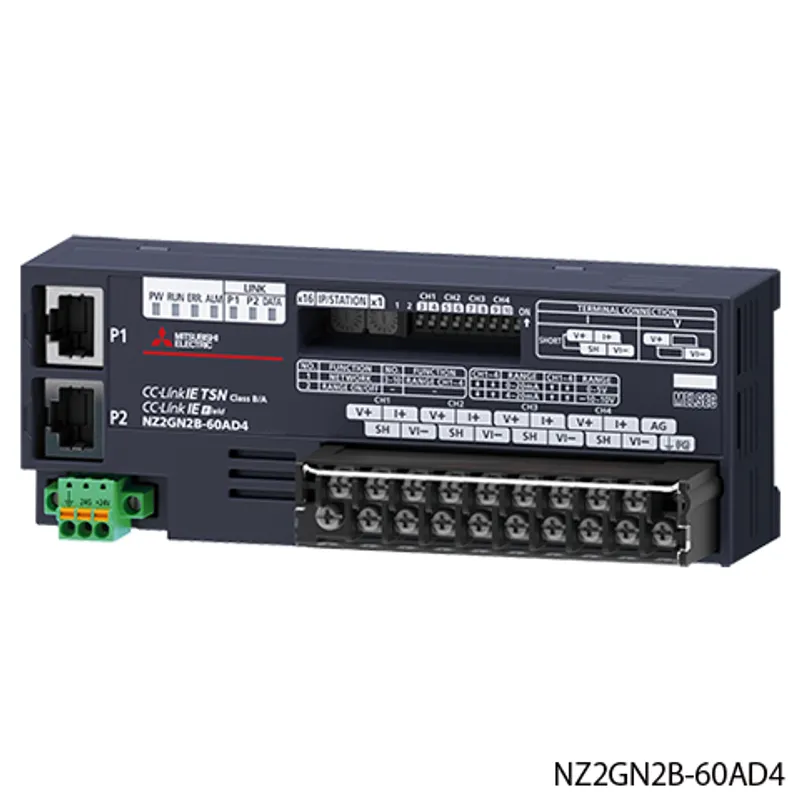

The Mitsubishi Electric NZ2GN2B-60AD4 is a remote I/O in the MELSEC network modules. 4 channels, input: -10...10 V DC, 0...20 mA DC, output (resolution): 0...16000, -16000...16000, conversion speed: 200 µs/channel. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC network modules
Category	Remote I/O
Type	Analog I/O
Subtype	Analog input
Outline	4 channels, input: -10...10 V DC, 0...20 mA DC, output (resolution): 0...16000, -16000...16000, conversion speed: 200 µs/channel

Specifications

Station type	Remote station
Communication speed	• 1 Gbps • 100 Mbps *1
CC-Link IE TSN Class	• CC-Link IE TSN Class B • CC-Link IE TSN Class A *3
CC-Link IE TSN protocol version: CC-Link IE TSN Class B	CC-Link IE TSN Protocol version 1.0 2 CC-Link IE TSN Protocol version 2.0 3
CC-Link IE TSN protocol version: CC-Link IE TSN Class A	CC-Link IE TSN Protocol version 2.0 3 4
Connection with 121 or more stations	Available *5
Maximum response time for time-managed polling (for CC-Link IE TSN Class A) *6	512 µs
Network topology	Line topology, star topology, mixture of star topology and line topology, ring topology *7
Number of analog input points	4 channels/module
Analog input: Voltage	-10...+10 V DC (input resistance 1 MΩ)
Analog input: Current	0...20 mA DC (input resistance 250 Ω)
Digital output	16-bit signed binary value (-16384...16383)
I/O characteristics, maximum resolution *8: Voltage input	Input range: -10...10 V, Digital output value: -16000...16000, Maximum resolution: 0.625 mV Input range: 0...10 V, Digital output value: 0...16000, Maximum resolution: 0.625 mV Input range: 0...5 V, Digital output value: 0...16000, Maximum resolution: 0.3215 mV Input range: 1...5 V, Digital output value: 0...16000, Maximum resolution: 0.25 mV
I/O characteristics, maximum resolution *8: Current input	Input range: 0...20 mA, Digital output value: 0...16000, Maximum resolution: 1.25 µA Input range: 4...20 mA, Digital output value: 0...16000, Maximum resolution: 1 µa
Conversion accuracy *9: Ambient temperature (25 ± 5 ℃)	Within ±0.1 %
Conversion accuracy *9: Ambient temperature (0...55 ˚C)	Within ±0.2 %
Conversion speed	200 µs/channel
Absolute maximum input: Voltage	±15 V
Absolute maximum input: Current	±30 mA
Isolation method	Between communication system terminal and all analog input terminals: Digital isolator isolation Between power supply system terminal and all analog input terminals: Transformer isolation Between input channels: Non-isolation
Noise immunity	Between all power supply and communication system terminals and all analog input terminals 510 VAC for 1 minute
Noise immunity: External interface: Communication part	Noise voltage 500 Vp-p, noise width 1 µs, noise frequency 25...60 Hz (noise simulator condition)
External interface: Module power supply part	RJ45 connector
External interface: I/O part	Terminal block for module power supply and FG (2-piece spring clamp terminal block)
Applicable wire size: For power supply	18-point 2-piece terminal block (M3 screw)
Applicable wire size: For I/O	Stranded wire: 0.3...1.5 mm 2 (22...16 AWG), terminal slot size: 2.4 mm × 1.5 mm
Applicable solderless terminal: Terminal block for module power supply and FG	Stranded wire: 0.3...2.0 mm 2 (22...14 AWG)
Applicable solderless terminal: Analog input terminal block	Applicable solderless terminal
Multicast filter	Applicable solderless terminal
External power supply	Available
Weight	24 VDC (Allowable voltage range: 20.4...28.8 VDC, ripple ratio within 5 %) Current consumption: 150 mA Inrush current: 40.7 A, 0.72 ms or lower
External dimensions: Height	0.20 kg
External dimensions: Width	54.5 mm
External dimensions: Depth	147 mm

Ethernet specifications

Transmission specifications: Communication mode: 1000BASE-T	• 1 Gbps • 100 Mbps
Transmission specifications: Communication mode: 100BASE-TX	Full-duplex
Transmission specifications: Interface	Full-duplex
Transmission specifications: Maximum frame size	RJ45 connector (AUTO MDI/MDI-X)
Transmission specifications: Maximum segment length	1518 bytes
Transmission specifications: Number of cascaded connections: 1000BASE-T	100 m
Transmission specifications: Number of cascaded connections: 100BASE-TX	Consult the manufacturer of the switching hub used.
Transmission specifications: IP version	Consult the manufacturer of the switching hub used.
Transmission specifications: SNMP: Version	IPv4
Transmission specifications: SNMP: Supported MIB	v2c

Specifications

Operating ambient temperature	0...55 ˚C
Storage ambient temperature	-25...75 ˚C
Operating ambient humidity	5...95 %RH, non-condensing
Storage ambient humidity	5...95 %RH, non-condensing
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under intermittent vibration	Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, Z directions
Vibration resistance: Compliant with JIS B 3502 and IEC 61131-2: Under continuous vibration	Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance	Compliant with IEC 61131-2/JIS B 3502 (147 m/s 2 , 3 times each in X, Y, and Z directions)
Operating atmosphere	No corrosive gases
Operating altitude	0...2000 m
Installation location	Inside a control panel
Overvoltage category	II or less
Pollution degree	2 or less
Equipment class	Class I
