MR-MV200 Mitsubishi Motion controller Network-related products
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Mitsubishi Motion controller – Network Related Products |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can MR-MV200 be shipped?
MR-MV200 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up MR-MV200 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for MR-MV200 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for MR-MV200, subject to availability and destination.

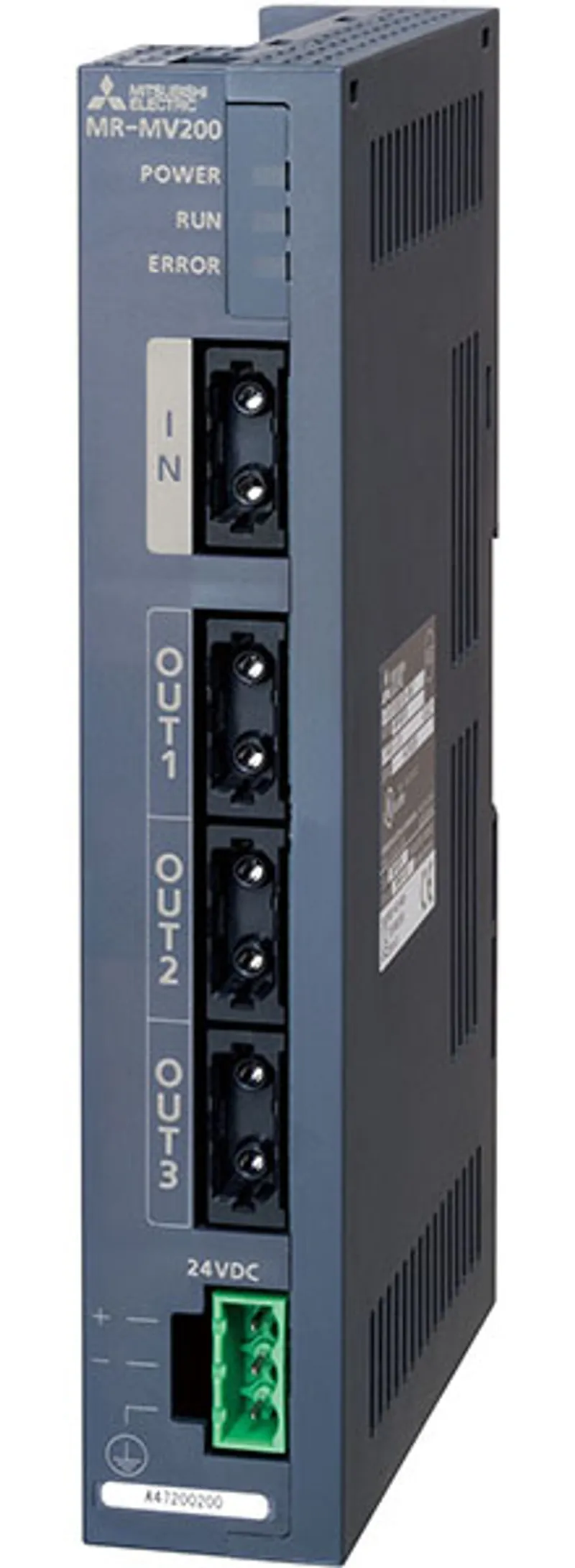

The Mitsubishi Electric MR-MV200 is a network-related products in the Motion controller. Optical hub unit Number of optical hub units: up to 16 units/line. Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | Motion controller |
| Category | Network-related products |
| Type | Optical Hub Unit |
| Outline | Optical hub unit Number of optical hub units: up to 16 units/line |
Specifications
| Input power supply: Input voltage [V] | 21.6 V DC to 26.4 V DC (24 V DC ±10 %) |
| Input power supply: Input current [A] | 0.2 |
| Power consumption [W] | 4.8 |
| Mass [kg] | 0.2 |
| Mounting method | Directly mounted to the control panel or with DIN rail |
| Cable length [m] | Up to 100 |
| Number of optical hub units | Up to 16 units/line |
| Number of servo amplifiers *5 | Up to 16 axes/line |
| Exterior dimensions [mm] | 168 (H) × 30 (W) × 100 (D) |
Downloads & documentation
Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.
Data sheets & manuals
| SSCNETⅢ/H Compatible Optical Hub Unit User's Manual MR-MV200 (BCN-B62008-347E-A) | PDF · 0.35MB |
