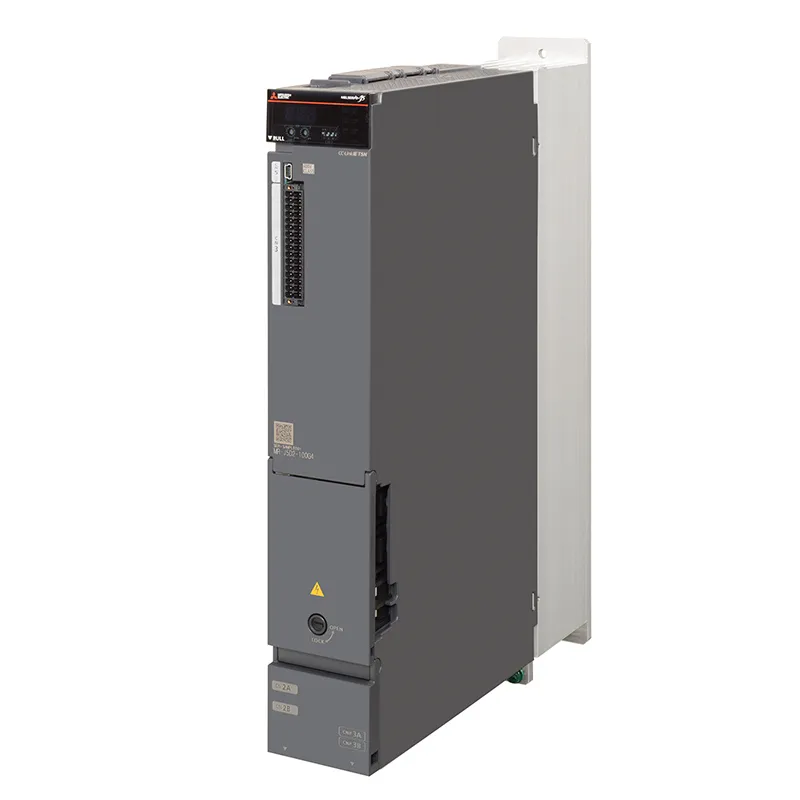

Mitsubishi Electric MR-J5D2-100G4
Mitsubishi MELSERVO servo MELSERVO-J5 series
- MPN
- MR-J5D2-100G4
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →
What is the Mitsubishi Electric MR-J5D2-100G4?
The Mitsubishi Electric MR-J5D2-100G4 is a MELSERVO-J5 series in the MELSERVO servo. CC-Link IE TSN. Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | MELSERVO servo |
| Category | MELSERVO-J5 series |
| Type | 400 V AC |
| Outline | CC-Link IE TSN |
Specifications
| Series | MELSERVO-J5 series |
| Power class | 400 V AC |
| Model name | MR-J5D2-100G4 |
| Compatible converter unit model | MR-CV_4 *2 |
| Capacity [kW] | 1 |
| Command interface | CC-Link IE TSN |
| Output: Voltage | 3-phase 0 V AC to 480 V AC |
| Output: Rated current [A] | 3.0 |
| Main circuit power supply input | Main circuit power is supplied from the power regeneration converter unit to the drive unit. |
| Control circuit power supply input: Voltage/frequency: AC input | 1-phase 380 V AC to 480 V AC, 50 Hz/60 Hz |
| Control circuit power supply input: Rated current [A] | 0.2 |
| Control circuit power supply input: Permissible voltage fluctuation: AC input | 1-phase 323 V AC to 528 V AC |
| Control circuit power supply input: Permissible frequency fluctuation | ±5 % maximum |
| Control circuit power supply input: Power consumption [W] | 40 |
| Interface power supply | 24 V DC ± 10 % (required current capacity: 0.35 A (including CN8 connector signals)) |
| Control method | Sine-wave PWM control/current control method |
| Dynamic brake *4 | Built-in |
| Command communication cycle | · CC-Link IE TSN Class B *7 Communication cycle *5 *6 : 62.5 μs, 125 μs, 250 μs, 500 μs, 1 ms, 1.5 ms, 2 ms, 2.5 ms, 3 ms, 3.5 ms, 4 ms, 4.5 ms, 5 ms, 5.5 ms, 6 ms, 6.5 ms, 7 ms, 7.5 ms, 8 ms Protocol version: 1.0/2.0 *12 · CC-Link IE TSN Class A *7 *12 *13 Communication cycle *5 : 500 μs to 500 ms Protocol version: 2.0 |
| Communication function | USB: Connect a personal computer (MR Configurator2 compatible) |
| A/B/Z-phase pulse output | Compatible (A/B-phase pulse) *6 *8 |
| Analog monitor | 2 channels |
| Positioning mode *6 | Point table method |
| Fully closed loop control *6 | Two-wire type communication method |
| Load-side encoder interface *3 | Mitsubishi Electric high-speed serial communication |
| Servo functions | Advanced vibration suppression control II, adaptive filter II, robust filter, quick tuning, auto tuning, one-touch tuning, tough drive function, drive recorder function, machine diagnosis function (including failure prediction), power monitoring function, lost motion compensation function, scale measurement function *6 , super trace control, continuous operation to torque control mode *6 |
| Protective functions | Overcurrent shut-off, overload shut-off (electronic thermal), servo motor overheat protection, encoder error protection, undervoltage protection, instantaneous power failure protection, overspeed protection, error excessive protection, magnetic pole detection protection, linear servo control fault protection |
| Safety sub-function | Refer to " Safety Sub-Functions " for safety sub-functions. |
| Safety performance: Satisfied standards *10 | EN ISO 13849-1:2015 Category 4 PL e, IEC 61508 SIL 3, EN IEC 62061 maximum SIL 3, EN 61800-5-2 |
| Safety performance: Mean time to dangerous failure (MTTFd) | MTTFd ≥ 100 [years] (750a) |
| Safety performance: Diagnostic coverage (DC) | DC = Medium, 96.5 % |
| Safety performance: Probability of dangerous Failure per Hour (PFH) | PFH = 3 × 10 -9 [1/h] |
| Safety performance: Mission time (T M ) *11 | T M = 20 [years] |
| Satisfied standards | Refer to " Standards and certifications (by product) Products " for compliance with global standards and regulations. |
| Structure (IP rating) | Natural cooling, open (IP20) *1 |
| Environment: Ambient temperature: Operation | 0 °C to 60 °C (non-freezing), Class 3K3 (IEC 60721-3-3) |
| Environment: Ambient temperature: Transportation | -25 °C to 70 °C (non-freezing), Class 2K12 (IEC 60721-3-2) |
| Environment: Ambient temperature: Storage | -25 °C to 70 °C (non-freezing), Class 1K4 (IEC 60721-3-1) |
| Environment: Ambient humidity | 5 %RH to 95 %RH (non-condensing) |
| Environment: Ambience | Indoors (no direct sunlight); no corrosive gas, inflammable gas, oil mist or dust |
| Environment: Altitude/atmospheric pressure: Operation | Altitude: 2000 m or less *9 |
| Environment: Altitude/atmospheric pressure: Transportation | Overland/sea transportation, or transporting on an airplane whose cargo compartment is pressurized at 700 hPa or higher |
| Environment: Altitude/atmospheric pressure: Storage | Atmospheric pressure: 700 hPa to 1060 hPa (Equivalent to altitudes from -400 m to 3000 m) |
| Environment: Vibration resistance: Operation | Under intermittent vibration: 10 Hz to 57 Hz, displacement amplitude 0.075 mm 57 Hz to 150 Hz, acceleration amplitude 9.8 m/s 2 Class 3M1 (IEC 60721-3-3) Under continuous vibration (directions of X, Y, and Z axes): 10 Hz to 55 Hz, acceleration amplitude 5.9 m/s 2 |
| Environment: Vibration resistance: Transportation | 2 Hz to 9 Hz, displacement amplitude (single amplitude) 7.5 mm 9 Hz to 200 Hz, acceleration amplitude 20 m/s 2 Class 2M3 (IEC 60721-3-2) |
| Environment: Vibration resistance: Storage | 2 Hz to 9 Hz, displacement amplitude (single amplitude) 1.5 mm 9 Hz to 200 Hz, acceleration amplitude 5 m/s 2 Class 1M2 (IEC 60721-3-1) |
| Mass [kg] | 5.7 |
No matching specifications
Downloads & documentation
Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.
Data sheets & manuals
- MR-J5 User's Manual (Function) (SH-030300ENG-P)
- MR-J5-G/MR-J5W-G User's Manual (Communication Function) (SH-030302ENG-P)
- MR-J5-G/MR-J5W-G User's Manual (Object Dictionary) (SH-030304ENG-P)
- MR-J5 User's Manual (Adjustment) (SH-030306ENG-J)
- MR-J5-G/MR-J5W-G User's Manual (Parameters) (SH-030308ENG-P)
- MR-J5 User's Manual (Troubleshooting) (SH-030312ENG-P)
- MR-J5 Partner's Encoder User's Manual (SH-030320ENG-N)
- MR-J5D-G User's Manual (Introduction) (IB-0300538ENG-J)
- MR-J5D User's Manual (Hardware) (IB-0300548ENG-F)
- MR-CV Power Regeneration Converter Unit User's Manual (IB-0300553ENG-B)
