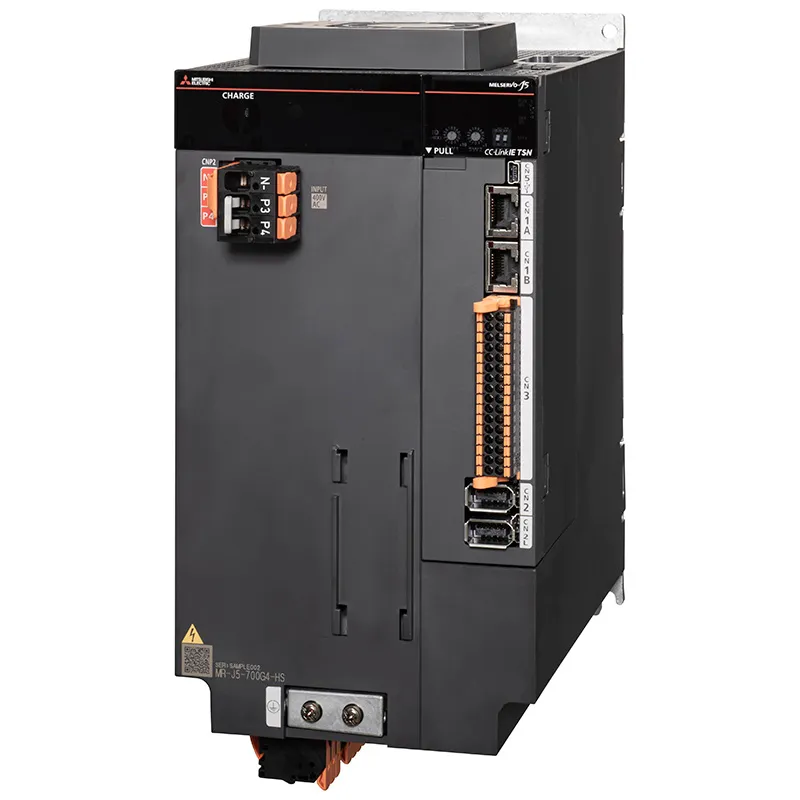

MR-J5-10G-HS Mitsubishi MELSERVO servo MELSERVO-J5 series

MPN: MR-J5-10G-HS · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSERVO servo – Servo amplifiers
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can MR-J5-10G-HS be shipped?

MR-J5-10G-HS is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up MR-J5-10G-HS in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for MR-J5-10G-HS and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for MR-J5-10G-HS, subject to availability and destination.

The Mitsubishi Electric MR-J5-10G-HS is a MELSERVO-J5 series in the MELSERVO servo. CC-Link IE TSN. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSERVO servo
Category	MELSERVO-J5 series
Type	200 V AC
Outline	CC-Link IE TSN

Specifications

Series	MELSERVO-J5 series
Power class	200 V AC
Model name	MR-J5-10G-HS
Capacity [kW]	0.1
Command interface *1	CC-Link IE TSN
Output: Voltage	3-phase 0 V AC to 240 V AC
Output: Rated current [A]	1.3
Main circuit power supply input: Voltage/frequency *2: AC input	3-phase or 1-phase 200 V AC to 240 V AC, 50 Hz/60 Hz
Main circuit power supply input: Voltage/frequency 2: DC input 22	283 V DC to 340 V DC
Main circuit power supply input: Rated current [A] *20	0.9
Main circuit power supply input: Permissible voltage fluctuation: AC input	3-phase or 1-phase 170 V AC to 264 V AC
Main circuit power supply input: Permissible voltage fluctuation: DC input *22	241 V DC to 374 V DC
Main circuit power supply input: Permissible frequency fluctuation	±5 % maximum
Control circuit power supply input: Voltage/frequency: AC input	1-phase 200 V AC to 240 V AC, 50 Hz/60 Hz
Control circuit power supply input: Voltage/frequency: DC input *22	283 V DC to 340 V DC
Control circuit power supply input: Rated current [A]	0.2
Control circuit power supply input: Permissible voltage fluctuation: AC input	1-phase 170 V AC to 264 V AC
Control circuit power supply input: Permissible voltage fluctuation: DC input *22	241 V DC to 374 V DC
Control circuit power supply input: Permissible frequency fluctuation	±5 % maximum
Control circuit power supply input: Power consumption [W]	30
Interface power supply	24 V DC ± 10 % (required current capacity: 0.3 A (including CN8 connector signals))
Control method	Sine-wave PWM control/current control method
Dynamic brake *7	Built-in
Command communication cycle	・CC-Link IE TSN Class B 10 Communication cycle 11 12 : 31.25 μs, 62.5 μs, 125 μs, 250 μs, 500 μs, 1 ms, 1.5 ms, 2 ms, 2.5 ms, 3 ms, 3.5 ms, 4 ms, 4.5 ms, 5 ms, 5.5 ms, 6 ms, 6.5 ms, 7 ms, 7.5 ms, 8 ms Protocol version: 1.0/2.0 13 ・CC-Link IE TSN Class A 10 13 14 Communication cycle 11 : 500 μs to 500 ms Protocol version: 2.0
Communication function	USB: Connect a personal computer (MR Configurator2 compatible)
A/B/Z-phase pulse output	Compatible
Analog monitor	2 channels
Positioning mode *12	Point table method
Fully closed loop control *12	Two-wire/four-wire type communication method
Load-side encoder interface	Mitsubishi Electric high-speed serial communication, A/B/Z-phase differential input signal
Servo functions	Advanced vibration suppression control II, adaptive filter II, robust filter, quick tuning, auto tuning, one-touch tuning, tough drive function, drive recorder function, machine diagnosis function (including failure prediction), power monitoring function, lost motion compensation function, scale measurement function 12 , super trace control, continuous operation to torque control mode 12 , drive
Protective functions	Overcurrent shut-off, regenerative overvoltage shut-off, overload shut-off (electronic thermal), servo motor overheat protection, encoder error protection, regenerative error protection, undervoltage protection, instantaneous power failure protection, overspeed protection, error excessive protection, magnetic pole detection protection, linear servo control fault protection
Safety sub-function	Refer to " Safety Sub-Functions " for safety sub-functions.
Safety performance: Satisfied standards *15	EN ISO 13849-1:2015 Category 4 PL e, IEC 61508 SIL 3, EN IEC 62061 maximum SIL 3, EN 61800-5-2
Safety performance: Mean time to dangerous failure (MTTFd)	MTTFd ≥ 100 [years] (300a)
Safety performance: Diagnostic coverage (DC)	DC = Medium, 96.5 %
Safety performance: Probability of dangerous Failure per Hour (PFH)	PFH = 7.7 × 10 -9 [1/h]
Safety performance: Mission time (T M ) *18	T M = 20 [years]
Satisfied standards	Refer to " Standards and certifications (by product) Products " for compliance with global standards and regulations.
Structure (IP rating)	Natural cooling, open (IP20) *16
Close mounting: 3-phase power supply input	Possible *24
Close mounting: 1-phase power supply input	Possible *24
Environment: Ambient temperature: Operation	0 °C to 60 °C (non-freezing), Class 3K3 (IEC 60721-3-3)
Environment: Ambient temperature: Transportation	-25 °C to 70 °C (non-freezing), Class 2K12 (IEC 60721-3-2)
Environment: Ambient temperature: Storage	-25 °C to 70 °C (non-freezing), Class 1K4 (IEC 60721-3-1)
Environment: Ambient humidity	5 %RH to 95 %RH (non-condensing)
Environment: Ambience	Indoors (no direct sunlight); no corrosive gas, inflammable gas, oil mist or dust
Environment: Altitude/atmospheric pressure: Operation	Altitude: 2000 m or less *19
Environment: Altitude/atmospheric pressure: Transportation	Overland/sea transportation, or transporting on an airplane whose cargo compartment is pressurized at 700 hPa or higher
Environment: Altitude/atmospheric pressure: Storage	Atmospheric pressure: 700 hPa to 1060 hPa (Equivalent to altitudes from -400 m to 3000 m)
Environment: Vibration resistance: Operation	Under intermittent vibration: 10 Hz to 57 Hz, displacement amplitude 0.075 mm 57 Hz to 150 Hz, acceleration amplitude 9.8 m/s 2 Class 3M1 (IEC 60721-3-3) Under continuous vibration (directions of X, Y, and Z axes): 10 Hz to 55 Hz, acceleration amplitude 5.9 m/s 2
Environment: Vibration resistance: Transportation	2 Hz to 9 Hz, displacement amplitude (single amplitude) 7.5 mm 9 Hz to 200 Hz, acceleration amplitude 20 m/s 2 Class 2M3 (IEC 60721-3-2)
Environment: Vibration resistance: Storage	2 Hz to 9 Hz, displacement amplitude (single amplitude) 1.5 mm 9 Hz to 200 Hz, acceleration amplitude 5 m/s 2 Class 1M2 (IEC 60721-3-1)
Mass [kg]	0.8

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

MR-J5-G/MR-J5W-G User's Manual (Introduction) (SH-030294ENG-P)	PDF · 2.29MB
MR-J5 User's Manual (Hardware) (SH-030298ENG-Q)	PDF · 25.30MB
MR-J5 User's Manual (Function) (SH-030300ENG-P)	PDF · 7.48MB
MR-J5-G/MR-J5W-G User's Manual (Communication Function) (SH-030302ENG-P)	PDF · 1.00MB
MR-J5-G/MR-J5W-G User's Manual (Object Dictionary) (SH-030304ENG-P)	PDF · 1.46MB
MR-J5 User's Manual (Adjustment) (SH-030306ENG-J)	PDF · 1.03MB
MR-J5-G/MR-J5W-G User's Manual (Parameters) (SH-030308ENG-P)	PDF · 1.94MB
MR-J5 User's Manual (Troubleshooting) (SH-030312ENG-P)	PDF · 1.86MB
MR-J5 Partner's Encoder User's Manual (SH-030320ENG-N)	PDF · 1.92MB
EMC Installation Guidelines (IB-67310-M)	PDF · 4.44MB
