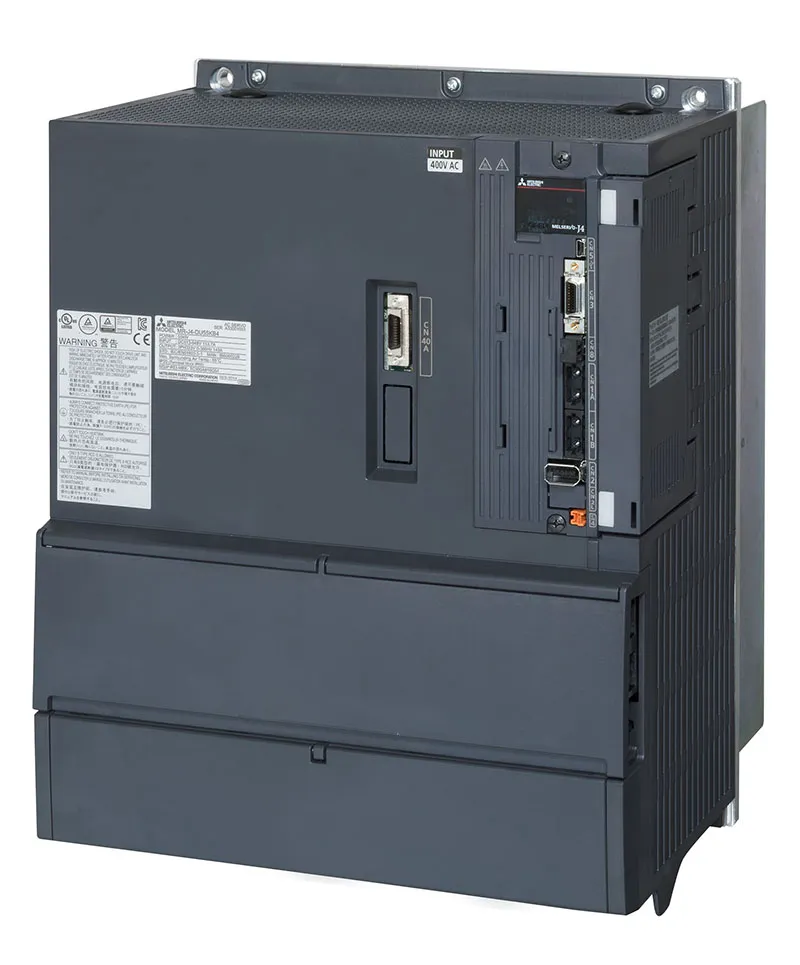

MR-J4-DU30KA Mitsubishi MELSERVO servo MELSERVO-J4 series

MPN: MR-J4-DU30KA · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSERVO servo – Servo amplifiers
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can MR-J4-DU30KA be shipped?

MR-J4-DU30KA is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up MR-J4-DU30KA in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for MR-J4-DU30KA and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for MR-J4-DU30KA, subject to availability and destination.

The Mitsubishi Electric MR-J4-DU30KA is a MELSERVO-J4 series in the MELSERVO servo. General-Purpose Interface. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSERVO servo
Category	MELSERVO-J4 series
Type	200 V AC
Outline	General-Purpose Interface

Specifications

Series	MELSERVO-J4 series
Power class	200 V AC
Model name	MR-J4-DU30KA
Compatible converter unit model	MR-CR55K *1
Capacity [kW]	30
Command interface	General-Purpose Interface
Output: Rated voltage	3-phase 170 V AC
Output: Rated current [A]	174
Main circuit power supply input	Main circuit power is supplied from the resistance regeneration converter unit to the drive unit. *1
Control circuit power supply input: Voltage/frequency: AC input	1-phase 200 V AC to 240 V AC, 50 Hz/60 Hz
Control circuit power supply input: Rated current [A]	0.3
Control circuit power supply input: Permissible voltage fluctuation: AC input	1-phase 170 V AC to 264 V AC
Control circuit power supply input: Permissible frequency fluctuation	±5 % maximum
Control circuit power supply input: Power consumption [W]	45
Interface power supply	24 V DC ± 10 % (required current capacity: 0.5 A (including CN8 connector signals))
Control method	Sine-wave PWM control/current control method
Dynamic brake *2	External option *3
Communication function	USB: Connect a personal computer (MR Configurator2 compatible) RS-422/RS-485: 1:n communication (up to 32 axes) *4
A/B/Z-phase pulse output	Compatible
Analog monitor	2 channels
Position control mode: Maximum input pulse frequency	4 Mpulses/s (when using differential receiver), 200 kpulses/s (when using open collector)
Position control mode: Positioning feedback pulse	Encoder resolution: 22 bits
Position control mode: Command pulse multiplying factor	Electronic gear A/B multiple, A: 1 to 16777215, B: 1 to 16777215, 1/10
Position control mode: In-position range setting	0 pulse to ±65535 pulses (command pulse unit)
Position control mode: Error excessive	±3 rotations
Position control mode: Torque limit	Set by parameters or external analog input (0 V DC to +10 V DC/maximum torque)
Speed control mode: Speed control range	Analog speed command 1:2000, internal speed command 1:5000
Speed control mode: Analog speed command input	0 V DC to ±10 V DC/rated speed (Speed at 10 V is changeable with [Pr. PC12].)
Speed control mode: Speed fluctuation rate	±0.01 % maximum (load fluctuation: 0 % to 100 %), 0 % (power fluctuation: ±10 %) ±0.2 % maximum (ambient temperature: 25 °C ± 10 °C) only when using analog speed command
Speed control mode: Torque limit	Set by parameters or external analog input (0 V DC to +10 V DC/maximum torque)
Torque control mode: Analog torque command input	0 V DC to ±8 V DC/maximum torque (input impedance: 10 kΩ to 12 kΩ)
Torque control mode: Speed limit	Set by parameters or external analog input (0 V DC to ± 10 V DC/rated speed)
Positioning mode *5	Not compatible
Fully closed loop control	Two-wire type communication method
Load-side encoder interface	Mitsubishi Electric high-speed serial communication
Servo functions	Advanced vibration suppression control II, adaptive filter II, robust filter, auto tuning, one-touch tuning, tough drive function, drive recorder function, machine diagnosis function, power monitoring function, super trace control, lost motion compensation function
Protective functions	Overcurrent shut-off, overload shut-off (electronic thermal), servo motor overheat protection, encoder error protection, undervoltage protection, instantaneous power failure protection, overspeed protection, error excessive protection
Safety sub-function	STO (IEC/EN 61800-5-2)
Safety performance: Satisfied standards *6	EN ISO 13849-1:2015 Category 3 PL e, IEC 61508 SIL 3, EN 62061 SIL CL 3, EN 61800-5-2
Safety performance: Response performance	8 ms or less (STO input OFF → energy shut-off)
Safety performance: Test pulse input (STO) *7	Test pulse interval: 1 Hz to 25 Hz, test pulse off time: 1 ms maximum
Safety performance: Mean time to dangerous failure (MTTFd)	MTTFd ≥ 100 [years] (314a)
Safety performance: Diagnostic coverage (DC)	DC = Medium, 97.6 [%]
Safety performance: Probability of dangerous Failure per Hour (PFH)	PFH = 6.4 × 10 -9 [1/h]
Satisfied standards	Refer to " Standards and certifications (by product) Products " for compliance with global standards and regulations.
Structure (IP rating)	Force cooling, open (IP20) *8
Close mounting: 3-phase power supply input	Not possible
Environment: Ambient temperature: Operation	0 °C to 55 °C (non-freezing)
Environment: Ambient temperature: Storage	-20 °C to 65 °C (non-freezing)
Environment: Ambient humidity	Operation/storage: 5 %RH to 90 %RH (non-condensing)
Environment: Ambience	Indoors (no direct sunlight); no corrosive gas, inflammable gas, oil mist or dust
Environment: Altitude	2000 m or less above sea level *9
Environment: Vibration resistance	5.9 m/s 2 at 10 Hz to 55 Hz (directions of X, Y, and Z axes)
Mass [kg]	21

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

MR-J4-_A_(-RJ)/MR-J4-03A6(-RJ) SERVO AMPLIFIER INSTRUCTION MANUAL (SH-030107-V)	PDF · 13.84MB
MR-CV Power Regeneration Converter Unit User's Manual (IB-0300553ENG-B)	PDF · 7.90MB
MR-CV_/MR-CR55K_ /MR-J4-DU_B_(-RJ)/MR-J4-DU_A_(-RJ) SERVO AMPLIFIER INSTRUCTION MANUAL (SH-030153-G)	PDF · 9.66MB
MELSERVO-J4 Servo Amplifier Instruction Manual (Troubleshooting) (SH-030109ENG-T)	PDF · 1.08MB
LINEAR ENCODER INSTRUCTION MANUAL (SH-030111-J)	PDF · 0.75MB
EMC Installation Guidelines (IB-67310-M)	PDF · 4.44MB
MR-CV/MR-CR/MR-J4-DU Instructions and Cautions for Safe Use of AC Servos (IB-0300228E-J)	PDF · 0.65MB
HG-MR/HG-KR/HG-SR/HG-JR/HG-RR/HG-UR/HG-AK SERVO MOTOR INSTRUCTION MANUAL (Vol.3) (SH-030113-Q)	PDF · 10.48MB
