Mitsubishi Electric MR-J4-03A6-RJ

Mitsubishi MELSERVO servo MELSERVO-J4 series

MPN
MR-J4-03A6-RJ
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

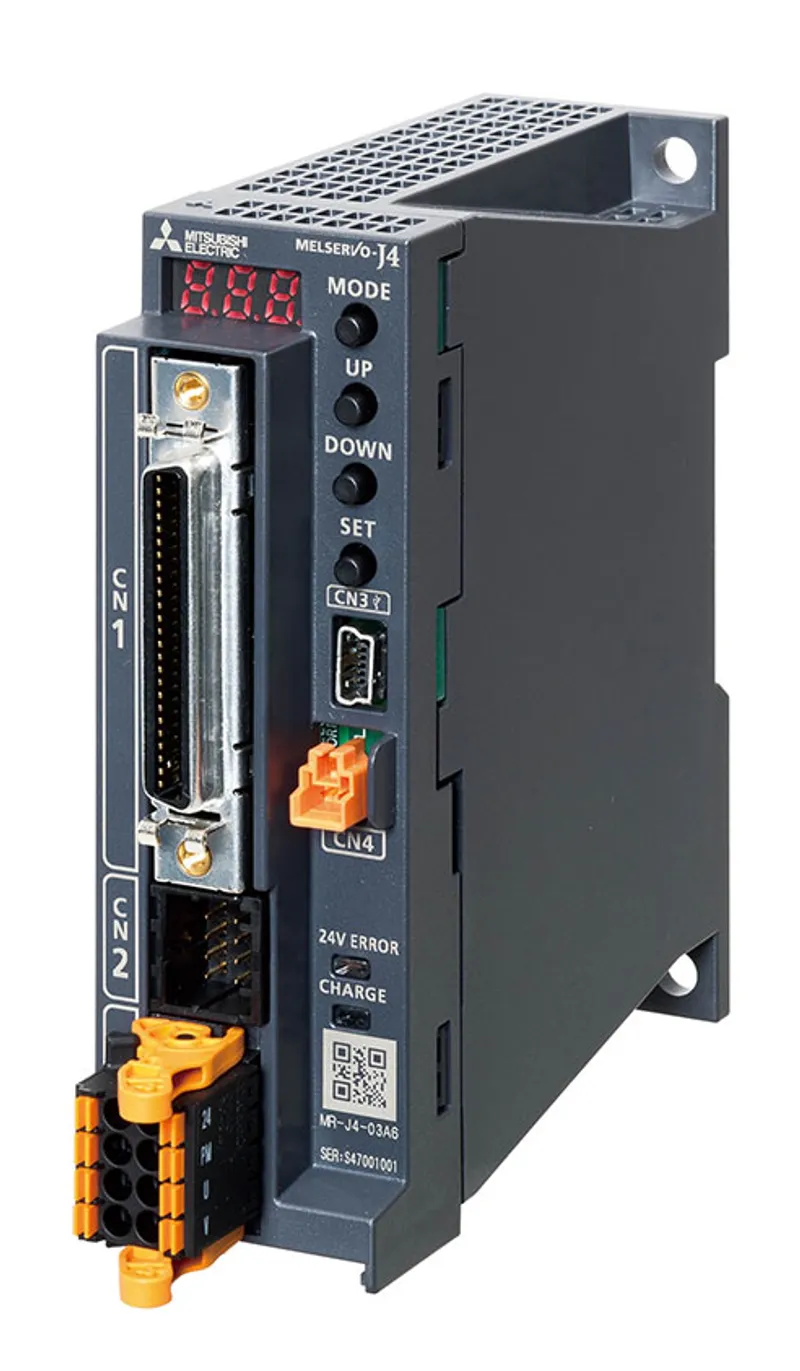

What is the Mitsubishi Electric MR-J4-03A6-RJ?

The Mitsubishi Electric MR-J4-03A6-RJ is a MELSERVO-J4 series in the MELSERVO servo. General-Purpose Interface. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSERVO servo
CategoryMELSERVO-J4 series
Type48 V DC/24 V DC
OutlineGeneral-Purpose Interface

Specifications

SeriesMELSERVO-J4 series
Power class48 V DC/24 V DC
Model nameMR-J4-03A6-RJ
Capacity [kW]0.03
Command interfaceGeneral-Purpose Interface
Output: Rated voltage3-phase 13 V AC
Output: Rated current [A]2.4
Main circuit power supply input: Voltage/frequency *1: DC input48 V DC/24 V DC *2
Main circuit power supply input: Rated current [A]For 48 V DC: 1.2 A For 24 V DC: 2.4 A
Main circuit power supply input: Permissible voltage fluctuation: DC inputFor 48 V DC: 40.8 V DC to 55.2 V DC For 24 V DC: 21.6 V DC to 26.4 V DC
Control circuit power supply input: Voltage/frequency: DC input24 V DC
Control circuit power supply input: Rated current [A]0.2
Control circuit power supply input: Permissible voltage fluctuation: DC input21.6 V DC to 26.4 V DC
Control circuit power supply input: Power consumption [W]5.0
Interface power supply24 V DC ± 10 % (required current capacity: 0.3 A)
Control methodSine-wave PWM control/current control method
Permissible regenerative power: Built-in regenerative resistor [W]0.7
Dynamic brake *3Built-in *4
Communication functionUSB: Connect a personal computer (MR Configurator2 compatible) RS-422: 1:n communication (up to 32 axes)
A/B/Z-phase pulse outputCompatible
Analog monitor2 channels
Position control mode: Maximum input pulse frequency4 Mpulses/s (when using differential receiver), 200 kpulses/s (when using open collector)
Position control mode: Positioning feedback pulseEncoder resolution: 18 bits
Position control mode: Command pulse multiplying factorElectronic gear A/B multiple, A: 1 to 16777215, B: 1 to 16777215, 1/10
Position control mode: In-position range setting0 pulse to ±65535 pulses (command pulse unit)
Position control mode: Error excessive±3 rotations
Position control mode: Torque limitSet by parameters or external analog input (0 V DC to +10 V DC/maximum torque)
Speed control mode: Speed control rangeAnalog speed command 1:2000, internal speed command 1:5000
Speed control mode: Analog speed command input0 V DC to ±10 V DC/rated speed (Speed at 10 V is changeable with [Pr. PC12].)
Speed control mode: Speed fluctuation rate±0.01% maximum (load fluctuation 0% to 100%), 0% (power fluctuation: ±10%) ±0.2% maximum (ambient temperature: 25 °C ± 10 °C) only when using analog speed command
Speed control mode: Torque limitSet by parameters or external analog input (0 V DC to +10 V DC/maximum torque)
Torque control mode: Analog torque command input0 V DC to ±8 V DC/maximum torque (input impedance: 10 kΩ to 12 kΩ)
Torque control mode: Speed limitSet by parameters or external analog input (0 V DC to ± 10 V DC/rated speed)
Positioning modePoint table method, program method, indexer method
Fully closed loop controlNot compatible
Servo functionsAdvanced vibration suppression control II, adaptive filter II, robust filter, auto tuning, one-touch tuning, vibration tough drive function, drive recorder function, machine diagnosis function, power monitoring function
Protective functionsOvercurrent shut-off, regenerative overvoltage shut-off, overload shut-off (electronic thermal), servo motor overheat protection, encoder error protection, regenerative error protection, undervoltage protection, instantaneous power failure protection, overspeed protection, error excessive protection
Satisfied standardsRefer to " Standards and certifications (by product) Products " for compliance with global standards and regulations.
Structure (IP rating)Natural cooling, open (IP20)
Close mounting: 3-phase power supply inputPossible *5
DIN rail mounting (35 mm wide)Possible
Environment: Ambient temperature: Operation0 °C to 55 °C (non-freezing)
Environment: Ambient temperature: Storage-20 °C to 65 °C (non-freezing)
Environment: Ambient humidityOperation/storage: 5 %RH to 90 %RH (non-condensing)
Environment: AmbienceIndoors (no direct sunlight); no corrosive gas, inflammable gas, oil mist or dust
Environment: Altitude1000 m or less above sea level
Environment: Vibration resistance5.9 m/s 2 at 10 Hz to 55 Hz (directions of X, Y, and Z axes)
Mass [kg]0.2

MR-J4-03A6-RJ: frequently asked questions

When can MR-J4-03A6-RJ be shipped?

MR-J4-03A6-RJ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up MR-J4-03A6-RJ in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for MR-J4-03A6-RJ and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for MR-J4-03A6-RJ, subject to availability and destination.
