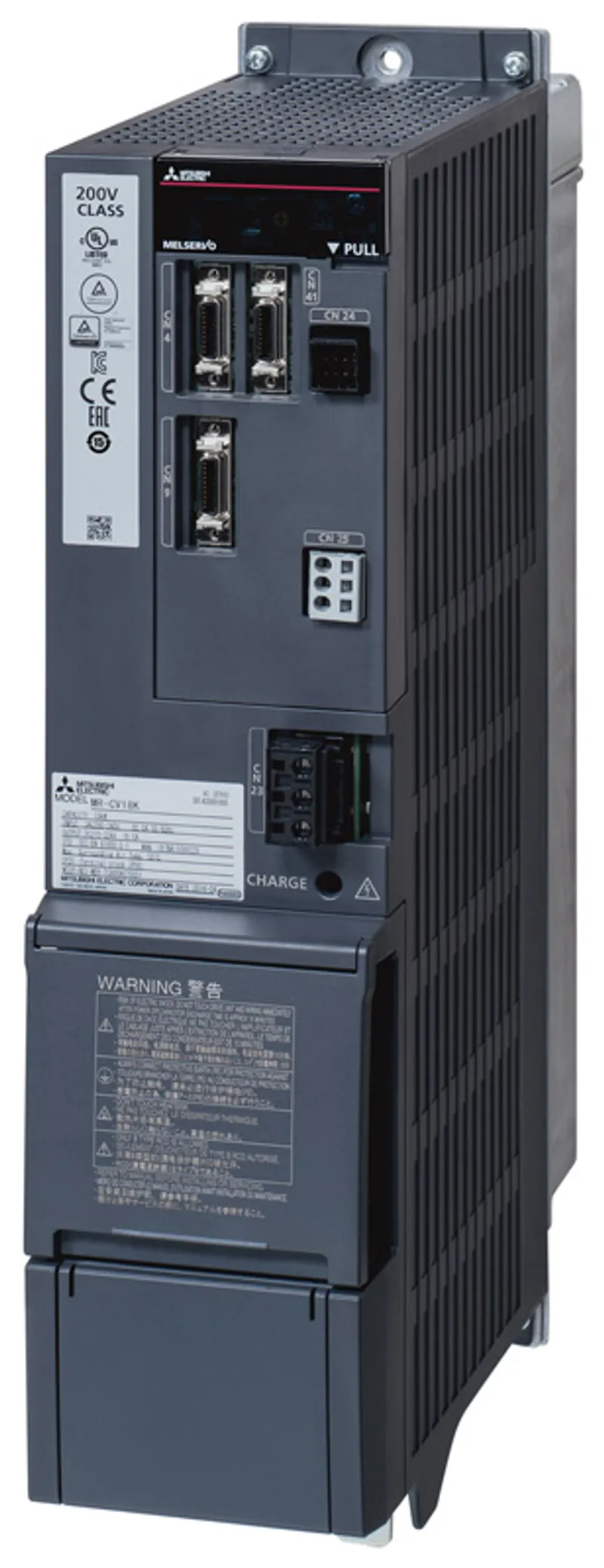

Mitsubishi Electric MR-CV75K4

Mitsubishi MELSERVO servo MELSERVO-J5 series/MELSERVO-J4 series

MPN
MR-CV75K4
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric MR-CV75K4?

The Mitsubishi Electric MR-CV75K4 is a MELSERVO-J5 series/MELSERVO-J4 series in the MELSERVO servo. 55. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSERVO servo
CategoryMELSERVO-J5 series/MELSERVO-J4 series
Type400 V AC
Outline55

Specifications

SeriesMELSERVO-J5 series/MELSERVO-J4 series
Power class400 V AC
Model name *3MR-CV75K4
Output: Rated voltage513 V DC to 648 V DC
Output: Rated current [A]150
Main circuit power supply input: Voltage・frequency *13-phase 380 V AC to 480 V AC, 50 Hz/60 Hz
Main circuit power supply input: Rated current [A]130
Main circuit power supply input: Permissible voltage fluctuation3-phase 323 V AC to 528 V AC
Main circuit power supply input: Permissible frequency fluctuation±3 % maximum
Control circuit power supply input: Voltage・frequency1-phase 380 V AC to 480 V AC, 50 Hz/60 Hz
Control circuit power supply input: Rated current [A]0.1
Control circuit power supply input: Permissible voltage fluctuation1-phase 323 V AC to 528 V AC
Control circuit power supply input: Permissible frequency fluctuation±3 % maximum
Control circuit power supply input: Power consumption [W]30
Interface power supply24 V DC ± 10 % (required current capacity: 0.35 A)
Capacity [kW]75
Protective functionsUndervoltage protection, regenerative error protection, regenerative overvoltage shut-off, MC drive circuit error protection, open-phase detection, inrush current suppression circuit error protection, main circuit device overheat error protection, cooling fan error protection, overload shut-off (electronic thermal)
Continuous rating [kW]55
Instantaneous maximum rating [kW]180
Satisfied standardsRefer to " Standards and certifications (by product) Products " for compliance with global standards and regulations.
Structure (IP rating)Force cooling, open (IP20) *2
Environment: Ambient temperature: Operation0 ˚C to 55 ˚C (non-freezing), Class 3K3 (IEC 60721-3-3)
Environment: Ambient temperature: Transportation-20 ˚C to 65 ˚C (non-freezing), Class 2K12 (IEC 60721-3-2)
Environment: Ambient temperature: Storage-20 ˚C to 65 ˚C (non-freezing), Class 1K4 (IEC 60721-3-1)
Environment: Ambient humidity5 %RH to 90 %RH (non-condensing)
Environment: AmbienceIndoors (no direct sunlight); no corrosive gas, inflammable gas, oil mist or dust
Environment: Altitude: OperationAltitude: 2000 m or less *4
Environment: Altitude: TransportationAltitude: 2000 m or less *4
Environment: Altitude: StorageAltitude: 1000 m or less
Environment: Vibration resistance: OperationUnder intermittent vibration: 10 Hz to 57 Hz, displacement amplitude 0.075 mm 57 Hz to 150 Hz, acceleration amplitude 9.8 m/s 2 (IEC 60068-2-6 Test Fc ) Under continuous vibration (directions of X, Y, and Z axes): 10 Hz to 55 Hz, acceleration amplitude 5.9 m/s 2
Environment: Vibration resistance: Transportation2 Hz to 9 Hz, displacement amplitude (single amplitude) 7.5 mm 9 Hz to 200 Hz, acceleration amplitude 20 m/s 2 Class 2M3 (IEC 60721-3-2)
Environment: Vibration resistance: Storage2 Hz to 9 Hz, displacement amplitude (single amplitude) 1.5 mm 9 Hz to 200 Hz, acceleration amplitude 5 m/s 2 Class 1M2 (IEC 60721-3-1)
Mass [kg]25.0

MR-CV75K4: frequently asked questions

When can MR-CV75K4 be shipped?

MR-CV75K4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up MR-CV75K4 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for MR-CV75K4 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for MR-CV75K4, subject to availability and destination.
