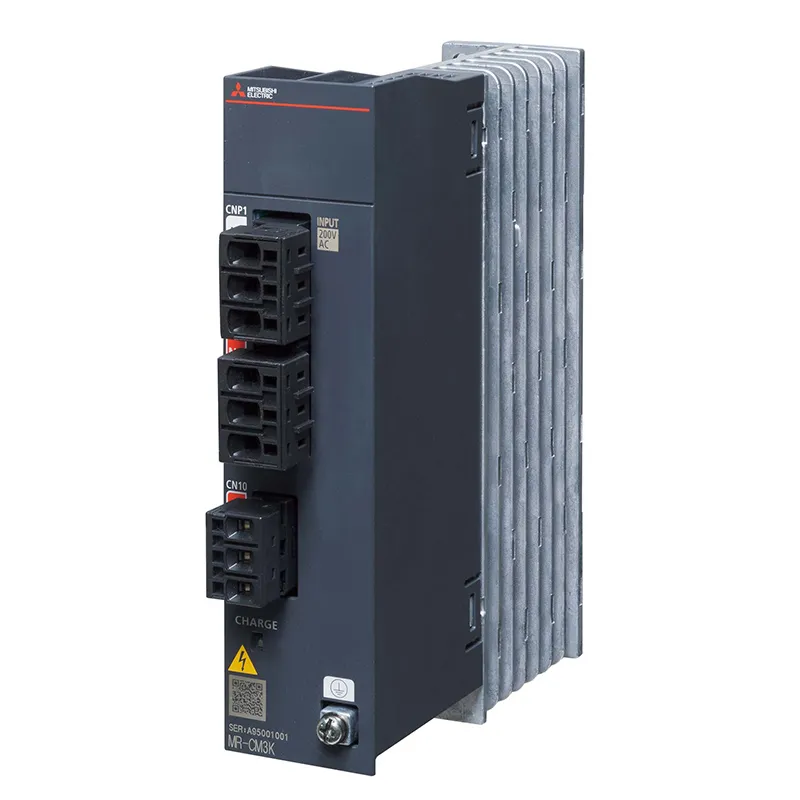

Mitsubishi Electric MR-CM3K

Mitsubishi MELSERVO servo MELSERVO-J5 series

MPN
MR-CM3K
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric MR-CM3K?

The Mitsubishi Electric MR-CM3K is a MELSERVO-J5 series in the MELSERVO servo. 3. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSERVO servo
CategoryMELSERVO-J5 series
Type200 V AC
Outline3

Specifications

SeriesMELSERVO-J5 series
Power class200 V AC
Model nameMR-CM3K
Output: Rated voltage270 V DC to 324 V DC
Output: Rated current [A]20
Main circuit power supply input: Voltage・frequency3-phase 200 V AC to 240 V AC, 50 Hz/60 Hz
Main circuit power supply input: Rated current [A]16
Main circuit power supply input: Permissible voltage fluctuation3-phase 170 V AC to 264 V AC
Overheat detection function: Thermal sensorThe contact between TH1 and TH2 opens when the thermal sensor detects an overheat condition.
Overheat detection function: Contact specification: Maximum voltage110 V AC/DC
Overheat detection function: Contact specification: Maximum current0.3 A at 20 V DC
Overheat detection function: Contact specification: Minimum current0.1 mA at 1 V DC
Overheat detection function: Contact specification: Maximum capacity6 VA
Compatible servo amplifier *51MELSERVO-J5 series
Maximum number of connectable servo amplifiers6 units
Total capacity of servo amplifiers to be driven [kW]3
Continuous rating [kW]3
Instantaneous maximum rating [kW]9
Satisfied standardsRefer to " Standards and certifications (by product) Products " for compliance with global standards and regulations.
Structure (IP rating)IP20
Close mountingPossible
Environment: Ambient temperature: Operation0 °C to 60 °C (non-freezing), Class 3K3 (IEC 60721-3-3)
Environment: Ambient temperature: Transportation-25 °C to 70 °C (non-freezing), Class 2K12 (IEC 60721-3-2)
Environment: Ambient temperature: Storage-25 °C to 70 °C (non-freezing), Class 1K4 (IEC 60721-3-1)
Environment: Ambient humidity5 %RH to 95 %RH (non-condensing)
Environment: AmbienceIndoors (no direct sunlight); no corrosive gas, inflammable gas, oil mist or dust
Environment: Altitude: OperationAltitude: 2000 m or less *1
Environment: Altitude: TransportationOverland/sea transportation, or transporting on an airplane whose cargo compartment is pressurized at 700 hPa or higher
Environment: Altitude: StorageAtmospheric pressure: 700 hPa to 1060 hPa (Equivalent to altitudes from -400 m to 3000 m)
Environment: Vibration resistance: OperationUnder intermittent vibration: 10 Hz to 57 Hz, displacement amplitude 0.075 mm 57 Hz to 150 Hz, acceleration amplitude 9.8 m/s 2 Class 3M1 (IEC 60721-3-3) Under continuous vibration (directions of X, Y, and Z axes): 10 Hz to 55 Hz, acceleration amplitude 5.9 m/s 2
Environment: Vibration resistance: Transportation2 Hz to 9 Hz, displacement amplitude (single amplitude) 7.5 mm 9 Hz to 200 Hz, acceleration amplitude 20 m/s 2 Class 2M3 (IEC 60721-3-2)
Environment: Vibration resistance: Storage2 Hz to 9 Hz, displacement amplitude (single amplitude) 1.5 mm 9 Hz to 200 Hz, acceleration amplitude 5 m/s 2 Class 1M2 (IEC 60721-3-1)
Mass [kg]0.7
Wire size: L1/L2/L3/PE2 mm 2 to 3.5 mm 2 (AWG 14 to 12)
Wire size: P4/N-2 mm 2 to 3.5 mm 2 (AWG 14 to 12)
Total wiring length from P4/N- of simple converter to P4/N- of servo amplifier5 m or shorter
