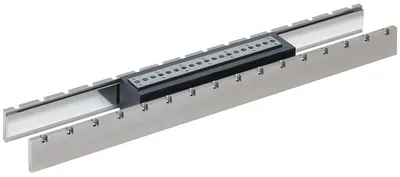

LM-U2PAB-05M-0SS0 Mitsubishi MELSERVO servo MELSERVO-J5 series/MELSERVO-J4 series/MELSERVO-J3 series

MPN: LM-U2PAB-05M-0SS0 · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSERVO servo – Linear servo motors
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can LM-U2PAB-05M-0SS0 be shipped?

LM-U2PAB-05M-0SS0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up LM-U2PAB-05M-0SS0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for LM-U2PAB-05M-0SS0 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LM-U2PAB-05M-0SS0, subject to availability and destination.

The Mitsubishi Electric LM-U2PAB-05M-0SS0 is a MELSERVO-J5 series/MELSERVO-J4 series/MELSERVO-J3 series in the MELSERVO servo. 150. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSERVO servo
Category	MELSERVO-J5 series/MELSERVO-J4 series/MELSERVO-J3 series
Type	200 V AC
Subtype	LM-U2SA0-240-0SS0 LM-U2SA0-300-0SS0 LM-U2SA0-420-0SS0
Outline	150

Specifications

Series	MELSERVO-J5 series/MELSERVO-J4 series/MELSERVO-J3 series
Product name	LM-U2 Series
Power class	200 V AC
Model name: Primary side (coil)	LM-U2PAB-05M-0SS0
Model name: Secondary side (magnet)	LM-U2SA0-240-0SS0 LM-U2SA0-300-0SS0 LM-U2SA0-420-0SS0
Compatible servo amplifier	For the compatible servo amplifiers, refer to the following and the relevant catalog or manual. For the MELSERVO-J5 series, " click here ". For the MELSERVO-J4 series, " click here ".
Power supply capacity [kVA] 1 2	0.5
Cooling method	Natural cooling
Thrust: Continuous (natural cooling) [N] *3	50
Thrust: Maximum [N]	150
Maximum speed [m/s] *4	2.0
Magnetic attraction force [N]	0
Rated current: Natural cooling [A]	0.9
Maximum current [A]	2.7
Recommended load to motor mass ratio *5	30 times or less
Type	Permanent magnet synchronous motor
Thermistor	Built-in
Insulation class	155 (F)
Structure	Open (IP rating: IP00)
Environment: Ambient temperature	Operation: 0 °C to 60 °C (non-freezing) *6 , Storage: -15 °C to 70 °C (non-freezing)
Environment: Ambient humidity	Operation: 10 %RH to 80 %RH (non-condensing), Storage: 10 %RH to 90 %RH (non-condensing)
Environment: Ambience *7	Indoors (no direct sunlight); no corrosive gas, inflammable gas, oil mist or dust
Environment: Altitude	2000 m or less above sea level *8
Environment: Vibration resistance	49 m/s 2
Satisfied standards	Refer to " Standards and certifications (by product) Products " for compliance with global standards and regulations.
Mass: Primary side (coil) [kg]	0.3
Mass: Secondary side (magnet) [kg]	240 mm/pc: 2.0 300 mm/pc: 2.5 420 mm/pc: 3.5

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

MR-J5-G/MR-J5W-G User's Manual (Introduction) (SH-030294ENG-P)	PDF · 2.29MB
MR-J5-A User's Manual (Introduction) (SH-030296ENG-P)	PDF · 1.84MB
MR-J5 User's Manual (Hardware) (SH-030298ENG-Q)	PDF · 25.30MB
MR-J5 User's Manual (Function) (SH-030300ENG-P)	PDF · 7.48MB
MR-J5-G/MR-J5W-G User's Manual (Communication Function) (SH-030302ENG-P)	PDF · 1.00MB
MR-J5-G/MR-J5W-G User's Manual (Object Dictionary) (SH-030304ENG-P)	PDF · 1.46MB
MR-J5 User's Manual (Adjustment) (SH-030306ENG-J)	PDF · 1.03MB
MR-J5-G/MR-J5W-G User's Manual (Parameters) (SH-030308ENG-P)	PDF · 1.94MB
MR-J5-A User's Manual (Parameters) (SH-030310ENG-N)	PDF · 1.37MB
MR-J5 User's Manual (Troubleshooting) (SH-030312ENG-P)	PDF · 1.86MB
