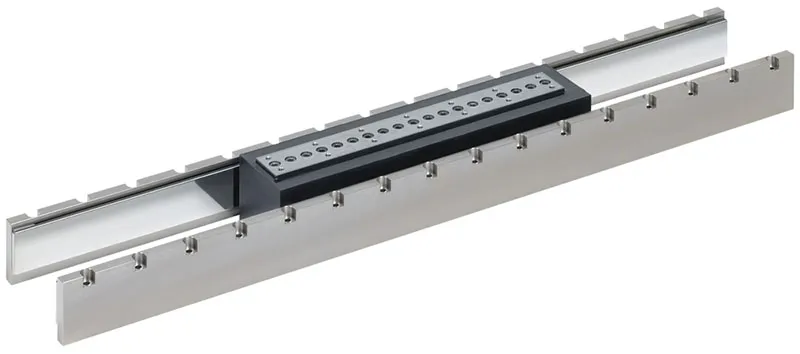

The Mitsubishi Electric LM-K2P2E-12M-1SS1 is a MELSERVO-J5 series/MELSERVO-J4 series/MELSERVO-J3 series in the MELSERVO servo. 3000. Specifications and manuals below are Mitsubishi Electric's own data.
| Series | MELSERVO servo |
| Category | MELSERVO-J5 series/MELSERVO-J4 series/MELSERVO-J3 series |
| Type | 200 V AC |
| Subtype | LM-K2S20-288-1SS1 LM-K2S20-384-1SS1 LM-K2S20-480-1SS1 LM-K2S20-768-1SS1 |
| Outline | 3000 |
| Series | MELSERVO-J5 series/MELSERVO-J4 series/MELSERVO-J3 series |
| Product name | LM-K2 Series |
| Power class | 200 V AC |
| Model name: Primary side (coil) | LM-K2P2E-12M-1SS1 |
| Model name: Secondary side (magnet) *3 | LM-K2S20-288-1SS1 LM-K2S20-384-1SS1 LM-K2S20-480-1SS1 LM-K2S20-768-1SS1 |
| Compatible servo amplifier | For the compatible servo amplifiers, refer to the following and the relevant catalog or manual. For the MELSERVO-J5 series, " click here ". For the MELSERVO-J4 series, " click here ". |
| Power supply capacity [kVA] *1 *2 | 7.5 |
| Cooling method | Natural cooling |
| Thrust: Continuous (natural cooling) [N] *4 | 1200 |
| Thrust: Maximum [N] | 3000 |
| Maximum speed [m/s] *5 | 2.0 |
| Magnetic attraction force [N] *6 *7 | 0 |
| Magnetic attraction force (one side) [N] *8 | 5300 |
| Rated current: Natural cooling [A] | 19 |
| Maximum current [A] | 65 |
| Recommended load to motor mass ratio *10 | 30 times or less |
| Type | Permanent magnet synchronous motor |
| Thermistor | Built-in |
| Insulation class | 155 (F) |
| Structure | Open (IP rating: IP00) |
| Environment: Ambient temperature | Operation: 0 °C to 60 °C (non-freezing) *11 , Storage: -15 °C to 70 °C (non-freezing) |
| Environment: Ambient humidity | Operation: 10 %RH to 80 %RH (non-condensing), Storage: 10 %RH to 90 %RH (non-condensing) |
| Environment: Ambience *12 | Indoors (no direct sunlight); no corrosive gas, inflammable gas, oil mist or dust |
| Environment: Altitude | 2000 m or less above sea level *13 |
| Environment: Vibration resistance | 49 m/s 2 |
| Satisfied standards | Refer to " Standards and certifications (by product) Products " for compliance with global standards and regulations. |
| Mass: Primary side (coil) [kg] | 16 |
| Mass: Secondary side (magnet) [kg] | 288 mm/pc: 1.9 384 mm/pc: 2.5 480 mm/pc: 3.2 768 mm/pc: 5.0 |
No matching specifications
Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.
LM-K2P2E-12M-1SS1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Yes — mention it when you request a quote for LM-K2P2E-12M-1SS1 and we'll include express shipping options in our reply.
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for LM-K2P2E-12M-1SS1, subject to availability and destination.
