Mitsubishi Electric KB-D

Mitsubishi Circuit breaker

MPN
KB-D
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric KB-D?

The Mitsubishi Electric KB-D is a circuit Breaker in the Circuit breaker. IEC CE(LVD) CE(RoHS) UKCA(LV) UKCA(RoHS) CCC DNV CCS. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesCircuit breaker
OutlineIEC CE(LVD) CE(RoHS) UKCA(LV) UKCA(RoHS) CCC DNV CCS

Specifications

DescriptionIsolator
SeriesDIN series
TypeKB-D
Number of poles1
Utilization categoryAC-22A
Rated current In(A) at30℃32,63,80
Rated voltage (VAC)230
Rated short time withstand current (A)20xIn, 1s
Rated short-circuit making capacity (A)20xIn
Rated impulse withstand voltage Uimp(kV)6
Pollution degree2
Outline dimensions (mm): a18
Outline dimensions (mm): b87
Outline dimensions (mm): c44
Outline dimensions (mm): ca70
Mass (kg)0.09
Number of operating cycles (times): Without current20000
Number of operating cycles (times): With current3000
MountingIEC35mm rail
Applicable wire size1-25mm2
Terminal connectionSolderless
Standard: Base onIEC 60947-3, EN 60947-3, GB/T 14048.3
Standard: CE markingSelf-declaration
Standard: UKCA markingSelf-declaration
Standard: CCCCertified
Standard: Marine use approvalCCS, DNV
Standard: Third party approval: KEMA-

KB-D: frequently asked questions

When can KB-D be shipped?

KB-D is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up KB-D in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for KB-D and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for KB-D, subject to availability and destination.

More Mitsubishi Electric (Factory Automation) parts

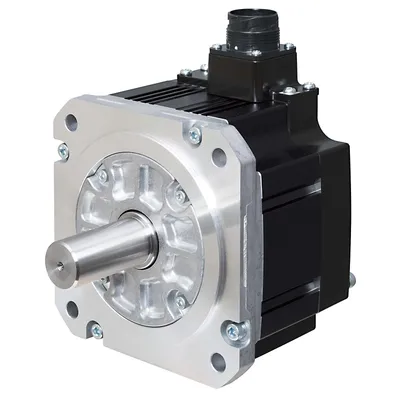

Mitsubishi Electric HK-ST903WWS – Mitsubishi MELSERVO servo MELSERVO-J5 series
