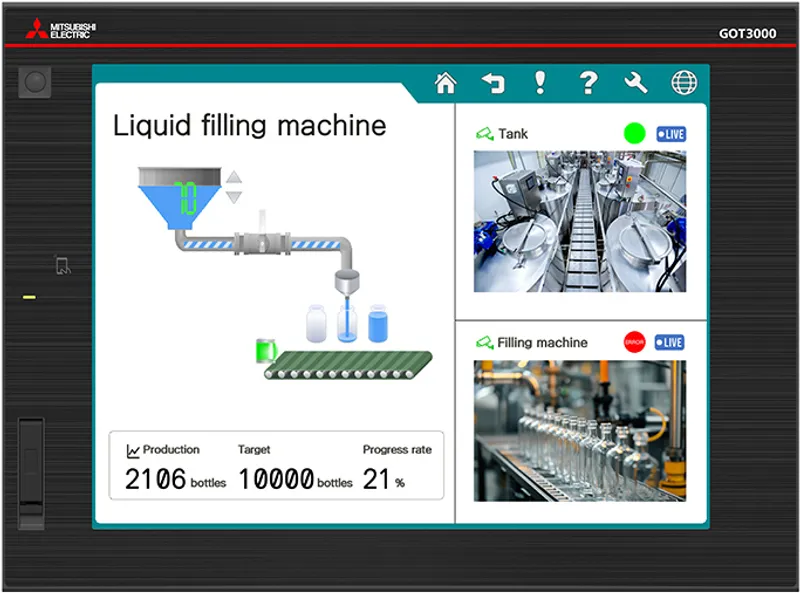

GT3715-XRBD Mitsubishi GOT HMI 15"

MPN: GT3715-XRBD · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi GOT HMI – GOTs
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can GT3715-XRBD be shipped?

GT3715-XRBD is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up GT3715-XRBD in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for GT3715-XRBD and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for GT3715-XRBD, subject to availability and destination.

The Mitsubishi Electric GT3715-XRBD is a 15" in the GOT HMI. Standard. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	GOT HMI
Category	15"
Type	XGA: 1024 x 768 dots
Outline	Standard

Specifications

Model	GT3715-XRBD
Product name	GT37 model
Series name	GOT3000
Model name	GT37

Specifications

Display section 1 2: Display device	TFT color LCD
Display section 1 2: Screen size	15"
Display section 1 2: Resolution	XGA: 1024 x 768 dots
Display section 1 2: Display size	304.1 (W) x 228.1 (H) mm (11.97 (W) x 8.98 (H) inch)
Display section 1 2: Display color	16 million colors
Display section 1 2: Brightness adjustment	32 levels (switchable between normal mode and low brightness mode)
Display section 1 2: Backlight	LED (Not replaceable)
Display section 1 2: Backlight life *3	50000 h or more (time it takes for the display intensity to reach 50% at an ambient operating temperature of 25°C)
Touch panel *4: Type	Analog resistive film 5 6
Touch panel *4: Simultaneous press	Not available (Only 1 point can be touched.) *7
Touch panel *4: Life	1 million touches or more (operating force: 0.98 N or less)
Human sensor: Detection method	Pyroelectric type
Human sensor: Detection length	1 m
Human sensor: Detection temperature	Temperature difference between human body and ambient air: 4°C or higher
Memory capacity	ROM: 512 MB RAM: 2 GB
User memory	Memory for storage (ROM) : 256 MB *8 Memory for operation (RAM) : 768 MB
Built-in clock precision	±90 seconds/month (Ambient temperature: 25°C)
Battery: Type	GT11-50BAT lithium battery (Sold separately)
Battery: Backup target	Clock data
Battery: Life	Approx. 5 years (Ambient temperature: 25°C)
Built-in interface: RS-232/422/485: Number of channel	1 channel
Built-in interface: RS-232/422/485: Transmission speed	115200, 57600, 38400, 19200, 9600, 4800 bps
Built-in interface: RS-232/422/485: Connector shape	D-sub 9-pin (female), M2.6 metric screw thread
Built-in interface: RS-232/422/485: Switching between RS-232 and RS-422/485	Set with GT Works3 or the utility
Built-in interface: Ethernet: Number of channel	2 channels
Built-in interface: Ethernet: Data transfer method	1000BASE-T, 100BASE-TX, 10BASE-T
Built-in interface: Ethernet: Connector shape	RJ45 (modular jack) AUTO MDI/MDI-X
Built-in interface: USB (device/host): Number of channel	1 channel (front face)
Built-in interface: USB (device/host): USB version	USB 3.2 Gen1 (USB 3.0) (SuperSpeed 5 Gbps)
Built-in interface: USB (device/host): Connector shape	USB Type-C
Built-in interface: USB (host): Number of channel	1 channel (rear face)
Built-in interface: USB (host): USB version	USB 3.2 Gen1 (USB 3.0) (SuperSpeed 5 Gbps)
Built-in interface: USB (host): Connector shape	USB Type-A
Built-in interface: Digital video output: Number of channel	1 channel
Built-in interface: Digital video output: Connector shape	HDMI Type A connector
Built-in interface: SD memory card *9	1 channel, SDHC compliant (maximum 32 GB)
Built-in interface: Contactless tag *10: Number of channel	1 channel
Built-in interface: Contactless tag *10: Compliance standards	ISO/IEC 15693 (Type 5 tag)
Built-in interface: Extension interface	For installing a communication unit or an option unit
Buzzer sound	Single tone (tone and tone length adjustable)
LED specifications: POWER LED	1 color (lime green)
Installation method	Standard
Panel color	Black
Protective structure *11	Front: IP66F 12 , IP67F 12 *13 , NEMA Type 4X Enclosure interior: IP2X
External dimensions	397 (W) x 294 (H) x 61 (D) mm (15.63 (W) x 11.57 (H) x 2.40 (D) inch)
Panel cut dimensions	383.5 (W) x 282.5 (H) mm (15.10 (W) x 11.12 (H) inch)
Weight (excluding a fitting)	2.8 kg (6.2 lb)

Specifications

Ambient operating temperature	0°C to 55°C
Ambient storage temperature	-20°C to 60°C
Ambient operating humidity	10% RH to 90% RH, non-condensing
Ambient storage humidity	10% RH to 90% RH, non-condensing
Vibration resistance: Approval standards	Compliant with JIS B 3502 and IEC 61131-2
Vibration resistance	[ Frequency: 5 to 8.4 Hz ] Amplitude: 3.5 mm Sweep count: X, Y, or Z 10 times in each direction [ Frequency: 8.4 to 150 Hz ] Acceleration: 10 m/s 2 Sweep count: X, Y, or Z 10 times in each direction
Shock resistance	Compliant with JIS B 3502 and IEC 61131-2 (150 m/s 2 (15 G), 3 times in X, Y, or Z directions)
Operating atmosphere	No greasy fumes, corrosive gas, flammable gas, excessive conductive dust, and direct sunlight (as well as at storage)
Operating altitude	2000 m or less
Installation location	Inside control panel (used indoors)
Overvoltage category	II or less
Pollution degree	2 or less
Cooling method	Self-cooling
Grounding	Grounding with a ground resistance of 100 Ω or less by using a ground cable that has a cross-sectional area of 2 mm 2 or more. If impossible, connect the ground cable to the control panel.
Remarks: Ambient operating temperature	Indicates the temperature inside the enclosure of the control panel on which the GOT is installed.
Remarks: Operating altitude	The operating ambient temperature of the GOT is specified as 0°C to 55°C at an altitude of 0 m. Use the following formula to calculate the ambient operating temperature at different altitudes. Ambient operating temperature = 55 [°C] - 0.005 x altitude [m]
Remarks: Installation location	When any of the following units is installed, the maximum ambient operating temperature must be 5°C lower than the one described in the general specifications. ・MELSECNET/H communication unit (GT15-J71LP23-25, GT15-J71BR13) ・CC-Link communication unit (GT15-J61BT13)
Remarks: Overvoltage category	Do not use or store the GOT under a pressure higher than the atmospheric pressure at an altitude 0 m. Doing so may cause a malfunction. Air purging by applying pressure to the control panel may create clearance between the surface sheet and the touch panel. This may cause the touch panel to be not sensitive enough or the sheet to come off.
Remarks: Pollution degree	Install the GOT in an IP20-compliant enclosure that is appropriately designed to meet the specific environmental conditions. The UL test has not been performed for the IP protection rating.

Specifications

Power supply voltage	24 V DC (+25%, -20%)
Power consumption: Under the maximum load	39 W or less
Power consumption: Main unit (reference value)	17 W
Inrush current	5 A or less (20 ms, ambient temperature: 25°C, under the maximum load)
Permissible instantaneous power failure time	10 ms or less
Noise immunity	Noise voltage: 2 kV (compliant with IEC 61000-4-4)
Withstand voltage	510 V AC for 1 minute across power supply terminals and earth
Insulation resistance	500 V DC across power supply terminals and earth, 10 MΩ or more by an insulation resistance tester
Applicable wire: Size	0.75 mm 2 to 2 mm 2 (AWG 18 to AWG 14)
Applicable wire: Type	Stranded wire
Applicable wire: Material	Copper wire
Applicable wire: Temperature rating	75 °C or higher
Applicable solderless terminal	Solderless terminal for M3 screw: RAA1.25-3, V2-S3.3, V2-N3A, FV2-N3A
Applicable tightening torque (for terminal block terminal screws)	0.5 N・m to 0.8 N・m
Remarks: Power supply voltage	Power this equipment from a power supply that meets SELV (Safety Extra-Low Voltage) and meets LIM (Limited Energy Circuit) or UL 1310 Class 2.

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

GOT3000 Series User's Manual (Hardware) (SH-082591ENG-C)	PDF · 5.03MB
GOT3000 Series User's Manual (Connection) (SH-082593ENG-D)	PDF · 108.60MB
GT Designer3 (GOT3000) Screen Design Manual (SH-082590ENG-D)	PDF · 69.82MB
GOT3000 Series User's Manual (Utility & Maintenance Functions) (SH-082592ENG-C)	PDF · 22.18MB
GT Designer3 (GOT3000)使用手册 (SH-082600CHN-D)	PDF · 59.01MB
GOT3000系列本体使用手册(硬件篇) (SH-082601CHN-C)	PDF · 5.02MB
GOT3000系列本体使用手册(实用菜单功能·维护功能篇) (SH-082602CHN-C)	PDF · 20.03MB
GOT3000系列本体使用手册(连接篇) (SH-082603CHN-D)	PDF · 83.28MB
