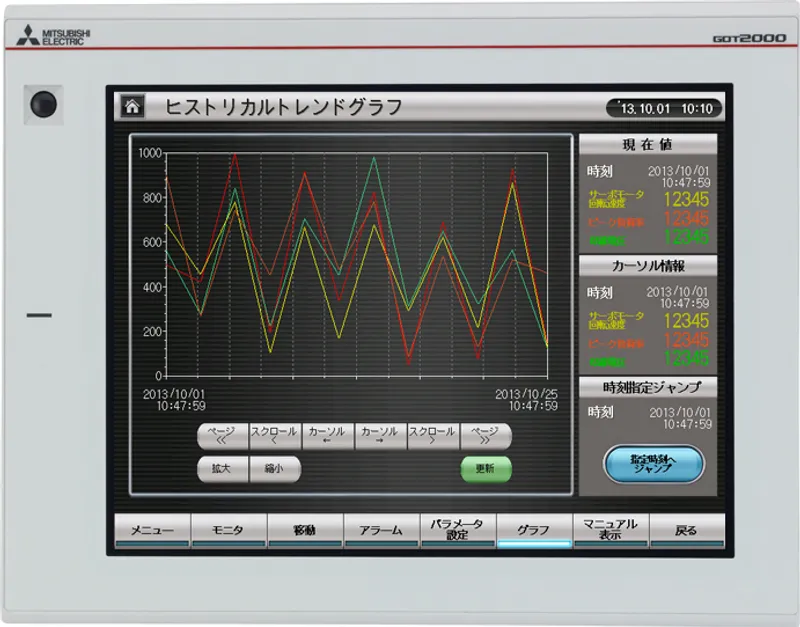

Mitsubishi Electric GT2712-STWA

Mitsubishi GOT HMI 12.1"

MPN
GT2712-STWA
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric GT2712-STWA?

The Mitsubishi Electric GT2712-STWA is a 12.1" in the GOT HMI. Standard. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesGOT HMI
Category12.1"
TypeSVGA: 800 x 600 dots
OutlineStandard

Specifications

ModelGT2712-STWA
Product nameGT27 model
Series nameGOT2000
Model nameGT27

Specifications

Display section *1 *2: Display deviceTFT color LCD
Display section *1 *2: Screen size12.1"
Display section *1 *2: ResolutionSVGA: 800 x 600 dots
Display section *1 *2: Display size246 (W) x 184.5 (H) mm (9.69 (W) x 7.26 (H) inch)
Display section *1 *2: Number of displayed characters16-dot standard font: 50 characters x 37 lines (two-byte characters) 12-dot standard font: 66 characters x 50 lines (two-byte characters)
Display section *1 *2: Display color65536 colors
Display section *1 *2: Brightness adjustment32 levels
Display section *1 *2: Registrable number of screen4096
Display section *1 *2: BacklightLED (not replaceable)
Display section *1 *2: Backlight life *4Approx. 60000 h (operating ambient temperature: 25°C, display intensity: 50%)
Display section *1 *2: Backlight colorWhite
Touch panel *3 *10: TypeAnalog resistive film
Touch panel *3 *10: Key sizeMinimum 2 x 2 dots *8 (per key)
Touch panel *3 *10: Simultaneous pressUp to two points
Touch panel *3 *10: Life1 million touches or more (operating force: 0.98 N or less)
Human sensor: Detection length1 m
Human sensor: Detection temperatureTemperature difference between human body and ambient air: 4°C or higher
User memoryMemory for storage (ROM) *11 : 57 MB Memory for operation (RAM) : 256 MB *12 Life (number of write times) : 100000 times
Built-in clock precision±90 seconds/month (ambient temperature: 25°C)
Battery: TypeGT11-50BAT lithium battery
Battery: Backup targetSRAM data, clock data, system status log data
Battery: LifeApprox. 5 years (ambient temperature: 25°C)
Built-in interface: RS-232: Number of channel1 channel
Built-in interface: RS-232: Transmission speed115200, 57600, 38400, 19200, 9600, 4800 bps
Built-in interface: RS-232: Connector shapeD-sub 9-pin (male)
Built-in interface: RS-422/485: Number of channel1 channel
Built-in interface: RS-422/485: Transmission speed115200, 57600, 38400, 19200, 9600, 4800 bps
Built-in interface: RS-422/485: Connector shapeD-sub 9-pin (female)
Built-in interface: RS-422/232: Number of channel-
Built-in interface: RS-422/232: Transmission speed-
Built-in interface: RS-422/232: Connector shape-
Built-in interface: RS-422/232: Application-
Built-in interface: RS-422: Number of channel-
Built-in interface: RS-422: Transmission speed-
Built-in interface: RS-422: Connector shape-
Built-in interface: Ethernet: Number of channel1 channel
Built-in interface: Ethernet: Data transfer method100BASE-TX, 10BASE-T
Built-in interface: Ethernet: Connector shapeRJ45 (modular jack) AUTO MDI/MDI-X
Built-in interface: Bus interface: Type-
Built-in interface: Bus interface: Number of channel-
Built-in interface: RGB interface-
Built-in interface: Printer interface-
Built-in interface: USB (host): Number of channel1 channel (rear face)
Built-in interface: USB (host): Maximum transfer rateHigh-Speed 480 Mbps
Built-in interface: USB (host): Connector shapeUSB-A
Built-in interface: USB (device): Number of channel1 channel (rear face)
Built-in interface: USB (device): Maximum transfer rateHigh-Speed 480 Mbps
Built-in interface: USB (device): Connector shapeUSB Mini-B
Built-in interface: SD memory card *111 channel, SDHC compliant (maximum 32 GB)
Built-in interface: CF card interface-
Built-in interface: PC card interface-
Built-in interface: Option function board interface-
Built-in interface: Memory board interface-
Built-in interface: Extension interfaceFor installing a communication unit or an option unit
Built-in interface: Auxiliary extension interfaceFor installing an option unit
Built-in interface: Extension unit interface-
Built-in interface: Side interfaceFor installing a communication unit
Built-in interface: Sound output interface-
Buzzer soundSingle tone (tone and tone length adjustable)
LED specifications: POWER LED2 colors (blue and orange)
Installation methodStandard
Panel colorWhite
Protective structure *5Front: IP67F *9 Inside control panel: IP2X
External dimensions316 (W) x 246 (H) x 52 (D) mm (12.44 (W) x 9.69 (H) x 2.05 (D) inch)
Panel cut dimensions302 (W) x 228 (H) mm (11.89 (W) x 8.98 (H) inch)
Weight (excluding a fitting)2.4 kg (5.3 lb)

Specifications

Ambient operating temperature0°C to 55°C
Ambient storage temperature-20°C to 60°C
Ambient operating humidity10% RH to 90% RH, non-condensing
Ambient storage humidity10% RH to 90% RH, non-condensing
Vibration resistance: Approval standardsCompliant with JIS B 3502 and IEC 61131-2 *13
Vibration resistance: Under intermittent vibration[ Frequency: 5 to 8.4 Hz ] Half amplitude: 3.5 mm Sweep count: 10 times in each X, Y, or Z direction [ Frequency: 8.4 to 150 Hz ] Acceleration: 9.8 m/s 2 Sweep count: 10 times in each X, Y, or Z direction
Vibration resistance: Under continuous vibration[ Frequency: 5 to 8.4 Hz ] Half amplitude: 1.75 mm [ Frequency: 8.4 to 150 Hz ] Acceleration: 4.9 m/s 2
Shock resistanceCompliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 (15 G), 3 times in each X, Y, or Z direction) *13
Operating atmosphereNo greasy fumes, corrosive gas, flammable gas, excessive conductive dust, and direct sunlight (as well as at storage)
Operating altitude2000 m or less
Installation locationInside control panel
Overvoltage categoryII or less
Pollution degree2 or less
Cooling methodSelf-cooling
GroundingGrounding with a ground resistance of 100 Ω or less by using a ground cable that has a cross-sectional area of 2 mm 2 or more. If impossible, connect the ground cable to the control panel.
Remarks: Ambient operating temperatureIncludes the temperature inside the enclosure of the control panel to which the GOT is installed.
Remarks: Operating atmosphereWhen any of the following units or option is mounted, the maximum operating ambient temperature must be 5°C lower than the one described in the general specifications: multimedia unit (GT27-MMR-Z), MELSECNET/H communication unit (GT15-J71LP23-25, GT15-J71BR13), CC-Link communication unit (GT15-J61BT13), protective cover for oil.
Remarks: Operating altitudeSome models have ANSI/ISA 12.12.01 approval for use in Class I, Division 2 (ANSI/ISA 12.12.01, C22.2 No.213-M1987) hazardous locations. For applicable GOT models, please refer to the 『 Standards and approved products 』.
Remarks: Overvoltage categoryDo not use or store the GOT under a pressure higher than the atmospheric pressure at altitude 0 m. Doing so may cause a malfunction. Air purging by applying pressure to the control panel may create clearance between the surface sheet and the touch panel. This may cause the touch panel to be not sensitive enough or the sheet to come off.
Remarks: Pollution degreeThis indicates the section of the power supply to which the equipment is assumed to be connected between the public electrical power distribution network and the machinery within the premises. Category II applies to equipment that is supplied with power from fixed facilities. The withstand surge voltage for the equipment with the rated voltage up to 300 V is 2500 V.

Specifications

Power supply voltage100 V AC to 240 V AC (+10%, -15%)
Power supply frequency50 Hz/60 Hz (±5%)
Maximum apparent power100 VA
Power consumption: Under the maximum load44 W or less
Power consumption: Main unit19 W
Power consumption: Main unit (backlight OFF)10 W
Inrush current60 A or less (2 ms, ambient temperature: 25°C, under the maximum load)
Permissible instantaneous power failure time20 ms or less (100 V AC or more)
Noise immunityNoise voltage: 1500 Vp-p, noise width: 1 μs, measured by a noise simulator with noise frequency ranging from 25 Hz to 60 Hz
Withstand voltage1500 V AC for 1 minute across power terminals and earth
Insulation resistance500 V DC across power terminals and earth, 10 MΩ or more by an insulation resistance tester
Applicable wire0.75 mm 2 to 2 mm 2
Applicable solderless terminalSolderless terminal for M3 screw RAV1.25-3, V2-S3.3, V2-N3A, FV2-N3A
Applicable tightening torque (for terminal block terminal screws)0.5 N・m to 0.8 N・m

GT2712-STWA: frequently asked questions

When can GT2712-STWA be shipped?

GT2712-STWA is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up GT2712-STWA in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for GT2712-STWA and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for GT2712-STWA, subject to availability and destination.
