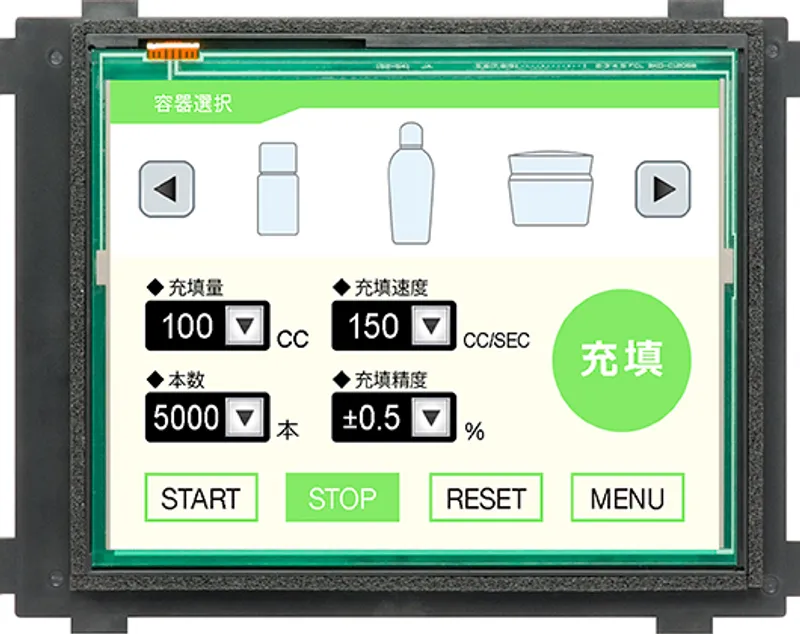

Mitsubishi Electric GT2508F-VTNA

Mitsubishi GOT HMI 8.4"

MPN
GT2508F-VTNA
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric GT2508F-VTNA?

The Mitsubishi Electric GT2508F-VTNA is a 8.4" in the GOT HMI. Open frame (Stud). Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesGOT HMI
Category8.4"
TypeVGA: 640 x 480 dots
OutlineOpen frame (Stud)

Specifications

ModelGT2508F-VTNA
Product nameGT25 model
Series nameGOT2000
Model nameGT25

Specifications

Display section *1 *2: Display deviceTFT color LCD
Display section *1 *2: Screen size8.4"
Display section *1 *2: ResolutionVGA: 640 x 480 dots
Display section *1 *2: Display size170.9 (W) x 128.2 (H) mm (6.73 (W) x 5.05 (H) inch)
Display section *1 *2: Number of displayed characters16-dot standard font: 40 characters x 30 lines (two-byte characters) 12-dot standard font: 53 characters x 40 lines (two-byte characters)
Display section *1 *2: Display color65536 colors
Display section *1 *2: Brightness adjustment32 levels
Display section *1 *2: Registrable number of screen4096
Display section *1 *2: BacklightLED (not replaceable)
Display section *1 *2: Backlight life *4Approx. 60000 h (operating ambient temperature: 25°C, display intensity: 50%)
Display section *1 *2: Backlight colorWhite
Touch panel *3 *11: TypeAnalog resistive film
Touch panel *3 *11: Key sizeMinimum 2 x 2 dots *9 (per key)
Touch panel *3 *11: Simultaneous pressNot available *5 (Only 1 point can be touched.)
Touch panel *3 *11: Life1 million touches or more (operating force: 0.98 N or less)
Human sensor: Detection length-
Human sensor: Detection temperature-
User memoryMemory for storage (ROM) *12 : 32 MB Memory for operation (RAM) : 80 MB Life (number of write times) : 100000 times
Built-in clock precision±90 seconds/month (ambient temperature: 25°C)
Battery: TypeGT11-50BAT lithium battery
Battery: Backup targetSRAM data, clock data, system status log data
Battery: LifeApprox. 5 years (ambient temperature: 25°C)
Built-in interface: RS-232: Number of channel1 channel
Built-in interface: RS-232: Transmission speed115200, 57600, 38400, 19200, 9600, 4800 bps
Built-in interface: RS-232: Connector shapeD-sub 9-pin (male)
Built-in interface: RS-422/485: Number of channel1 channel
Built-in interface: RS-422/485: Transmission speed115200, 57600, 38400, 19200, 9600, 4800 bps
Built-in interface: RS-422/485: Connector shapeD-sub 9-pin (female)
Built-in interface: RS-422/232: Number of channel-
Built-in interface: RS-422/232: Transmission speed-
Built-in interface: RS-422/232: Connector shape-
Built-in interface: RS-422/232: Application-
Built-in interface: RS-422: Number of channel-
Built-in interface: RS-422: Transmission speed-
Built-in interface: RS-422: Connector shape-
Built-in interface: Ethernet: Number of channel1 channel
Built-in interface: Ethernet: Data transfer method100BASE-TX, 10BASE-T
Built-in interface: Ethernet: Connector shapeRJ45 (modular jack) AUTO MDI/MDI-X
Built-in interface: Bus interface: Type-
Built-in interface: Bus interface: Number of channel-
Built-in interface: RGB interface-
Built-in interface: Printer interface-
Built-in interface: USB (host): Number of channel1 channel (rear face)
Built-in interface: USB (host): Maximum transfer rateHigh-Speed 480 Mbps
Built-in interface: USB (host): Connector shapeUSB-A
Built-in interface: USB (device): Number of channel1 channel (rear face)
Built-in interface: USB (device): Maximum transfer rateHigh-Speed 480 Mbps
Built-in interface: USB (device): Connector shapeUSB Mini-B
Built-in interface: SD memory card *121 channel, SDHC compliant (maximum 32 GB)
Built-in interface: CF card interface-
Built-in interface: PC card interface-
Built-in interface: Option function board interface-
Built-in interface: Memory board interface-
Built-in interface: Extension interfaceFor installing a communication unit or an option unit
Built-in interface: Side interfaceFor installing a communication unit
Built-in interface: Sound output interface-
Buzzer soundSingle tone (tone and tone length adjustable)
LED specifications: POWER LED2 colors (blue and orange)
Installation methodOpen frame (Stud)
Panel color-
Protective structure *6Front: IP67F *8 *10 Inside control panel: IP2X
External dimensions236 (W) x 185 (H) x 54 (D) mm (9.29 (W) x 7.28 (H) x 2.13 (D) inch)
Panel cut dimensions194 (W) x 158 (H) mm (7.64 (W) x 6.22 (H) nch)
Weight (excluding a fitting)1.5 kg (3.3 lb)

Specifications

Ambient operating temperature0°C to 55°C
Ambient storage temperature-20°C to 60°C
Ambient operating humidity10% RH to 90% RH, non-condensing
Ambient storage humidity10% RH to 90% RH, non-condensing
Vibration resistance: Approval standardsCompliant with JIS B 3502 and IEC 61131-2 *13
Vibration resistance: Under intermittent vibration[ Frequency: 5 to 8.4 Hz ] Half amplitude: 3.5 mm Sweep count: 10 times in each X, Y, or Z direction [ Frequency: 8.4 to 150 Hz ] Acceleration: 9.8 m/s 2 Sweep count: 10 times in each X, Y, or Z direction
Vibration resistance: Under continuous vibration[ Frequency: 5 to 8.4 Hz ] Half amplitude: 1.75 mm [ Frequency: 8.4 to 150 Hz ] Acceleration: 4.9 m/s 2
Shock resistanceCompliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 (15 G), 3 times in each X, Y, or Z direction) *13
Operating atmosphereNo greasy fumes, corrosive gas, flammable gas, excessive conductive dust, and direct sunlight (as well as at storage)
Operating altitude2000 m or less
Installation locationInside control panel
Overvoltage categoryII or less
Pollution degree2 or less
Cooling methodSelf-cooling
GroundingGrounding with a ground resistance of 100 Ω or less by using a ground cable that has a cross-sectional area of 2 mm 2 or more. If impossible, connect the ground cable to the control panel.
Remarks: Ambient operating temperatureIncludes the temperature inside the enclosure of the control panel to which the GOT is installed.
Remarks: Operating altitudeWhen any of the following units or option is mounted, the maximum operating ambient temperature must be 5°C lower than the one described in the general specifications: MELSECNET/H communication unit (GT15-J71LP23-25, GT15-J71BR13), CC-Link communication unit (GT15-J61BT13), protective cover for oil.
Remarks: Overvoltage categoryDo not use or store the GOT under a pressure higher than the atmospheric pressure at altitude 0 m. Doing so may cause a malfunction. Air purging by applying pressure to the control panel may create clearance between the surface sheet and the touch panel. This may cause the touch panel to be not sensitive enough or the sheet to come off.
Remarks: Pollution degreeThis indicates the section of the power supply to which the equipment is assumed to be connected between the public electrical power distribution network and the machinery within the premises. Category II applies to equipment that is supplied with power from fixed facilities. The withstand surge voltage for the equipment with the rated voltage up to 300 V is 2500 V.

Specifications

Power supply voltage100 V AC to 240 V AC (+10%, -15%)
Power supply frequency50 Hz/60 Hz (±5%)
Maximum apparent power70 VA
Power consumption: Under the maximum load31 W or less
Power consumption: Main unit11 W
Power consumption: Main unit (backlight OFF)7 W
Inrush current60 A or less (2 ms, ambient temperature: 25°C, under the maximum load)
Permissible instantaneous power failure time20 ms or less (100 V AC or more)
Noise immunityNoise voltage: 1500 Vp-p, noise width: 1 μs, measured by a noise simulator with noise frequency ranging from 25 Hz to 60 Hz
Withstand voltage1500 V AC for 1 minute across power terminals and earth
Insulation resistance500 V DC across power terminals and earth, 10 MΩ or more by an insulation resistance tester
Applicable wire0.75 mm 2 to 2 mm 2
Applicable solderless terminalSolderless terminal for M3 screw RAV1.25-3, V2-S3.3, V2-N3A, FV2-N3A
Applicable tightening torque (for terminal block terminal screws)0.5 N・m to 0.8 N・m

GT2508F-VTNA: frequently asked questions

When can GT2508F-VTNA be shipped?

GT2508F-VTNA is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up GT2508F-VTNA in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for GT2508F-VTNA and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for GT2508F-VTNA, subject to availability and destination.
