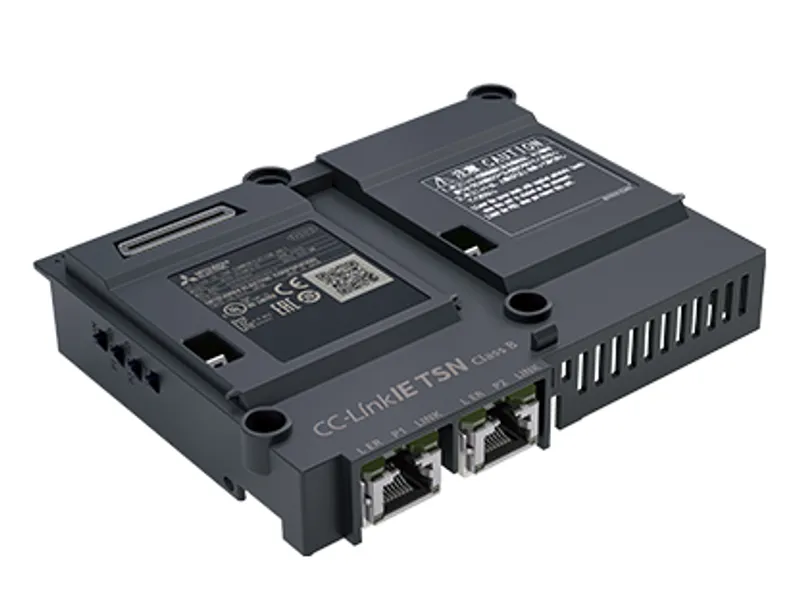

Mitsubishi Electric GT25-J71GN13-T2
Mitsubishi GOT HMI Communication unit
- MPN
- GT25-J71GN13-T2
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →
What is the Mitsubishi Electric GT25-J71GN13-T2?
The Mitsubishi Electric GT25-J71GN13-T2 is a communication unit in the GOT HMI. CC-Link IE TSN Communication Unit. Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | GOT HMI |
| Outline | CC-Link IE TSN Communication Unit |
Specifications
| Model | GT25-J71GN13-T2 |
| Category | Communication units |
| Product name | CC-Link IE TSN Communication Unit |
| Series name | GOT3000/GOT2000 |
| Station type | Local station (device station) |
| Max. link device points per network: RX | 16K points (16384 points, 2K bytes) |
| Max. link device points per network: RY | 16K points (16384 points, 2K bytes) |
| Max. link device points per network: RWr | 8K points (8192 points, 16K bytes) |
| Max. link device points per network: RWw | 8K points (8192 points, 16K bytes) |
| Max. link device points per network: LB | 32K points (32768 points, 4K bytes) |
| Max. link device points per network: LW | 16K points (16384 points, 32K bytes) |
| Max. link device points per GOT: RX | 16K points (16384 points, 2K bytes) |
| Max. link device points per GOT: RY | 16K points (16384 points, 2K bytes) |
| Max. link device points per GOT: RWr | 8K points (8192 points, 16K bytes) |
| Max. link device points per GOT: RWw | 8K points (8192 points, 16K bytes) |
| Max. link device points per GOT: LB | 32K points (32768 points, 4K bytes) |
| Max. link device points per GOT: LW | 16K points (16384 points, 32K bytes) |
| Transmission specifications: Communication speed | 1 Gbps, 100 Mbps |
| Transmission specifications: Connection cable | • An Ethernet cable that meets the 1000BASE-T standard: Category 5e or higher (double shielded, STP) , straight cable • An Ethernet cable that meets the 100BASE-TX standard: Category 5 or higher (double shielded, STP) , straight cable |
| Transmission specifications: Max. station-to-station distance | 100 m (conform to ANSI/TIA/EIA-568-B (category 5e)) |
| Transmission specifications: Overall cable distance | • Line topology: 12000 m (for connecting 1 manager station and 120 device stations) • Ring topology: 12100 m (for connecting 1 manager station and 120 device stations) • Other: Depending on the system configuration |
| Transmission specifications: Max. number of cascaded stages | 20 |
| Transmission specifications: Transmission path | Line topology, star topology, line-star topology, or ring topology |
| Authentication class | CC-Link IE TSN Class B (Synchronized Realtime Communication) |
| Max. number of stations per network | 121 (1 manager station and 120 device stations) |
| Max. number of networks | 239 |
| Communication method | Time division method |
| Transient transmission capacity | maximum 1920 bytes |
| Internal current consumption | 0.92 A |
| Weight | 0.17 kg |
| Supported model | GT37 *2 , GT27, GT2512-S, GT2510-V, GT2508-V, GT2512F-S, GT2510F-V, GT2508F-V *1 |
No matching specifications
Downloads & documentation
Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.
Data sheets & manuals
- GOT3000/GOT2000 Series CC-Link IE TSN Communication Unit User's Manual (IB-0800633E-F)
- GOT2000 Series User's Manual (Hardware) (SH-081194ENG-AW)
- GOT2000系列 主机使用说明书(硬件篇) (SH-081202CHN-AW)
- GOT2000 Series Connection Manual (Mitsubishi Electric Products) For GT Works3 Version1 (SH-081197ENG-BA)
- GOT2000系列 连接手册(三菱电机机器连接篇) 对应GT Works3 Version1 (SH-081205CHN-BA)
- GOT2000 Series Connection Manual (Non-Mitsubishi Electric Products 1) For GT Works3 Version1 (SH-081198ENG-AU)
- GOT2000系列 连接手册(其他公司机器连接篇1) 对应GT Works3 Version1 (SH-081206CHN-AU)
- GOT2000 Series Connection Manual (Non-Mitsubishi Electric Products 2) For GT Works3 Version1 (SH-081199ENG-AQ)
- GOT2000系列 连接手册(其他公司机器连接篇2) 对应GT Works3 Version1 (SH-081207CHN-AP)
- GOT2000 Series Connection Manual (Microcomputers, MODBUS/Fieldbus Products, Peripherals) For GT Works3 Version1 (SH-081200ENG-AS)
GT25-J71GN13-T2: frequently asked questions
When can GT25-J71GN13-T2 be shipped?
GT25-J71GN13-T2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up GT25-J71GN13-T2 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for GT25-J71GN13-T2 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for GT25-J71GN13-T2, subject to availability and destination.
