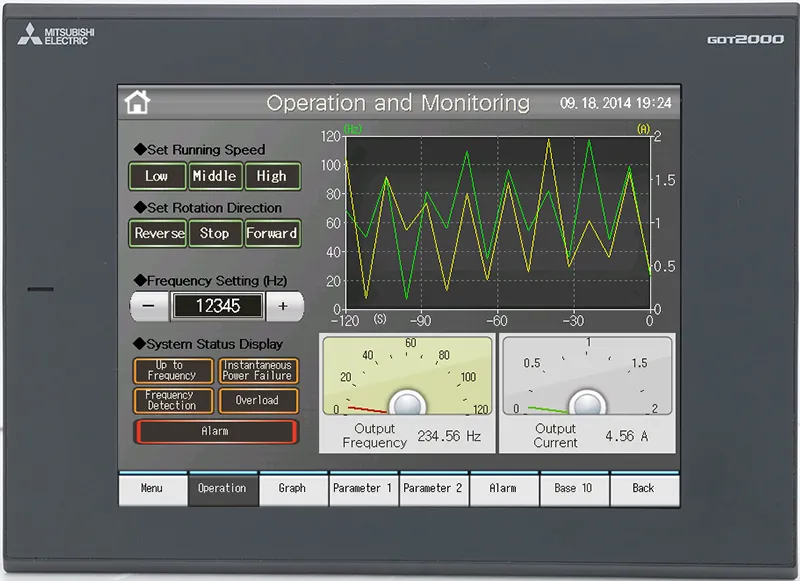

GT2310-VTBA Mitsubishi GOT HMI 10.4"

MPN: GT2310-VTBA · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original GT2310-VTBA (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi GOT HMI – GOTs
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the GT2310-VTBA now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the GT2310-VTBA, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can GT2310-VTBA be shipped?

GT2310-VTBA is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up GT2310-VTBA in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for GT2310-VTBA and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for GT2310-VTBA, subject to availability and destination.

The Mitsubishi Electric GT2310-VTBA is a 10.4" in the GOT HMI. Standard. Mitsubishi Electric has discontinued it (2023/09 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	GOT HMI
Category	10.4"
Type	VGA: 640 x 480 dots
Sales status	2023/09 Discontinued (Mitsubishi Electric)
Outline	Standard

Specifications

Model	GT2310-VTBA
Product name	GT23 model
Series name	GOT2000
Model name	GT23

Specifications

Display section 1 2: Display device	TFT color LCD
Display section 1 2: Screen size	10.4"
Display section 1 2: Resolution	VGA: 640 x 480 dots
Display section 1 2: Display size	211.2 (W) x 158.4 (H) mm (8.31 (W) x 6.24 (H) inch)
Display section 1 2: Number of displayed characters	16-dot standard font: 40 characters x 30 lines (two-byte characters) 12-dot standard font: 53 characters x 40 lines (two-byte characters)
Display section 1 2: Display color	65536 colors
Display section 1 2: Brightness adjustment	16 levels
Display section 1 2: Registrable number of screen	4096
Display section 1 2: Backlight *4	LED (not replaceable)
Display section 1 2: Backlight life	Approx. 50000 h (operating ambient temperature: 25°C, display intensity: 50%)
Display section 1 2: Backlight color	White
Touch panel 3 9: Type	Analog resistive film
Touch panel 3 9: Key size	Minimum 2 x 2 dots *7 (per key)
Touch panel 3 9: Simultaneous press	Not available *5 (Only 1 point can be touched.)
Touch panel 3 9: Life	1 million touches or more (operating force: 0.98 N or less)
Human sensor: Detection length	－
Human sensor: Detection temperature	－
User memory	Memory for storage (ROM) *10 : 9 MB Memory for operation (RAM) : 9 MB Life (number of write times) : 100000 times
Built-in clock precision	±90 seconds/month (ambient temperature: 25°C)
Battery: Type	GT11-50BAT lithium battery (option)
Battery: Backup target	SRAM data, clock data, system status log data
Battery: Life	Approx. 5 years (ambient temperature: 25°C)
Built-in interface: RS-232: Number of channel	1 channel
Built-in interface: RS-232: Transmission speed	115200, 57600, 38400, 19200, 9600, 4800 bps
Built-in interface: RS-232: Connector shape	D-sub 9-pin (male)
Built-in interface: RS-422/485: Number of channel	1 channel
Built-in interface: RS-422/485: Transmission speed	115200, 57600, 38400, 19200, 9600, 4800 bps
Built-in interface: RS-422/485: Connector shape	D-sub 9-pin (female)
Built-in interface: RS-422/232: Number of channel	－
Built-in interface: RS-422/232: Transmission speed	－
Built-in interface: RS-422/232: Connector shape	－
Built-in interface: RS-422/232: Application	－
Built-in interface: RS-422: Number of channel	－
Built-in interface: RS-422: Transmission speed	－
Built-in interface: RS-422: Connector shape	－
Built-in interface: Ethernet: Number of channel	1 channel
Built-in interface: Ethernet: Data transfer method	100BASE-TX, 10BASE-T
Built-in interface: Ethernet: Connector shape	RJ45 (modular jack) AUTO MDI/MDI-X
Built-in interface: Bus interface: Type	－
Built-in interface: Bus interface: Number of channel	－
Built-in interface: RGB interface	－
Built-in interface: Printer interface	－
Built-in interface: USB (host): Number of channel	1 channel (rear face)
Built-in interface: USB (host): Maximum transfer rate	Full-Speed 12 Mbps
Built-in interface: USB (host): Connector shape	USB-A
Built-in interface: USB (device): Number of channel	1 channel (rear face)
Built-in interface: USB (device): Maximum transfer rate	Full-Speed 12 Mbps
Built-in interface: USB (device): Connector shape	USB Mini-B
Built-in interface: SD memory card *10	1 channel, SDHC compliant (maximum 32 GB)
Built-in interface: CF card interface	－
Built-in interface: PC card interface	－
Built-in interface: Option function board interface	－
Built-in interface: Memory board interface	－
Buzzer sound	Single tone (tone length adjustable)
LED specifications: POWER LED	2 colors (blue and orange)
Installation method	Standard
Panel color	Black
Protective structure *6	Front: IP67F *8 Inside control panel: IP2X
External dimensions	303 (W) x 218 (H) x 56 (D) mm (11.93 (W) x 8.58 (H) x 2.20 (D) inch)
Panel cut dimensions	289 (W) x 200 (H) mm (11.38 (W) x 7.87 (H) inch)
Weight (excluding a fitting)	1.9 kg (4.2 lb)

Specifications

Ambient operating temperature	0°C to 55°C
Ambient storage temperature	-20°C to 60°C
Ambient operating humidity	10% RH to 90% RH, non-condensing
Ambient storage humidity	10% RH to 90% RH, non-condensing
Vibration resistance: Approval standards	Compliant with JIS B 3502 and IEC 61131-2 *11
Vibration resistance: Under intermittent vibration	[ Frequency: 5 to 8.4 Hz ] Half amplitude: 3.5 mm Sweep count: 10 times in each X, Y, or Z direction [ Frequency: 8.4 to 150 Hz ] Acceleration: 9.8 m/s 2 Sweep count: 10 times in each X, Y, or Z direction
Vibration resistance: Under continuous vibration	[ Frequency: 5 to 8.4 Hz ] Half amplitude: 1.75 mm [ Frequency: 8.4 to 150 Hz ] Acceleration: 4.9 m/s 2
Shock resistance	Compliant with JIS B 3502 and IEC 61131-2 (147 m/s 2 (15 G), 3 times in each X, Y, or Z direction) *11
Operating atmosphere	No greasy fumes, corrosive gas, flammable gas, excessive conductive dust, and direct sunlight (as well as at storage)
Operating altitude	2000 m or less
Installation location	Inside control panel
Overvoltage category	II or less
Pollution degree	2 or less
Cooling method	Self-cooling
Grounding	Grounding with a ground resistance of 100 Ω or less by using a ground cable that has a cross-sectional area of 2 mm 2 or more. If impossible, connect the ground cable to the control panel.
Remarks: Ambient operating temperature	Includes the temperature inside the enclosure of the control panel to which the GOT is installed.
Remarks: Ambient operating humidity	If the ambient temperature exceeds 40°C, the absolute humidity must not exceed 90% RH at 40°C.
Remarks: Ambient storage humidity	If the ambient temperature exceeds 40°C, the absolute humidity must not exceed 90% RH at 40°C.
Remarks: Operating altitude	Do not use or store the GOT under a pressure higher than the atmospheric pressure at altitude 0 m. Doing so may cause a malfunction. Air purging by applying pressure to the control panel may create clearance between the surface sheet and the touch panel. This may cause the touch panel to be not sensitive enough or the sheet to come off.
Remarks: Overvoltage category	This indicates the section of the power supply to which the equipment is assumed to be connected between the public electrical power distribution network and the machinery within the premises. Category II applies to equipment that is supplied with power from fixed facilities. The withstand surge voltage for the equipment with the rated voltage up to 300 V is 2500 V.
Remarks: Pollution degree	This indicates the occurrence rate of conductive material in an environment where a device is used. Pollution degree 2 indicates an environment where only non-conductive pollution occurs normally and a temporary conductivity caused by condensation shall be expected depending on the conditions.

Specifications

Power supply voltage	100 V AC to 240 V AC (+10%, -15%)
Power supply frequency	50 Hz/60 Hz (±5%)
Maximum apparent power	44 VA
Power consumption: Under the maximum load	18 W or less
Power consumption: Main unit	15 W
Power consumption: Main unit (backlight OFF)	8 W
Inrush current	40 A or less (4 ms, ambient temperature: 25°C, under the maximum load)
Permissible instantaneous power failure time	20 ms or less (100 V AC or more)
Noise immunity	Noise voltage: 1500 Vp-p, noise width: 1 μs, measured by a noise simulator with noise frequency ranging from 25 Hz to 60 Hz
Withstand voltage	1500 V AC for 1 minute across power terminals and earth
Insulation resistance	500 V DC across power terminals and earth, 10 MΩ or more by an insulation resistance tester
Applicable wire	0.75 mm 2 to 2 mm 2
Applicable solderless terminal	Solderless terminal for M3 screw RAV1.25-3, V2-S3.3, V2-N3A, FV2-N3A
Applicable tightening torque (for terminal block terminal screws)	0.5 N・m to 0.8 N・m

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

GT23 General Description (IB-0800503ENG-L)	PDF · 0.51MB
GOT2000 Series Connection Manual (Mitsubishi Electric Products) For GT Works3 Version1 (SH-081197ENG-BA)	PDF · 82.49MB
GOT2000 Series Connection Manual (Non-Mitsubishi Electric Products 1) For GT Works3 Version1 (SH-081198ENG-AU)	PDF · 17.94MB
GOT2000 Series Connection Manual (Non-Mitsubishi Electric Products 2) For GT Works3 Version1 (SH-081199ENG-AQ)	PDF · 13.92MB
GOT2000 Series Connection Manual (Microcomputers, MODBUS/Fieldbus Products, Peripherals) For GT Works3 Version1 (SH-081200ENG-AS)	PDF · 10.70MB
GOT2000 Series User's Manual (Hardware) (SH-081194ENG-AW)	PDF · 13.15MB
GOT2000系列主机使用说明书(硬件篇) (SH-081202CHN-AW)	PDF · 12.93MB
GOT2000 Series User's Manual (Utility) (SH-081195ENG-AW)	PDF · 18.89MB
GOT2000系列主机使用说明书(实用菜单篇) (SH-081203CHN-AW)	PDF · 17.11MB
GOT2000 Series User's Manual (Monitor) (SH-081196ENG-AX)	PDF · 19.21MB
