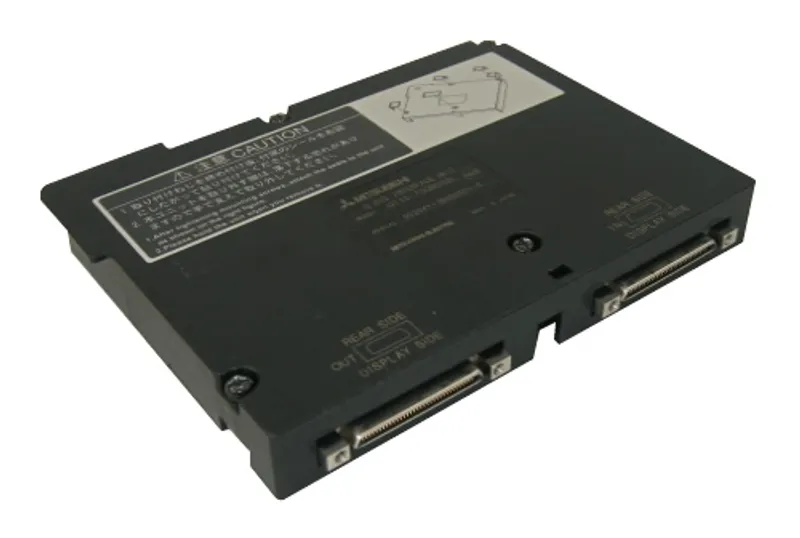

GT15-75QBUS2L Mitsubishi GOT HMI Communication unit

MPN: GT15-75QBUS2L · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi GOT HMI – Communication units
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can GT15-75QBUS2L be shipped?

GT15-75QBUS2L is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up GT15-75QBUS2L in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for GT15-75QBUS2L and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for GT15-75QBUS2L, subject to availability and destination.

The Mitsubishi Electric GT15-75QBUS2L is a communication unit in the GOT HMI. Q bus connection (2 channels) unit slim model. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	GOT HMI
Outline	Q bus connection (2 channels) unit slim model

Specifications

Model	GT15-75QBUS2L
Category	Communication units
Product name	Bus connection unit
Series name	GOT2000/GOT1000
Interface	QCPU (Q Mode) bus connection
Connector: IN	1
Connector: OUT	1
I/O occupied points	16 points (I/O assignment: 16 intelligent points)
Internal current consumption (5.0 V DC) *1	0.44 A
Weight	0.14 kg (0.31 lb)
Supported model	GT27, GT25 (Excluding GT2505-VTBD, GT25 wide models, GT2507T-WTSD, GT2506HS-VTBD, and GT2505HS-VTBD.) *2 , GT16 (Excluding Handy GOT.) , GT15
Remarks -1	Cannot be stacked with other units.
Remarks -2	Option units manufactured from October 2026 onward will not be covered by the warranty when used with the discontinued GOT1000 series. For the details, please refer to the Production Discontinuation of Main Units and Some Option Units in the GOT1000 Series for Overseas (GOT-A-0095)

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

GOT3000/GOT2000/GOT1000 Series Bus Connection Unit User's Manual (IB-0800298E-Q)	PDF · 0.30MB
GOT2000 Series User's Manual (Hardware) (SH-081194ENG-AW)	PDF · 13.15MB
GOT2000系列主机使用说明书(硬件篇) (SH-081202CHN-AW)	PDF · 12.93MB
GOT2000 Series Connection Manual (Mitsubishi Electric Products) For GT Works3 Version1 (SH-081197ENG-BA)	PDF · 82.49MB
GOT2000系列连接手册(三菱电机机器连接篇) 对应GT Works3 Version1 (SH-081205CHN-BA)	PDF · 76.31MB
GOT2000 Series Connection Manual (Non-Mitsubishi Electric Products 1) For GT Works3 Version1 (SH-081198ENG-AU)	PDF · 17.94MB
GOT2000系列连接手册(其他公司机器连接篇1) 对应GT Works3 Version1 (SH-081206CHN-AU)	PDF · 15.02MB
GOT2000 Series Connection Manual (Non-Mitsubishi Electric Products 2) For GT Works3 Version1 (SH-081199ENG-AQ)	PDF · 13.92MB
GOT2000系列连接手册(其他公司机器连接篇2) 对应GT Works3 Version1 (SH-081207CHN-AP)	PDF · 11.62MB
GOT2000 Series Connection Manual (Microcomputers, MODBUS/Fieldbus Products, Peripherals) For GT Works3 Version1 (SH-081200ENG-AS)	PDF · 10.70MB
