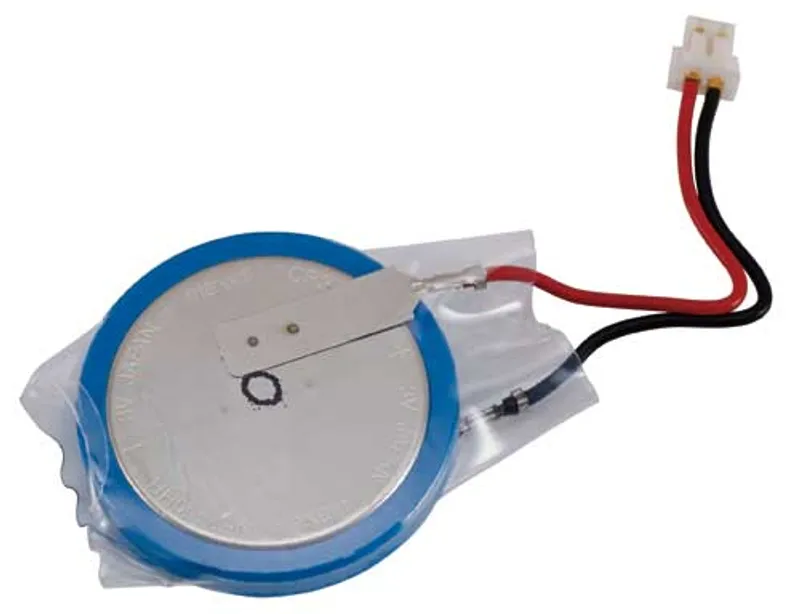

GT11-50BAT Mitsubishi GOT HMI Option
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Mitsubishi GOT HMI – Options |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can GT11-50BAT be shipped?
GT11-50BAT is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up GT11-50BAT in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for GT11-50BAT and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for GT11-50BAT, subject to availability and destination.
The Mitsubishi Electric GT11-50BAT is a option in the GOT HMI. Battery For backup of SRAM data, clock data, and system status log data (for replacement) Conformance standard: CE(Battery). Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | GOT HMI |
| Outline | Battery For backup of SRAM data, clock data, and system status log data (for replacement) Conformance standard: CE(Battery) |
Specifications
| Model | GT11-50BAT |
| Category | Options |
| Product name | Battery |
| Series name | GOT3000/GOT2000/GOT1000 |
| Type | Manganese dioxide lithium primary battery |
| Initial voltage | 3.0 V |
| Nominal current | 550 mAh |
| Storage life | Approx. 5 years (Operating ambient temperature of 25°C) |
| Total power stoppage time | Please refer to the following User's Manual. ・ GOT2000 Series User's Manual (Hardware): SH(NA)-081194ENG |
| Battery weight | 7.2 g |
| Lithium content | 0.15 g |
| Use | Battery for backup of SRAM data, clock data, and system status log data (for replacement) |
| Supported model | GT37, GT27, GT25, GT2512-W, GT2510-W, GT2507-W, GT2507T-W, GT2105-Q, GT2104-R, GT2104-P, GT2505HS-V, GT1655-V, GT14, GT11, GT1455HS-Q, GT1450HS-Q, GT1155HS-Q, GT1150HS-Q, GT1055-Q, GT1050-Q, GT1045-Q, GT1040-Q, GT1030-H, GT1030-L (GT21 does not support the system status log data backup function.) |
Downloads & documentation
Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.
Data sheets & manuals
| GOT2000 Series User's Manual (Hardware) (SH-081194ENG-AW) | PDF · 13.15MB |
| GOT3000 Series User's Manual (Hardware) (SH-082591ENG-C) | PDF · 5.03MB |
| GOT3000系列本体使用手册(硬件篇) (SH-082601CHN-C) | PDF · 5.02MB |
More Mitsubishi Electric (Factory Automation) parts
Available on requestGT10-C30R2-6P Mitsubishi GOT HMI RS-232 cable
Available on requestGT10-C30R4-25P Mitsubishi GOT HMI RS-422 cable
Available on requestGT10-C30R4-8P Mitsubishi GOT HMI RS-422 cable

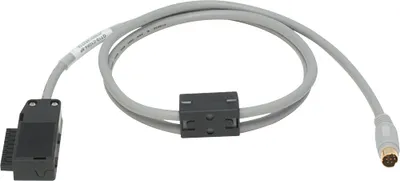

Available on requestGT10-C30R4-8PC Mitsubishi GOT HMI RS-422 cable
