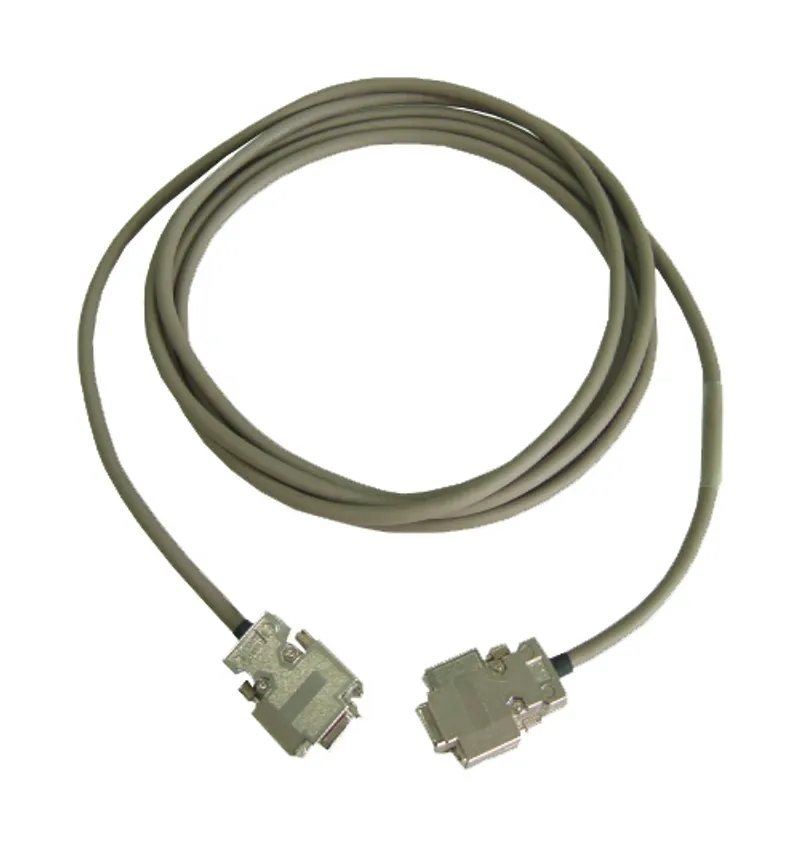

GT09-C30R2-9P Mitsubishi GOT HMI RS-232 cable

MPN: GT09-C30R2-9P · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi GOT HMI – Cables
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can GT09-C30R2-9P be shipped?

GT09-C30R2-9P is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up GT09-C30R2-9P in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for GT09-C30R2-9P and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for GT09-C30R2-9P, subject to availability and destination.

The Mitsubishi Electric GT09-C30R2-9P is a RS-232 cable in the GOT HMI. 3 m. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	GOT HMI
Category	RS-232 cable
Outline	3 m

Specifications

Model	GT09-C30R2-9P
Category	Cables
Product name	RS-232 cable
Series name	GOT3000/GOT2000/GOT1000
Type	RS-232 cable
Detail type	Computer link connection cable CC-Link (G4) connection cable
Product Summary	For connecting a the serial communication module and the GOT For connecting a computer link module and the GOT For connecting a peripheral connection module (AJ65BT-R2N) and the GOT [D-sub 9-pin ⇔ D-sub 9-pin]
Cable length	3 m
Supported model	[GOT3000] GT37 wide models, GT37 [GOT2000] GT27, GT25, GT25 Wide, GT25 Rugged, GT25 Handy GOT 1 , GT21 Wide, GT21 2 3 1 Can be used when used together with the Handy GOT connector conversion box(GT11H-CNB-37S/GT16H-CNB-42S). 2 This cable is usable for GT2103-PMBDS, GT2103-PMBDS2. 3 GT2103-PMBDS, GT2103-PMBDS2 is possible to correspond by combining the GT10-C02H-6PT9P type RS-232 connector co
Recommended product	○
Remarks -1	This products listed are developed by Mitsubishi Electric Systems & Service Co., LTD. and sold through your local sales office.
Remarks -2	Note that the usable connection types and cables differ depending on the GOT model. For the details, please refer to the GOT2000 Series Connection Manual or GOT1000 Series Connection Manual.

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

GOT2000 Series Connection Manual (Mitsubishi Electric Products) For GT Works3 Version1 (SH-081197ENG-BA)	PDF · 82.49MB
GOT2000系列连接手册(三菱电机机器连接篇) 对应GT Works3 Version1 (SH-081205CHN-BA)	PDF · 76.31MB
GOT2000 Series User's Manual (Hardware) (SH-081194ENG-AW)	PDF · 13.15MB
GOT2000系列主机使用说明书(硬件篇) (SH-081202CHN-AW)	PDF · 12.93MB
GOT2000 Series Connection Manual (Microcomputers, MODBUS/Fieldbus Products, Peripherals) For GT Works3 Version1 (SH-081200ENG-AS)	PDF · 10.70MB
GOT2000系列连接手册(微型计算机/MODBUS/现场总线/周边机器连接篇) 对应GT Works3 Version1 (SH-081208CHN-AS)	PDF · 8.40MB
