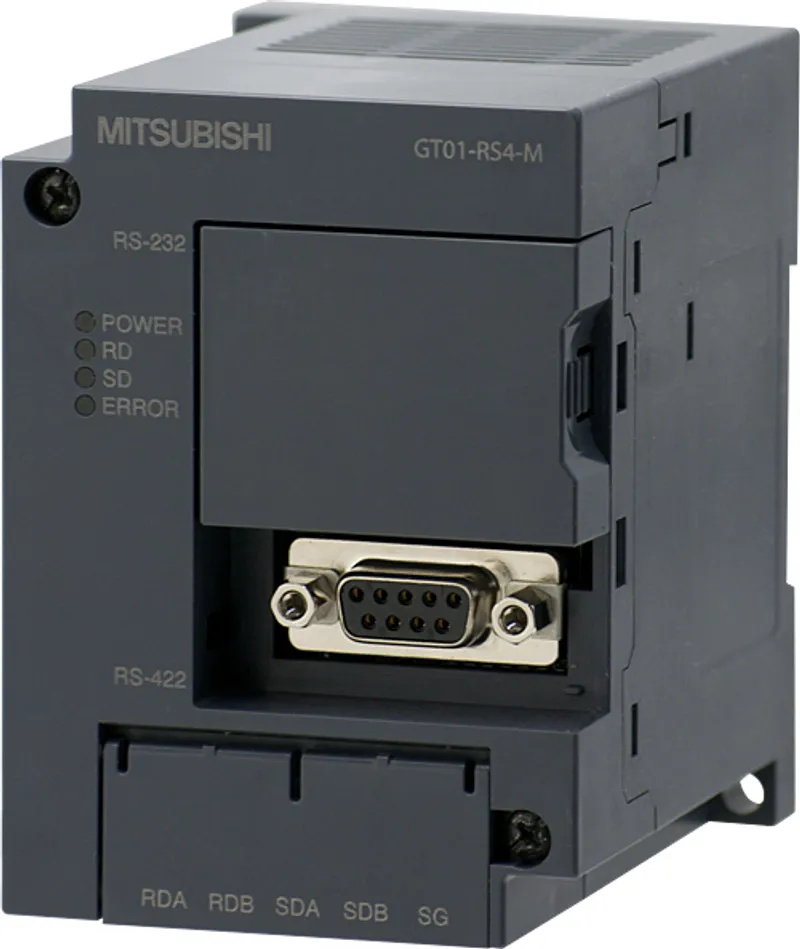

What is the Mitsubishi Electric GT01-RS4-M?
The Mitsubishi Electric GT01-RS4-M is a communication unit in the GOT HMI. A communication unit to connect a single programmable controller to multiple GOTs (1 to N communication), equipped with USB, RS-232, RS-422, and RS-485 ports for four channels. Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | GOT HMI |
| Outline | A communication unit to connect a single programmable controller to multiple GOTs (1 to N communication), equipped with USB, RS-232, RS-422, and RS-485 ports for four channels |
Specifications
| Model | GT01-RS4-M |
| Category | Communication units |
| Product name | Serial multi-drop connection unit |
| Series name | GOT2000/GOT1000/GOT SIMPLE |
| Connection configuration | [RS-422] 1:1 [RS-232] 1:1 [RS-485] 1:N |
| Transmission standards: Transmission method | [RS-422] 1ch [RS-232] 1ch [RS-485] 1ch |
| Transmission standards: Transmission speed | [RS-422] 115200/57600/38400/19200/9600/4800 bps [RS-232] 115200/57600/38400/19200/9600/4800 bps [RS-485] 115200/57600/38400/19200/9600/4800 bps |
| Transmission standards: Insulation method | [RS-422] Photocoupler insulation [RS-232] Photocoupler insulation [RS-485] Photocoupler insulation |
| Transmission standards: Connector | [RS-422] D-sub 9-pin (female) [RS-232] D-sub 9-pin (male) [RS-485] Terminal block (attach/detach type) |
| Transmission distance | [RS-422] 30 m or less [RS-232] 3 m or less [RS-485] 500 m (max.) (maximum overall extension length of the system) |
| Number of modules connected | [RS-422] 1 [RS-232] 1 [RS-485] 16 (max.) |
| Communication method | [RS-422] Full duplex [RS-232] Full duplex [RS-485] Half duplex and full duplex (Can be selected depending on the wiring) |
| Uses | [RS-422] For PLC connection (Cannot be used simultaneously with RS-232) [RS-232] For PLC connection (Cannot be used simultaneously with RS-422) [RS-485] For multi-drop connection [USB] PC communication |
| External dimensions | 65 (W) x 80 (H) x 90 (D) mm |
| Weight | Approx. 0.3 kg |
| Supported model | GT27 (Version A or later) GT25 (Version A or later) GT2506HS-VTBD GT21 (Version A or later) (Excluding GT2104-PMBLS, GT2103-PMBLS.) GS21-W-N GT16 (Version A or later) GT15 (Version A or later) GT14 (Version A or later) GT1155-QTBD (Version C or later) GT1155-QSBD (Version F or later) GT1150-QLBD (Version F or later) GT105□ (Version C or later) GT104□ (Version A or later) GT1030-□BD/□WD/□BDW/□WDW ( |
| Remarks | Option units manufactured from October 2026 onward will not be covered by the warranty when used with the discontinued GOT1000 series. For the details, please refer to the Production Discontinuation of Main Units and Some Option Units in the GOT1000 Series for Overseas (GOT-A-0095) |
Specifications
| Operating ambient temperature | 0 to 55°C |
| Storage ambient temperature | -20°C to 60°C |
| Operating ambient humidity | 10 to 90% RH, non-condensing (The wet bulb temperature is 39°C or less.) |
| Storage ambient humidity | 10 to 90% RH, non-condensing (The wet bulb temperature is 39°C or less.) |
| Vibration resistance: Approval standards | Conforms to JIS C60068-2-6 |
| Vibration resistance: DIN rail mounting | [ Frequency: 10 to 57 Hz ] Half-amplitude 0.035 mm, Sweep Count 10 times each in X, Y and Z directions [ Frequency: 57 to 150 Hz ] Acceleration 4.9 m/s 2 , Sweep Count 10 times each in X, Y and Z directions |
| Vibration resistance: Direct mounting | [ Frequency: 10 to 57 Hz ] Half-amplitude 0.075 mm, Sweep Count 10 times each in X, Y and Z directions [ Frequency: 57 to 150 Hz ] Acceleration 9.8 m/s 2 , Sweep Count 10 times each in X, Y and Z directions |
| Shock resistance | Conforms to JIS C60068-2-27 (147 m/s 2 , 11 ms, Sine half-wave pulse, 3 times each in the X, Y, and Z directions) |
| Operating atmosphere | Must be free of lamp black, corrosive gas, flammable gas, or excessive amounts of electro conductive dust particles and must not be placed in direct sunlight. (This applies for storage as well) |
| Operating altitude | 2000 m (6562 ft) max. |
| Cooling method | Self-cooling |
Specifications
| Power supply voltage | 24 V DC (+10%, -15%) |
| Fuse (built-in, not exchangeable) | 1 A |
| Power consumption | 3.36 W or less (140 mA/24 V DC) |
| Inrush current | 14 A or less (24 V DC, 2 ms) |
| Withstand voltage | 500 V AC for 1 minute (across power supply terminals and earth) |
| Insulation resistance | 10 MΩ or larger by insulation resistance tester (across power supply terminals and earth) |
| Grounding | Class D grounding (100 Ω or less), To be connected to the panel when grounding is not possible |
No matching specifications
Downloads & documentation
Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.
Data sheets & manuals
- GT01-RS4-M Serial Multi-Drop Connection Unit USER'S MANUAL (JY997D35801-K)
- GOT2000 Series User's Manual (Hardware) (SH-081194ENG-AW)
- GOT2000系列 主机使用说明书(硬件篇) (SH-081202CHN-AW)
- GOT2000 Series Connection Manual (Mitsubishi Electric Products) For GT Works3 Version1 (SH-081197ENG-BA)
- GOT2000系列 连接手册(三菱电机机器连接篇) 对应GT Works3 Version1 (SH-081205CHN-BA)
- GOT2000 Series Connection Manual (Non-Mitsubishi Electric Products 1) For GT Works3 Version1 (SH-081198ENG-AU)
- GOT2000系列 连接手册(其他公司机器连接篇1) 对应GT Works3 Version1 (SH-081206CHN-AU)
- GOT2000 Series Connection Manual (Non-Mitsubishi Electric Products 2) For GT Works3 Version1 (SH-081199ENG-AQ)
- GOT2000系列 连接手册(其他公司机器连接篇2) 对应GT Works3 Version1 (SH-081207CHN-AP)
- GOT2000 Series Connection Manual (Microcomputers, MODBUS/Fieldbus Products, Peripherals) For GT Works3 Version1 (SH-081200ENG-AS)
