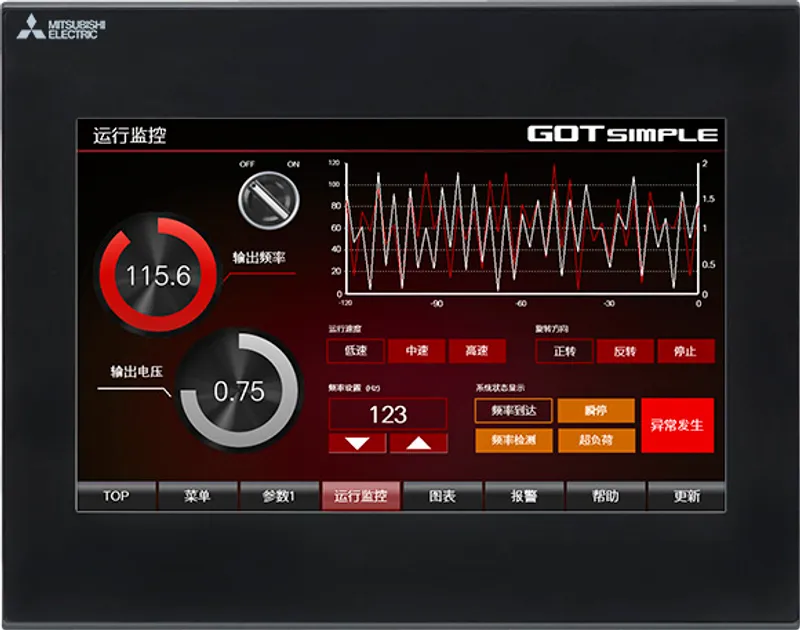

GS2110-WTBD-N Mitsubishi GOT HMI 10" Wide

MPN: GS2110-WTBD-N · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi GOT HMI – GOTs
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can GS2110-WTBD-N be shipped?

GS2110-WTBD-N is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up GS2110-WTBD-N in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for GS2110-WTBD-N and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for GS2110-WTBD-N, subject to availability and destination.

The Mitsubishi Electric GS2110-WTBD-N is a 10" Wide in the GOT HMI. Standard. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	GOT HMI
Category	10" Wide
Type	WVGA: 800 x 480 dots
Outline	Standard

Specifications

Model	GS2110-WTBD-N
Product name	GS21 model
Series name	GOT SIMPLE
Model name	GS21

Specifications

Display section *1: Display device	TFT color LCD
Display section *1: Screen size	10" Wide
Display section *1: Resolution	WVGA: 800 x 480 dots
Display section *1: Display size	222 (W) x 132.5 (H) mm (8.74 (W) x 5.22 (H) inch) (Horizontal format)
Display section *1: Number of displayed characters	16-dot standard font: 50 characters x 30 lines (two-byte characters) 12-dot standard font: 66 characters x 40 lines (two-byte characters) (Horizontal format)
Display section *1: Display color	65536 colors
Display section *1: Brightness adjustment	32 levels
Display section *1: Backlight	LED (not replaceable)
Display section *1: Backlight color	White
Touch panel *2: Type	Analog resistive film
Touch panel *2: Key size	Minimum 2 x 2 dots (per key)
Touch panel *2: Simultaneous press	Not available (Only 1 point can be touched.)
Touch panel *2: Life	1 million touches or more (operating force: 0.98 N or less)
Human sensor: Detection length	－
Human sensor: Detection temperature	－
User memory: Flash memory: Capacity	Flash memory (Internal) : 15 MB
User memory: Flash memory: Life (number of write times)	100000 times
User memory: Flash memory: Application	for storing project data, OS
Built-in interface: RS-232: Number of channel	1 channel
Built-in interface: RS-232: Transmission speed	115200, 57600, 38400, 19200, 9600, 4800 bps
Built-in interface: RS-232: Connector shape	D-sub 9-pin (male)
Built-in interface: RS-422/485: Number of channel	1 channel
Built-in interface: RS-422/485: Transmission speed	115200, 57600, 38400, 19200, 9600, 4800 bps
Built-in interface: RS-422/485: Connector shape	D-sub 9-pin (female)
Built-in interface: RS-422/485: Terminating resistor	330 Ω, 110 Ω, OPEN (Selectable by the terminating resistor setting switch.)
Built-in interface: RS-422/232: Number of channel	－
Built-in interface: RS-422/232: Transmission speed	－
Built-in interface: RS-422/232: Connector shape	－
Built-in interface: RS-422: Number of channel	－
Built-in interface: RS-422: Transmission speed	－
Built-in interface: RS-422: Connector shape	－
Built-in interface: RS-422: Terminating resistor	－
Built-in interface: Ethernet: Number of channel	1 channel
Built-in interface: Ethernet: Data transfer method	100BASE-TX, 10BASE-T
Built-in interface: Ethernet: Connector shape	RJ45 (modular jack) AUTO MDI/MDI-X
Built-in interface: Bus interface: Type	－
Built-in interface: Bus interface: Number of channel	－
Built-in interface: RGB interface	－
Built-in interface: Printer interface	－
Built-in interface: USB (host): Number of channel	－
Built-in interface: USB (host): Maximum transfer rate	－
Built-in interface: USB (host): Connector shape	－
Built-in interface: USB (device): Number of channel	1 channel (rear face)
Built-in interface: USB (device): Maximum transfer rate	Full-Speed 12 Mbps
Built-in interface: USB (device): Connector shape	USB Mini-B
Built-in interface: SD memory card	1 channel, SDHC compliant (maximum 32 GB)
Built-in interface: CF card interface	－
Built-in interface: PC card interface	－
Built-in interface: Option function board interface	－
Built-in interface: Memory board interface	－
Buzzer sound	Single tone (LONG/SHORT/OFF adjustable)
LED specifications: POWER LED	－
Installation method	Standard
Panel color	Black
Protective structure *3	Front: IP65F
External dimensions	272 (W) x 214 (H) x 56 (D) mm (10.71 (W) x 8.43 (H) x 2.21 (D) inch)
Panel cut dimensions	258 (W) x 200 (H) mm (10.16 (W) x 7.88 (H) inch)
Weight (excluding a fitting)	1.3 kg

Specifications

Ambient operating temperature	0°C to 50 °C
Ambient storage temperature	-20°C to 60 °C
Ambient operating humidity	10% RH to 90% RH, non-condensing
Ambient storage humidity	10% RH to 90% RH, non-condensing
Vibration resistance: Approval standards	Conforms to IEC 61131-2 *4
Vibration resistance: Under intermittent vibration	[ Frequency: 5 to 8.4 Hz ] Half amplitude: 3.5 mm Sweep count: 10 times in each X, Y, or Z direction [ Frequency: 8.4 to 150 Hz ] Acceleration: 9.8 m/s 2 Sweep count: 10 times in each X, Y, or Z direction
Vibration resistance: Under continuous vibration	[ Frequency: 5 to 8.4 Hz ] Half amplitude: 1.75 mm [ Frequency: 8.4 to 150 Hz ] Acceleration: 4.9 m/s 2
Shock resistance	Conforms to IEC 61131-2 (147 m/s 2 (15 G), 3 times in each X, Y, or Z direction) *4
Operating atmosphere	No greasy fumes, corrosive gas, flammable gas, excessive conductive dust, and direct sunlight (as well as at storage)
Operating altitude	2000 m or less
Installation location	Inside control panel
Overvoltage category	II or less
Pollution degree	2 or less
Cooling method	Self-cooling
Grounding	Grounding with a ground resistance of 100 Ω or less by using a ground cable that has a cross-sectional area of 2 mm 2 or more. If impossible, connect the ground cable to the control panel.
Remarks: Ambient operating humidity	If the ambient temperature exceeds 40°C, the absolute humidity must not exceed 90% RH at 40°C.
Remarks: Ambient storage humidity	If the ambient temperature exceeds 40°C, the absolute humidity must not exceed 90% RH at 40°C.
Remarks: Operating altitude	Do not use or store the GOT under a pressure higher than the atmospheric pressure at altitude 0 m. Doing so may cause a malfunction. Air purging by applying pressure to the control panel may create clearance between the surface sheet and the touch panel. This may cause the touch panel to be not sensitive enough or the sheet to come off.
Remarks: Overvoltage category	This indicates the section of the power supply to which the equipment is assumed to be connected between the public electrical power distribution network and the machinery within the premises. Category II applies to equipment that is supplied with power from fixed facilities. The withstand surge voltage for the equipment with the rated voltage up to 300 V is 2500 V.
Remarks: Pollution degree	This indicates the occurrence rate of conductive material in an environment where a device is used. Pollution degree 2 indicates an environment where only non-conductive pollution occurs normally and a temporary conductivity caused by condensation shall be expected depending on the conditions.

Specifications

Power supply voltage	24 V DC (+10%, -15%), ripple voltage 200 mV or less
Power supply frequency	－
Maximum apparent power	－
Power consumption: Main unit	7.6 W (317 mA / 24 V) or less
Power consumption: Main unit (backlight OFF)	3.8 W (158 mA / 24 V) or less
Inrush current	17 A or less (6 ms, 25 °C, at the maximum load)
Permissible instantaneous power failure time	Within 5 ms
Noise immunity	Conforms to IEC61000-4-4, 2kV (power supply line)
Withstand voltage	350 V AC for 1 minute (across power supply terminals and earth)
Insulation resistance	500 V DC across power terminals and earth, 10 MΩ or more by an insulation resistance tester
Applicable wire	0.75 mm 2 to 2 mm 2
Applicable solderless terminal	Solderless terminal for M3 screw RAV1.25-3, V2-S3.3, V2-N3A, FV2-N3A
Applicable tightening torque (for terminal block terminal screws)	0.5 N・m to 0.8 N・m

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

GS21 General Description (IB-0800654CHNE-D)	PDF · 0.25MB
