Mitsubishi Electric FX3U-485ADP

Mitsubishi MELSEC-F (FX) Series Data link/Communication

MPN
FX3U-485ADP
Price and lead time confirmed within 1 business day

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original FX3U-485ADP (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric FX3U-485ADP?

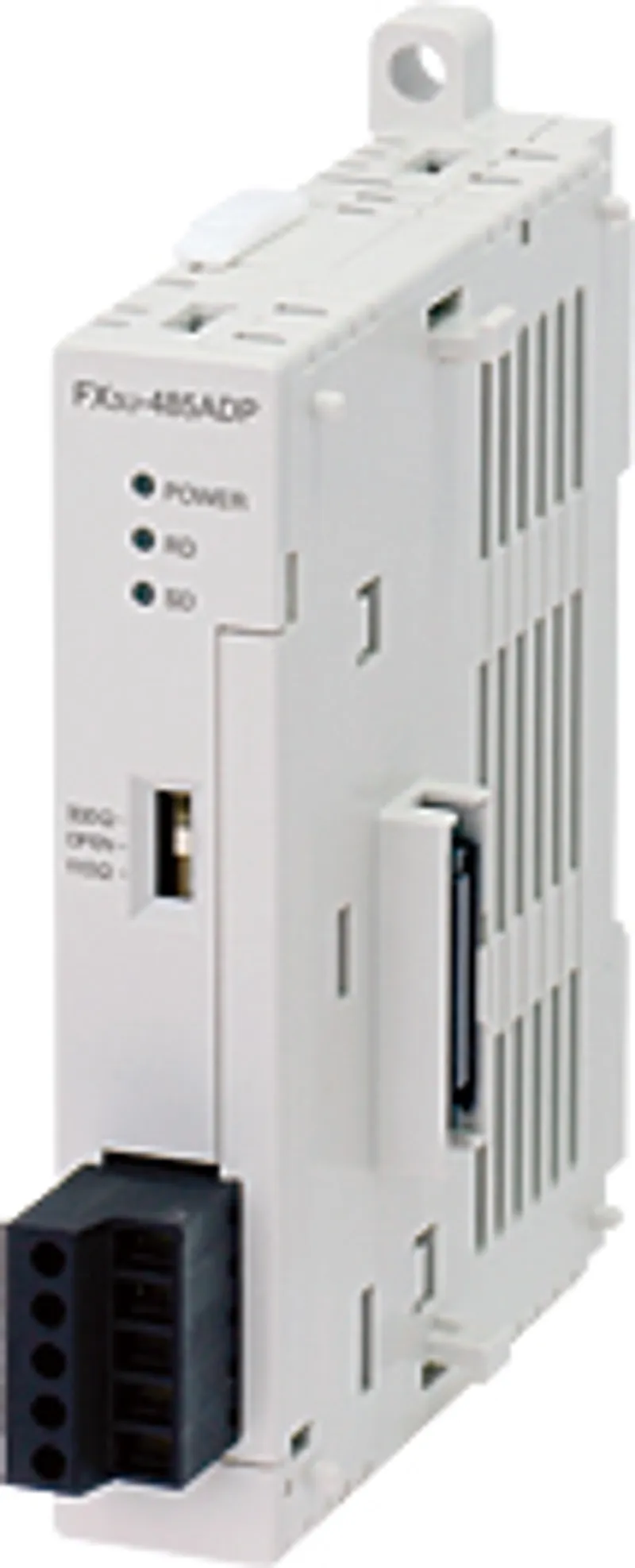

The Mitsubishi Electric FX3U-485ADP is a data link/Communication in the MELSEC-F (FX) Series. RS-485 communication. Mitsubishi Electric has discontinued it (2013/09 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-F (FX) Series
CategoryData link/Communication
Sales status2013/09 Discontinued (Mitsubishi Electric)
OutlineRS-485 communication

Specifications

Applicable PLCFX3S, FX3G, FX3U, FX3GC, FX3UC The FX3S-CNV-ADP is required to connect the FX3S PLC. The FX3G-CNV-ADP is required to connect the FX3G PLC. An expansion board is required to connect the FX3U,FX3UC-32MT-LT(-2).
Number of occupied I/O points0 point (This number is not related to the maximum number of input/output points of the PLC.)
Mass (weight)0.08 kg
Communication methodHalf-duplex, bidirectional communication
Communication speed: Non-protocol communication, Computer link300/600/1200/2400/4800/9600/19200/38400 (bps) FX3U and FX3UC support 38400bps with Ver. 2.41 or later.
Communication speed: Parallel link115200 (bps)
Communication speed: N:N Network38400 (bps)
Communication speed: Inverter communication4800/9600/19200/38400 (bps) FX3U and FX3UC support 38400bps with Ver. 2.41 or later.
Communication formatNon-Protocol Communication, Computer link (Dedicated protocol formats 1, Dedicated protocol formats 4), Parallel Link, N:N Network, Inverter Communication
Transmission standardConforming to RS-485/RS-422
Transmission distanceTotal extension distance: 500 m or less [50 m or less if FX2N-485-BD, FX1N-485-BD, FX3U-485-BD or FX3G-485-BD is installed to connected equipment]
Connection methodTerminal block for Europe
LEDRD, SD, POWER
Isolation methodPhotocoupler insulation

Power supply specifications

Power supply5 V DC 20 mA (internal power supply from PLC main unit)

Specifications

Ambient temperature0 to 55°C when operating and -25 to 75°C when stored
Ambient humidity5 to 95%RH (no condensation) when operating
Vibration resistance: Installed on DIN rail: Frequency: 10 to 57 HzHalf amplitude: 0.035 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Installed on DIN rail: Frequency: 57 to 150 HzAcceleration: 4.9 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Direct installing: Frequency: 10 to 57 HzHalf amplitude: 0.075 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Direct installing: Frequency: 57 to 150 HzAcceleration: 9.8 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Shock resistance147 m/s 2 Acceleration, Action time: 11 ms, 3 times by half-sine pulse in each direction X, Y, and Z
Noise resistanceBy noise simulator at noise voltage of 1,000 Vp-p, noise width of 1 μs, rise time of 1 ns and period of 30 to 100 Hz
Dielectric withstand voltageGeneral purpose
Insulation resistanceBetween all external terminals and ground terminal of PLC main unit: 5 MΩ or higher by 500 V DC insulation resistance tester
Working atmosphereFree from corrosive or flammable gas and excessive conductive dusts
Working altitude2000 m or less Do not use the PLC under pressure higher than the atmospheric pressure. Doing so may damage the PLC.

FX3U-485ADP: frequently asked questions

Can I still buy the FX3U-485ADP now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the FX3U-485ADP, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can FX3U-485ADP be shipped?

FX3U-485ADP is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX3U-485ADP in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX3U-485ADP and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX3U-485ADP, subject to availability and destination.
