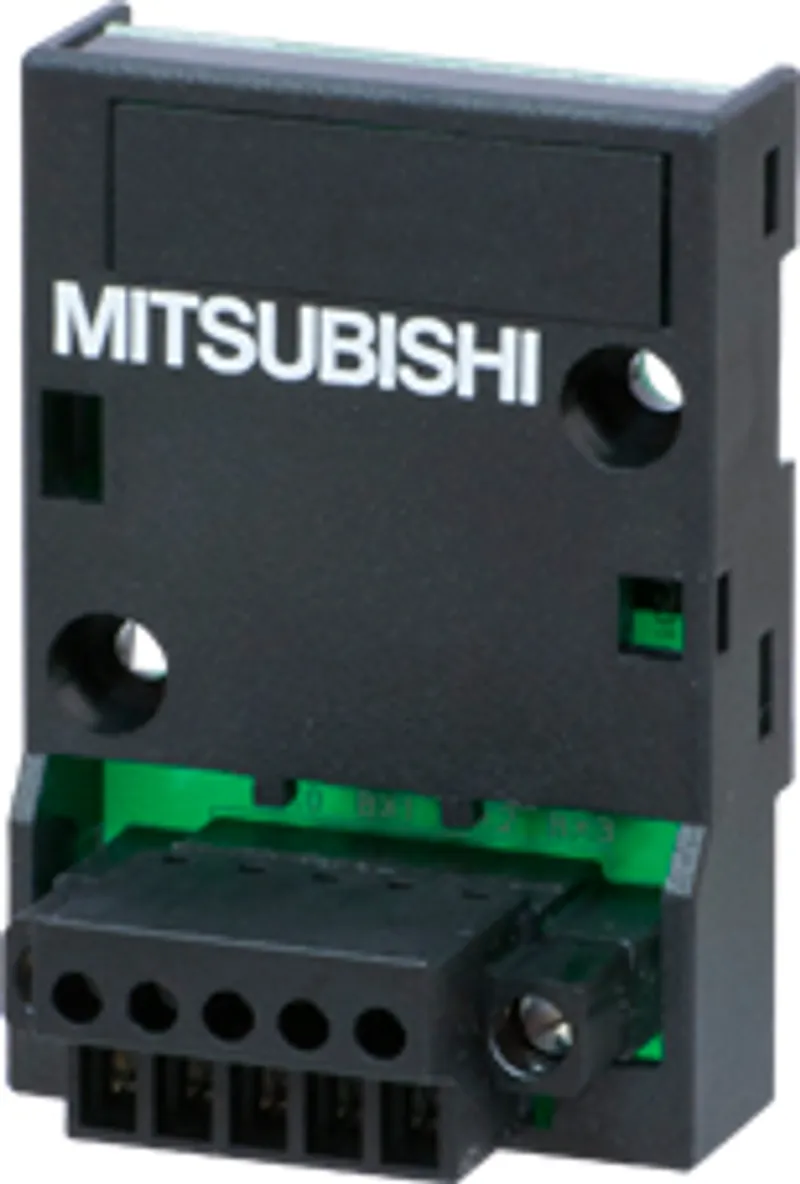

What is the Mitsubishi Electric FX3G-4EX-BD?

The Mitsubishi Electric FX3G-4EX-BD is a input/output extension in the MELSEC-F (FX) Series. Input: 4 points. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-F (FX) Series
CategoryInput/output extension
OutlineInput: 4 points

Specifications

Applicable PLCFX3S (V1.10 or later), FX3G (V2.20 or later)

Power supply specifications

Current consumption: 24 V DCSupply up to 25 mA from an external power supply.
Current consumption: 5 V DCPower is supplied from the PLC.

Input specifications

No. of input points4 points
Input connection typeTerminal block for Europe
Input typeSink/source
Input signal form: Sink inputNo-voltage contact NPN open collector transistor
Input signal form: Source inputNo-voltage contact PNP open collector transistor
Input signal voltage24 V DC +20%, -15%
Input signal current5 mA/24 V DC
Input impedance4.3 kΩ
ON input sensitivity current3.5 mA or more
OFF input sensitivity current1.5 mA or less
Input response timeApprox. 10 ms
Input circuit insulationPhotocoupler insulation
Indication of input operationLED on when photocoupler is driven.

Specifications

Ambient temperature0 to 55°C when operating and -25 to 75°C when stored
Ambient humidity5 to 95%RH (no condensation) when operating
Vibration resistance: Installed on DIN rail: Frequency: 10 to 57 HzHalf amplitude: 0.035mmnSweep Count for X, Y, Z: 10 times (80 min in each direction) The criterion is shown in IEC61131-2.
Vibration resistance: Installed on DIN rail: Frequency: 57 to 150 HzAcceleration: 4.9 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction) The criterion is shown in IEC61131-2.
Vibration resistance: Direct installing: Frequency: 10 to 57 HzHalf amplitude: 0.075 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction) The criterion is shown in IEC61131-2.
Vibration resistance: Direct installing: Frequency: 57 to 150 HzAcceleration: 9.8 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction) The criterion is shown in IEC61131-2.
Shock resistance147 m/s 2 Acceleration, Action time: 11 ms, 3 times by half-sine pulse in each direction X, Y, and Z The criterion is shown in IEC61131-2.
Noise resistanceBy noise simulator at noise voltage of 1,000 Vp-p, noise width of 1 μs, rise time of 1 ns and period of 30 to 100 Hz
Dielectric withstand voltageBetween input terminal of expansion input board and ground terminal of main unit: 500 V AC for 1 min
Insulation resistanceBetween input terminal of expansion input board and ground terminal of main unit: 5 MΩ or higher by 500 V DC insulation resistance tester
Working atmosphereFree from corrosive or flammable gas and excessive conductive dusts
Working altitude2000 m or less The PLC cannot be used at a pressure higher than the atmospheric pressure to avoid damage.
