FX3G-1DA-BD Mitsubishi MELSEC-F (FX) Series Analog

MPN: FX3G-1DA-BD · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC-F (FX) Series – Analog
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can FX3G-1DA-BD be shipped?

FX3G-1DA-BD is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX3G-1DA-BD in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX3G-1DA-BD and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX3G-1DA-BD, subject to availability and destination.

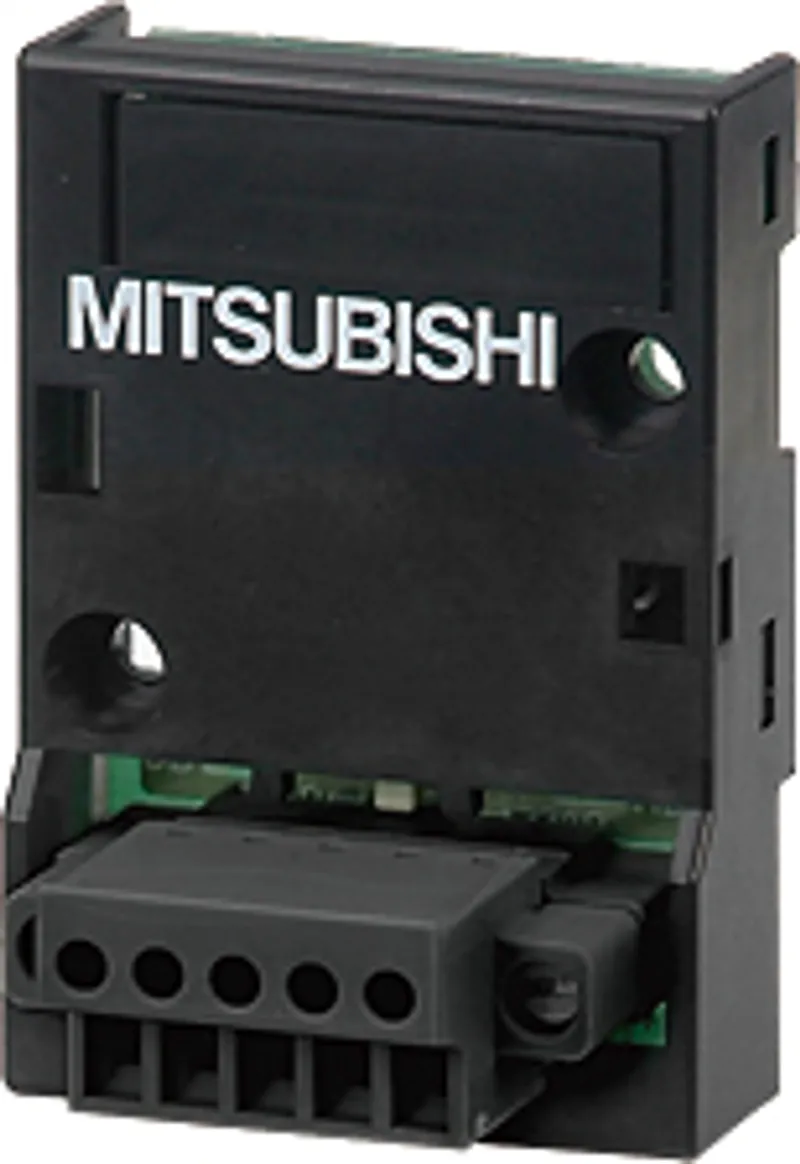

The Mitsubishi Electric FX3G-1DA-BD is a analog in the MELSEC-F (FX) Series. Analog output: 1 ch. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC-F (FX) Series
Category	Analog
Outline	Analog output: 1 ch

Specifications

Applicable PLC	FX3S, FX3G (V1.10 or later) The function expansion board cannot be used with the FX3S-CNV-ADP when the FX3S is connected.
Number of occupied I/O points	0 point (This number is not related to the maximum number of input/output points of the PLC.)
Analog output: Analog output range: Voltage output	0 V to +10 V DC (External load resistance: 2 kΩ to 1 MΩ)
Analog output: Analog output range: Current output	4 mA to 20 mA DC (External load resistance: 500 Ω or less)
Analog output: No. of output channels	1 channel
Analog output: Output characteristics	The output characteristics cannot be adjusted.
Analog output: Digital input: Voltage output	12 bits, binary
Analog output: Digital input: Current output	11 bits, binary
Analog output: Resolution: Voltage output	2.5 mV (10 V × 1/4000)
Analog output: Resolution: Current output	8 μA (16 mA × 1/2000)
Analog output: Total accuracy: Voltage output	Ambient temperature: 25°C±5°C ±0.5% (±50 mV) for 10 V full scale Ambient temperature: 0°C to 55°C ±1.0% (±100 mV) for 10 V full scale Shipment adjustment is carried out by external load resistance 2 kΩ. If external load resistance becomes larger than 2 kΩ, the output voltage will increase slightly. When the load is 1 MΩ, the output voltage is about 2% higher than the correct value.
Analog output: Total accuracy: Current output	Ambient temperature: 25°C±5°C ±0.5% (±80 μA) for 16 mA full scale Ambient temperature: 0°C to 55°C ±1.0% (±160 μA) for 16 mA full scale
Analog output: Time required for D/A conversion	60 μs (Data updated every scan time.)
Analog output: Isolation method	The channels between the analog input area and PLC are non-isolation.

Specifications

Ambient temperature	0 to 55°C when operating and -25 to 75°C when stored
Ambient humidity	5 to 95%RH (no condensation) when operating
Vibration resistance: Installed on DIN rail: Frequency: 10 to 57 Hz	Half amplitude: 0.035 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Installed on DIN rail: Frequency: 57 to 150 Hz	Acceleration: 4.9 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Direct installing: Frequency: 10 to 57 Hz	Half amplitude: 0.075 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Direct installing: Frequency: 57 to 150 Hz	Acceleration: 9.8 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Shock resistance	147 m/s 2 Acceleration, Action time: 11 ms, 3 times by half-sine pulse in each direction X, Y, and Z
Noise resistance	By noise simulator at noise voltage of 1,000 Vp-p, noise width of 1 μs, rise time of 1 ns and period of 30 to 100 Hz
Dielectric withstand voltage	The analog output area is not insulated from the PLC. (Do not perform a withstand voltage test.)
Insulation resistance	The analog input area is not insulated from the PLC. (Do not perform an insulation resistance test.)
Working atmosphere	Free from corrosive or flammable gas and excessive conductive dusts
Working altitude	2000 m or less The PLC cannot be used at a pressure higher than the atmospheric pressure to avoid damage.
