FX2NC-ROM-CE1 Mitsubishi MELSEC-F (FX) Series Data link/Communication
Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original FX2NC-ROM-CE1 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Mitsubishi MELSEC-F (FX) Series – Data link/Communication |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
Can I still buy the FX2NC-ROM-CE1 now that it is discontinued?
Yes. Mitsubishi Electric (Factory Automation) has discontinued the FX2NC-ROM-CE1, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can FX2NC-ROM-CE1 be shipped?
FX2NC-ROM-CE1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up FX2NC-ROM-CE1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for FX2NC-ROM-CE1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX2NC-ROM-CE1, subject to availability and destination.
The Mitsubishi Electric FX2NC-ROM-CE1 is a data link/Communication in the MELSEC-F (FX) Series. for FX2NC Inverter operation control (16000 steps). Mitsubishi Electric has discontinued it (2017/03 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | MELSEC-F (FX) Series |
| Category | Data link/Communication |
| Sales status | 2017/03 Discontinued (Mitsubishi Electric) |
| Outline | for FX2NC Inverter operation control (16000 steps) |
Specifications
| Applicable PLC | FX2NC (Ver. 3.00 or later Serial number 15**** or later) |
| Number of occupied I/O points | 0 point (This number is not related to the maximum number of input/output points of the PLC.) |
| System memory | FNC.180 (EXTR) instruction K0 and K10 to K13 functions are equipped. K0: NTT DoCoMo short mail send function K10: Inverter operation monitoring K11: Inverter operation control K12: Read of inverter parameter K13: Write of inverter parameter |
| User program memory | Memory capacity: 16k steps (can be set to 2k, 4k or 8k steps also) Memory type: EEPROM Allowable number of write: Approx. 10k times (memory protect switch provided) |
| Clock function | ・Year 1980 to 2079 ・Year display in 2 or 4 digits ・Monthly difference of ±45 sec. (at 25°C) |
Specifications
| Ambient temperature | 0 to 55°C when operating and -20 to 70°C when stored |
| Ambient humidity | 35 to 85%RH (no condensation) when operating |
| Vibration resistance: Installed on DIN rail: Frequency: 10 to 57 Hz | Half amplitude: 0.035 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction) |
| Vibration resistance: Installed on DIN rail: Frequency: 57 to 150 Hz | Acceleration: 4.9 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction) |
| Shock resistance | 147 m/s 2 Acceleration, Action time: 11 ms, 3 times by half-sine pulse in each direction X, Y, and Z |
| Noise resistance | By noise simulator at noise voltage of 1,000 Vp-p, noise width of 1 μs, rise time of 1 ns and period of 30 to 100 Hz |
| Working atmosphere | Free from corrosive or flammable gas and excessive conductive dusts |
| Working altitude | 2000 m or less The PLC cannot be used at a pressure higher than the atmospheric pressure to avoid damage. |
More Mitsubishi Electric (Factory Automation) parts

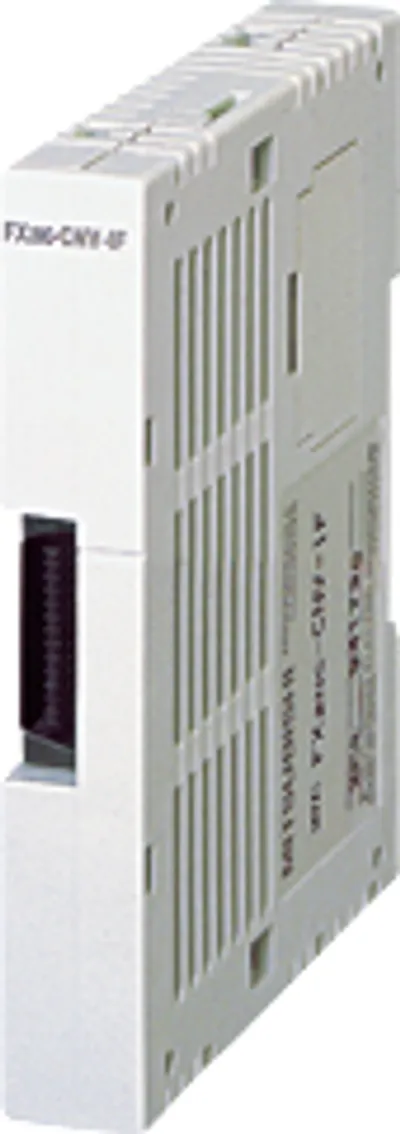

Available on requestFX2NC-CNV-IF Mitsubishi MELSEC-F (FX) Series Option/Training

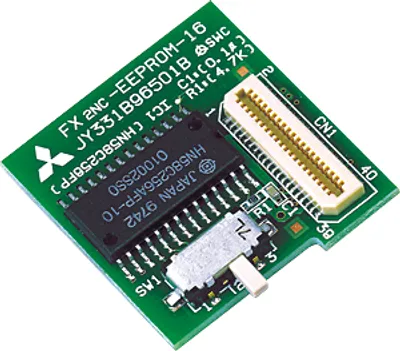

Available on requestFX2NC-EEPROM-16 Mitsubishi MELSEC-F (FX) Series Option/Training

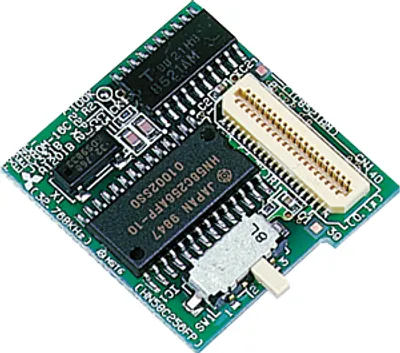

Available on requestFX2NC-EEPROM-4C Mitsubishi MELSEC-F (FX) Series Option/TrainingAvailable on requestFX2NC-EEPROM16C Mitsubishi MELSEC-F (FX) Series Option/Training

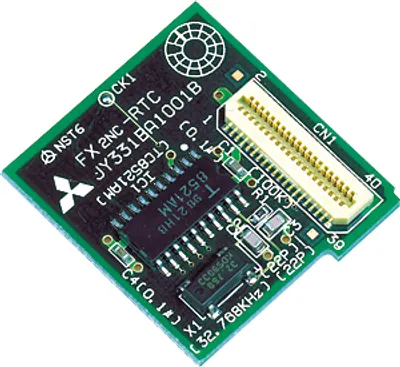

Available on requestFX2NC-RTC Mitsubishi MELSEC-F (FX) Series Option/Training
