Home / Mitsubishi Electric (Factory Automation) / Mitsubishi MELSEC-F (FX) Series – Input/output extension / FX2NC-32EYT-D/UL Mitsubishi MELSEC-F (FX) Series Input/output extension

Available on request

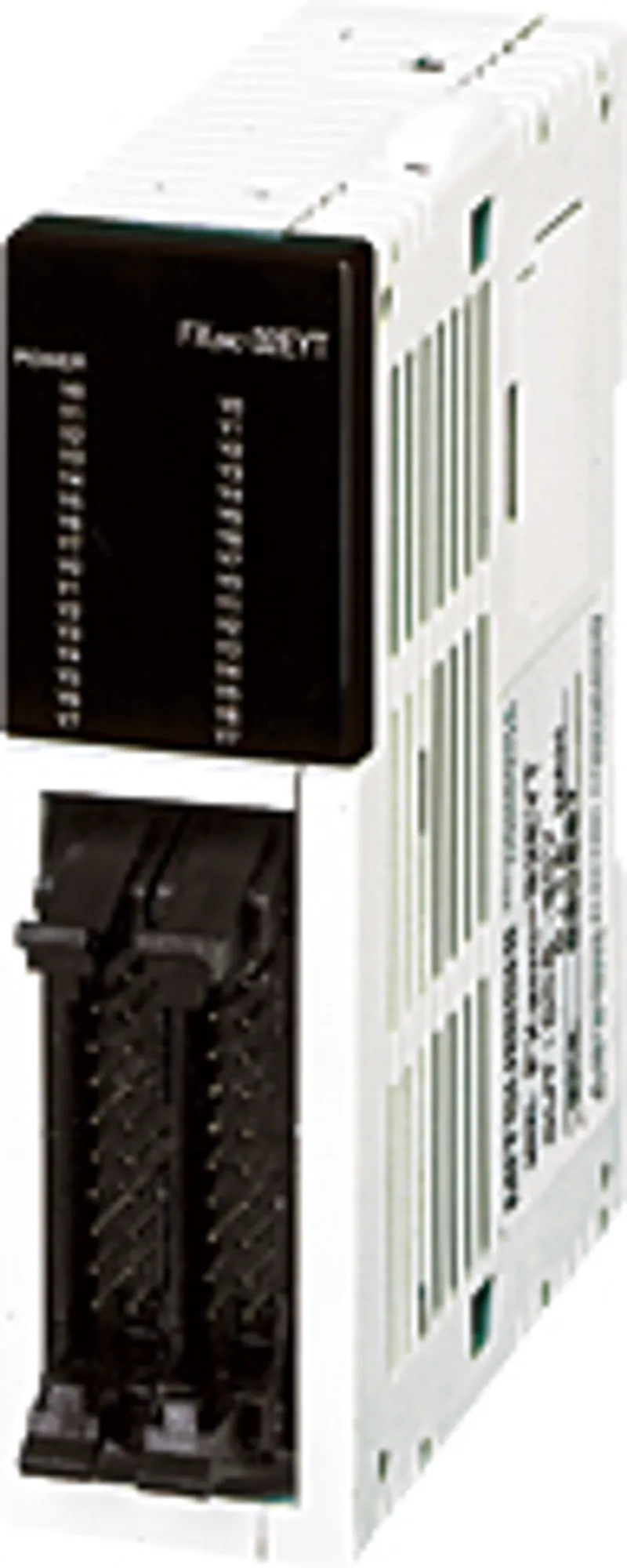

FX2NC-32EYT-D/UL Mitsubishi MELSEC-F (FX) Series Input/output extension

MPN: FX2NC-32EYT-D/UL · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC-F (FX) Series – Input/output extension
Lifecycle	Active mature
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can FX2NC-32EYT-D/UL be shipped?

FX2NC-32EYT-D/UL is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX2NC-32EYT-D/UL in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX2NC-32EYT-D/UL and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX2NC-32EYT-D/UL, subject to availability and destination.

The Mitsubishi Electric FX2NC-32EYT-D/UL is a input/output extension in the MELSEC-F (FX) Series. Output: 32 points. Mitsubishi Electric has announced its discontinuation (2028/03 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC-F (FX) Series
Category	Input/output extension
Sales status	2028/03 To be end of order (Mitsubishi Electric)
Outline	Output: 32 points

Specifications

Applicable PLC	FX1NC, FX3GC, FX2NC, FX3UC
Mass (weight)	0.2 kg

Power supply specifications

Rated voltage

PLC internal power

Output specifications

Power consumption	0.7 W
No. of output points	32 points
Output connection type	Connector
Output type	Transistor/sink output
External power supply	5 V to 30 V DC
Max. load: Resistance load	0.1 A/1 point Make sure that the total load current of 8 resistance load points is 0.8 A or less.
Max. load: Inductive load	2.4 W/1 point(24 V DC)
Open circuit leakage current	0.1 mA or less/30 V DC
ON voltage	1.5 V or less
Response time: OFF→ON	0.2 ms or less/100 mA
Response time: ON→OFF	0.2 ms or less/100 mA
Insulation of circuit	Photocoupler insulation
Indication of output operation	LED on panel lights when photocoupler is driven.

Specifications

Ambient temperature	0 to 55°C when operating and -20 to 70°C when stored
Ambient humidity	35 to 85%RH (no condensation) when operating
Vibration resistance: Installed on DIN rail: Frequency: 10 to 57 Hz	Half amplitude: 0.035mmnSweep Count for X, Y, Z: 10 times (80 min in each direction) The criterion is shown in IEC61131-2.
Vibration resistance: Installed on DIN rail: Frequency: 57 to 150 Hz	Acceleration: 4.9 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction) The criterion is shown in IEC61131-2.
Shock resistance	147 m/s 2 Acceleration, Action time: 11 ms, 3 times by half-sine pulse in each direction X, Y, and Z The criterion is shown in IEC61131-2.
Noise resistance	By noise simulator at noise voltage of 1,000 Vp-p, noise width of 1 μs, rise time of 1 ns and period of 30 to 100 Hz
Dielectric withstand voltage	Between output terminal (transistor) of extension output block and ground terminal: 500 V AC for 1 min
Insulation resistance	Between output terminal (transistor) of extension output block and ground terminal: 5 MΩ or higher by 500 V DC insulation resistance tester
Working atmosphere	Free from corrosive or flammable gas and excessive conductive dusts
Working altitude	2000 m or less Do not use the PLC under pressure higher than the atmospheric pressure. Doing so may damage the PLC.
