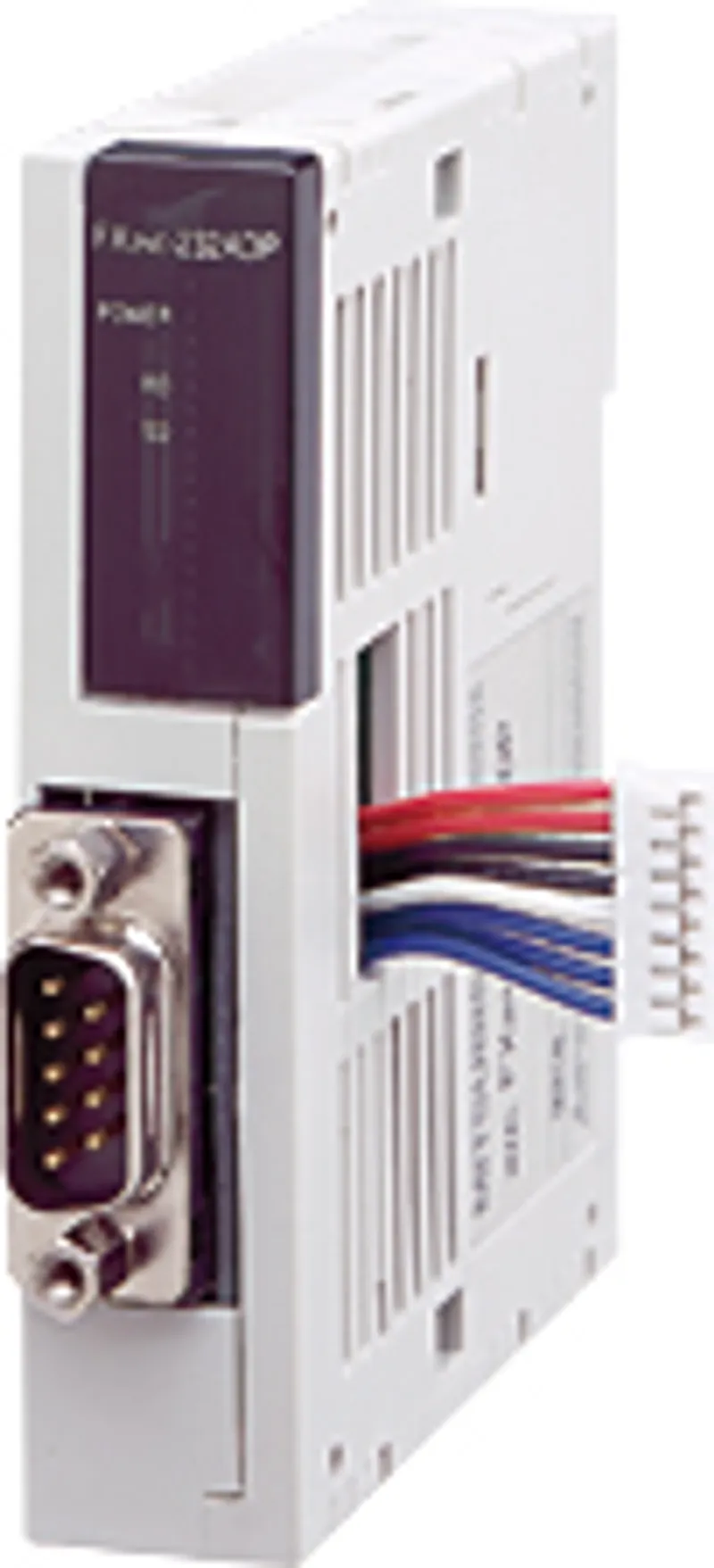

FX2NC-232ADP Mitsubishi MELSEC-F (FX) Series Data link/Communication
Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original FX2NC-232ADP (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Mitsubishi MELSEC-F (FX) Series – Data link/Communication |
| Lifecycle | Discontinued |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
Can I still buy the FX2NC-232ADP now that it is discontinued?
Yes. Mitsubishi Electric (Factory Automation) has discontinued the FX2NC-232ADP, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can FX2NC-232ADP be shipped?
FX2NC-232ADP is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up FX2NC-232ADP in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for FX2NC-232ADP and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX2NC-232ADP, subject to availability and destination.
The Mitsubishi Electric FX2NC-232ADP is a data link/Communication in the MELSEC-F (FX) Series. RS-232C communication. Mitsubishi Electric has discontinued it (2015/12 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | MELSEC-F (FX) Series |
| Category | Data link/Communication |
| Sales status | 2015/12 Discontinued (Mitsubishi Electric) |
| Outline | RS-232C communication |
Specifications
| Applicable PLC | FX1S, FX1N, FX2N, FX1NC, FX2NC The FX1N-CNV-BD is required to connect the FX1S, FX1N. The FX2N-CNV-BD is required to connect the FX2N. |
| Number of occupied I/O points | 0 point (This number is not related to the maximum number of input/output points of the PLC.) |
| Mass (weight) | 0.1 kg |
| Communication method: When FX1S/FX1N/FX1NC connected | Half-duplex, bidirectional communication |
| Communication method: When FX2NC connected | Full-duplex |
| Communication method: Connected to FX2N (Earlier than Ver. 2.00) | Half-duplex, bidirectional communication |
| Communication method: Connected to FX2N (Ver. 2.00 or later) | Full-duplex |
| Communication speed: Non-protocol communication, Computer link | 300/600/1200/2400/4800/9600/19200 (bps) |
| Communication speed: Programming communication | 9600/19200 (bps) |
| Communication format | Non-protocol communication, Computer link (Dedicated protocol formats 1, Dedicated protocol formats 4), Programming communication |
| Transmission standard | RS-232C standard |
| Transmission distance | 15 m maximum |
| Connection method | 9-pin D-Sub connector (male) |
| LED | RD, SD, POWER |
| Isolation method | Photocoupler insulation |
Power supply specifications
| Power supply | 5 V DC 100 mA (internal power supply from PLC main unit) |
Specifications
| Ambient temperature | 0 to 55°C (32 to 131°F) when operating and -20 to 70°C (-4 to 158°F) when stored |
| Ambient humidity | 35 to 85%RH (no condensation) when operating |
| Vibration resistance: Installed on DIN rail: Frequency: 10 to 57 Hz | Half amplitude: 0.035 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction) |
| Vibration resistance: Installed on DIN rail: Frequency: 57 to 150 Hz | Acceleration: 4.9 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction) |
| Vibration resistance: Direct installing: Frequency: 10 to 57 Hz | Half amplitude: 0.075 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction) |
| Vibration resistance: Direct installing: Frequency: 57 to 150 Hz | Acceleration: 9.8 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction) |
| Shock resistance | 147 m/s 2 Acceleration, Action time: 11 ms, 3 times by half-sine pulse in each direction X, Y, and Z |
| Noise resistance | By noise simulator at noise voltage of 1,000 Vp-p, noise width of 1 μs, rise time of 1 ns and period of 30 to 100 Hz |
| Dielectric withstand voltage | Between 9-pin D-Sub connector and ground terminal of main unit: 500 V AC for 1 min |
| Insulation resistance | Between 9-pin D-Sub connector and ground terminal of main unit: 5 MΩ or higher by 500 V DC insulation resistance tester |
| Working atmosphere | Free from corrosive or flammable gas and excessive conductive dusts |
| Working altitude | 2000 m or less Do not use the PLC under pressure higher than the atmospheric pressure. Doing so may damage the PLC. |
More Mitsubishi Electric (Factory Automation) parts
Available on requestFX2NC-16MT Mitsubishi MELSEC-F (FX) Series Main unit
Available on requestFX2NC-16MT-D/UL Mitsubishi MELSEC-F (FX) Series Main unit
Available on requestFX2NC-16MT-DSS Mitsubishi MELSEC-F (FX) Series Main unit
Available on requestFX2NC-1HC Mitsubishi MELSEC-F (FX) Series High-speed counter

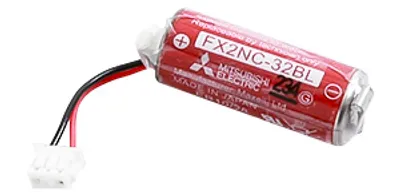

Available on requestFX2NC-32BL Mitsubishi MELSEC-F (FX) Series Option/Training
