FX2N-ROM-E1 Mitsubishi MELSEC-F (FX) Series Data link/Communication

MPN: FX2N-ROM-E1 · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original FX2N-ROM-E1 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC-F (FX) Series – Data link/Communication
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the FX2N-ROM-E1 now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the FX2N-ROM-E1, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can FX2N-ROM-E1 be shipped?

FX2N-ROM-E1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX2N-ROM-E1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX2N-ROM-E1 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX2N-ROM-E1, subject to availability and destination.

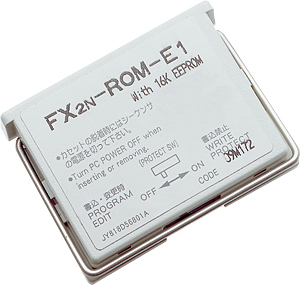

The Mitsubishi Electric FX2N-ROM-E1 is a data link/Communication in the MELSEC-F (FX) Series. for FX2N Inverter operation control (16000 steps). Mitsubishi Electric has discontinued it (2017/03 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC-F (FX) Series
Category	Data link/Communication
Sales status	2017/03 Discontinued (Mitsubishi Electric)
Outline	for FX2N Inverter operation control (16000 steps)

Specifications

Applicable PLC	FX2N (Ver. 3.00 or later Serial number 15**** or later)
Number of occupied I/O points	0 point (This number is not related to the maximum number of input/output points of the PLC.)
System memory	FNC.180 (EXTR) instruction K0 and K10 to K13 functions are equipped. K0: NTT DoCoMo short mail send function K10: Inverter operation monitoring K11: Inverter operation control K12: Read of inverter parameter K13: Write of inverter parameter
User program memory	Memory capacity: 16k steps (can be set to 2k, 4k or 8k steps also) Memory type: EEPROM Allowable number of write: Approx. 10k times (memory protect switch provided)
Clock function	Not provided (clock is built in FX2N PLC)

Specifications

Ambient temperature	0 to 55°C when operating and -20 to 70°C when stored
Ambient humidity	35 to 85%RH (no condensation) when operating
Vibration resistance: Installed on DIN rail: Frequency: 10 to 57 Hz	Half amplitude: 0.035 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Installed on DIN rail: Frequency: 57 to 150 Hz	Acceleration: 4.9 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Direct installing: Frequency: 10 to 57 Hz	Half amplitude: 0.075 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Direct installing: Frequency: 57 to 150 Hz	Acceleration: 9.8 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Shock resistance	147 m/s 2 Acceleration, Action time: 11 ms, 3 times by half-sine pulse in each direction X, Y, and Z
Noise resistance	By noise simulator at noise voltage of 1,000 Vp-p, noise width of 1 μs, rise time of 1 ns and period of 30 to 100 Hz
Working atmosphere	Free from corrosive or flammable gas and excessive conductive dusts
Working altitude	2000 m or less The PLC cannot be used at a pressure higher than the atmospheric pressure to avoid damage.
