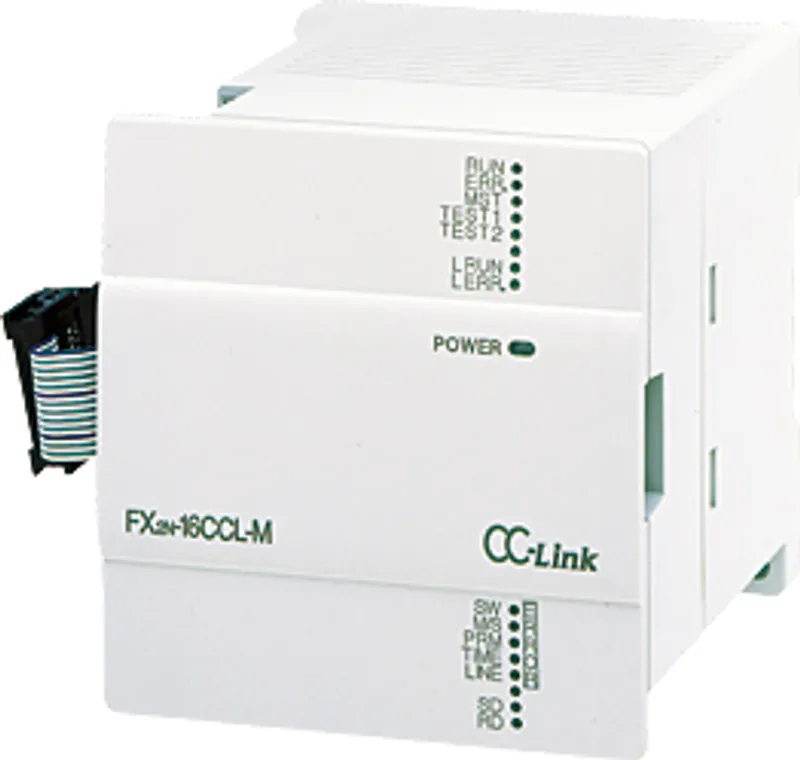

The Mitsubishi Electric FX2N-16CCL-M is a data link/Communication in the MELSEC-F (FX) Series. Manager station for CC-Link. Mitsubishi Electric has discontinued it (2012/09 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC-F (FX) Series
Category	Data link/Communication
Sales status	2012/09 Discontinued (Mitsubishi Electric)
Outline	Manager station for CC-Link

Specifications

CC-Link version	Ver. 1.10
Applicable PLC	FX1N, FX2N (V 2.20 or later), FX3G, FX3U, FX2NC (V 2.20 or later) and FX3UC Series PLC The FX2N-32ASI-M cannot be used at the same time with the FX3U-16CCL-M and/or the FX2N-16CCL-M. The FX3U-16CCL-M cannot be used at the same time with the FX2N-16CCL-M. [Connecting to the connector-type PLC] The FX2NC-CNV-IF is required to connect the FX1NC, FX2NC. The FX2NC-CNV-IF or FX3UC-1PS-5V is required to
Number of occupied I/O points	8 points (Taken from either the input or output points of the PLC.)
Mass (weight)	0.4 kg
Communication method	Polling method
Network topology	Bus (RS-485)
Transmission speed	Selectable (by rotary switch) among 156 kbps, 625 kbps, 2.5 Mbps, 5 Mbps and 10 Mbps
Transmission format	HDLC compliant
Synchronization method	Frame synchronization method
Encoding method	NRZI method
Error control system	CRC (X 16 + X 12 + X 5 + 1)
Station type	Manager station function (The local station and standby manager station functions are not provided.)
Station number	0 (set by rotary switch)
Maximum total cable length (maximum transmission distance)	1,200 m maximum Varies depending on the transmission speed.
Maximum number of connected modules: Remote I/O stations	7 maximum (Each station occupies 32 I/O points of the PLC.)
Maximum number of connected modules: Remote device stations	8 maximum (The following condition must be satisfied.) {(1 × a) + (2 × b) + (3 × c) + (4 × d)} ≤ 8 a: Number of remote device stations occupying 1 station b: Number of remote device stations occupying 2 stations c: Number of remote device stations occupying 3 stations d: Number of remote device stations occupying 4 stations
Maximum number of connected modules: Remote I/O stations + Remote device stations	15 maximum "Maximum number of I/O points per system" shall be satisfied.
Maximum number of I/O points per system: FX1N, FX1NC Series PLC	(Actual number of PLC I/O points) + (Number of points occupied by special function blocks) + (Number of points occupied by FX2N-16CCL-M: 8) + (32 × Number of remote I/O modules) ≤ 128
Maximum number of I/O points per system: FX2N, FX2NC, FX3UC (Ver. 2.20 or less) Series PLC	(Actual number of PLC I/O points) + (Number of points occupied by special function blocks) + (Number of points occupied by FX2N-16CCL-M: 8) + (32 × Number of remote I/O modules) ≤ 256
Maximum number of I/O points per system: FX3U, FX3UC (Ver. 2.20 or later) Series PLC	(1) (Actual number of PLC I/O points) + (Number of points occupied by special function blocks) + (Number of points occupied by FX2N-16CCL-M: 8) ≤ 256 (2) (32 × Number of remote I/O modules) ≤ 224 (1) + (2) total number of points ≤ 384
Maximum number of I/O points per system: FX3G Series PLC	(1) (Actual number of PLC I/O points) + (Number of points occupied by special function blocks) + (Number of points occupied by FX2N-16CCL-M: 8) ≤ 128 (2) (32 × Number of remote I/O modules) ≤ 128 (1) + (2) total number of points ≤ 256
Number of link points per station: Remote I/O stations	Remote I/O = 32/32 (RX/RY) points
Number of link points per station: Remote device stations	Remote I/O = 32/32 (RX/RY) points Remote register = 4 (RWw) points (manager station→remote device station) Remote register = 4 (RWr) points (remote device station→manager station)
Connection cable	CC-Link dedicated cable, CC-Link dedicated high-performance cable CC-Link dedicated cables and CC-Link dedicated high-performance cables cannot be used at the same time. Only either type of cables are available. Attach a terminal resistor in accordance with the cable type.
RAS function	・Automatic return function ・Slave station cut-off function ・Error detection by link special relay/register
Number of times of parameter registration to EEPROM	Approximately 10,000 times
Communication with PLC	By FROM and TO instructions via the buffer memory
LED	RUN, ERR., MST, TEST1, TEST2, L RUN, L ERR., POWER, ERR (SW, M/S, PRM, TIME, LINE), SD, RD

Power supply specifications

Power supply	5 V DC internal power supply: 5 V DC of PLC is not used. (5 V DC is changed from 24 V DC external power supply.) 24 V DC external power supply: Supplied from external terminal block.
Current consumption	24 V DC external power supply: 150 mA

Specifications

Ambient temperature	0 to 55°C (32 to 131 °F) when operating and -25 to 75°C (-13 to 167 °F) when stored
Ambient humidity	5 to 95%RH (no condensation) when operating
Vibration resistance: Installed on DIN rail: Frequency: 10 to 57 Hz	Half amplitude: 0.035 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Installed on DIN rail: Frequency: 57 to 150 Hz	Acceleration: 4.9 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Direct installing: Frequency: 10 to 57 Hz	Half amplitude: 0.075 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Direct installing: Frequency: 57 to 150 Hz	Acceleration: 9.8 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Shock resistance	147 m/s 2 Acceleration, Action time: 11 ms, 3 times by half-sine pulse in each direction X, Y, and Z
Noise resistance	By noise simulator at noise voltage of 1,000 Vp-p, noise width of 1 μs, rise time of 1 ns and period of 30 to 100 Hz
Dielectric withstand voltage	Between the case and the PLC ground: 500 V AC for 1 min
Insulation resistance	Between the case and the PLC ground: 5 MΩ or higher by 500 V DC insulation resistance tester
Grounding	Class D grounding (grounding resistance: 100 Ω or less) (Common grounding with a heavy electrical system is not allowed) Ground the PLC independently or jointly.
Working atmosphere	Free from corrosive or flammable gas and excessive conductive dusts
Working altitude	2000 m or less Do not use the PLC under pressure higher than the atmospheric pressure. Doing so may damage the PLC.
